BF115 DK1 LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) POWER TRIM-TILT Parts Diagram

Marine Engine, Made in Japan

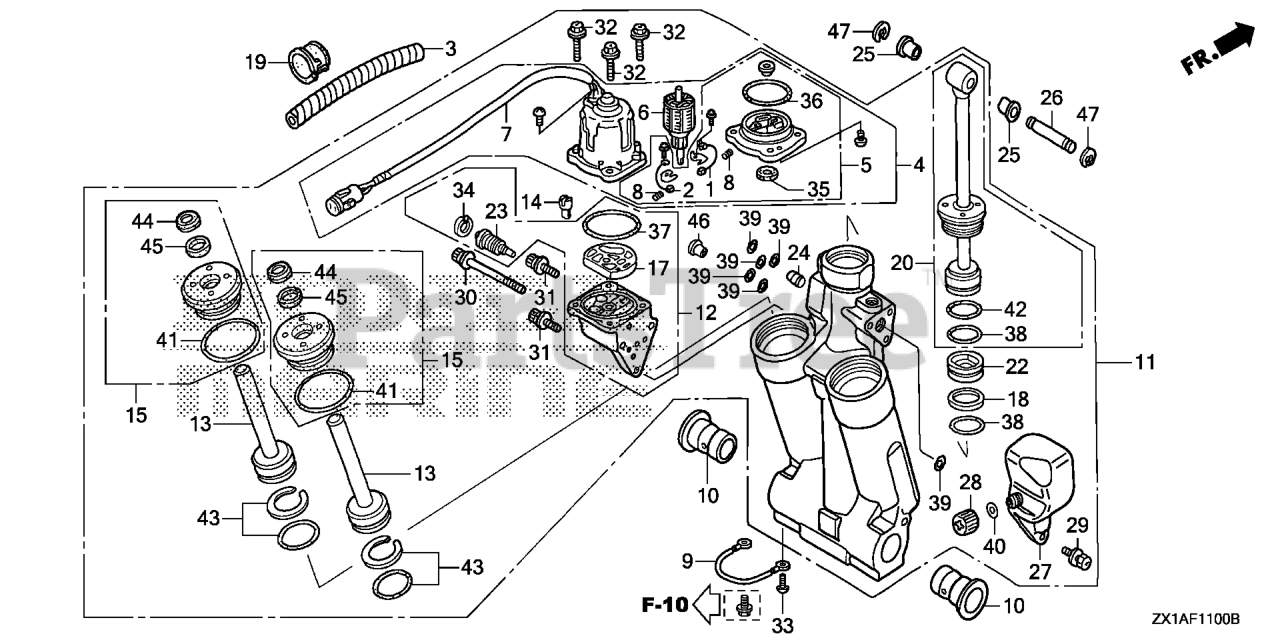

POWER TRIM-TILT Parts Diagram

  • Title

1

Honda 30280-ZX2-003

SEE PART DETAILS - PRI; BREAKER ASSY.
(Superseded to 30280-ZX2-013)

$44.99

$

Usually ships in 3-6 days

0

2

Honda 31106-ZX2-003

BRUSH ASSY.
(Superseded to 31106-ZX2-013)

Note: Use from Frame SN 1104156.

$56.99

$

Usually ships in 3-6 days

0

2

Honda 31106-ZY3-003

BRUSH ASSY.

Note: Use up to Frame SN 1104155.

$46.99

$

Usually ships in 3-6 days

0

3

Honda 36104-ZV5-821

TUBE, SPIRAL

$8.99

$

Usually ships in 3-6 days

0

4

Honda 36120-ZY6-023

SEE PART DETAILS - PRI; MOTOR ASSY., POWER TILT

$747.99

$

Usually ships in 3-6 days

0

5

Honda 36122-ZX2-013

BRACKET ASSY.
(Superseded to 36122-ZX2-023)

$492.99

$

Usually ships in 3-6 days

0

6

Honda 36123-ZY3-013

ARMATURE

$223.99

$

Usually ships in 3-6 days

0

7

Honda 36129-ZY6-013

YOKE ASSY.

$405.99

$

Usually ships in 3-6 days

0

8

Honda 36136-ZV5-821

SPRING, MOTOR

$10.99

$

Usually ships in 3-6 days

0

9

Honda 40219-ZY3-023

WIRE, LEAD (1.5X116MM)

$12.99

$

Usually ships in 3-6 days

0

10

Honda 50214-ZV5-003

BUSH, SWIVEL CASE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 56000-ZY6-043

TRIM-TILT, POWER
(Superseded to 56000-ZY6-083)

Note: Use up to Frame SN 1104155. Use up to Frame SN 1100852.

$2836.99

$

Usually ships in 3-6 days

0

11

Honda 56000-ZY6-073

TRIM-TILT ASSY., POWER
(Superseded to 56000-ZY6-083)

Note: Use up to Frame SN 1100852.

$2836.99

$

Usually ships in 3-6 days

0

12

Honda 56100-ZY6-023

PUMP ASSY.

Note: Use up to Frame SN 1100852.

$1295.99

$

Usually ships in 3-6 days

0

13

Honda 56110-ZW1-701

ROD, PISTON (B)

$166.99

$

Usually ships in 3-6 days

0

14

Honda 56113-ZW1-701

JOINT, DRIVE

$23.99

$

Usually ships in 3-6 days

0

15

Honda 56115-ZW1-315

SEE PART DETAILS - PRI; GUIDE, ROD

$113.99

$

Usually ships in 3-6 days

0

15

Honda 56115-ZY9-023

SEE PART DETAILS - PRI; GUIDE, ROD

$140.99

$

Usually ships in 3-6 days

0

16

Honda 56115-ZY9-023

SEE PART DETAILS - PRI; GUIDE, ROD

$140.99

$

Usually ships in 3-6 days

0

17

Honda 56116-ZW1-701

FILTER (B)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 56117-ZV5-821

RING, BACK-UP

$11.99

$

In Stock, only 1 left!

0

19

Honda 56118-ZV5-820

BUSH, MOTOR CODE

$12.99

$

Usually ships in 3-6 days

0

20

Honda 56120-ZW1-305

ROD, PISTON

$536.99

$

Usually ships in 3-6 days

0

20

Honda 56120-ZY9-003

SEE PART DETAILS - PRI; ROD, PISTON
(Superseded to 56120-ZY9-013)

Note: Use up to Frame SN 1104797.

$617.99

$

Usually ships in 3-6 days

0

20

Honda 56120-ZY9-013

SEE PART DETAILS - PRI; ROD, PISTON

$617.99

$

Usually ships in 3-6 days

0

21

Honda 56120-ZY9-003

SEE PART DETAILS - PRI; ROD, PISTON
(Superseded to 56120-ZY9-013)

$617.99

$

Usually ships in 3-6 days

0

21

Honda 56120-ZY9-013

SEE PART DETAILS - PRI; ROD, PISTON

$617.99

$

Usually ships in 3-6 days

0

22

Honda 56130-ZW1-702

PISTON, FREE

$90.99

$

Usually ships in 3-6 days

0

23

Honda 56170-ZY3-023

VALVE, MANUAL

$144.99

$

Usually ships in 3-6 days

0

25

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 56532-ZZ0-C00

SEE PART DETAILS - PRI; PIN, CYLINDER (UPPER)

$32.99

$

Usually ships in 3-6 days

0

27

Honda 56851-ZW1-703

SEE PART DETAILS - PRI; TANK, OIL

$26.99

$

Usually ships in 3-6 days

0

28

Honda 56860-ZW1-701

CAP, OIL TANK

$18.99

$

Usually ships in 3-6 days

0

29

Honda 90113-ZW1-702

SEE PART DETAILS - PRI; BOLT, RECESSED

$4.49

$

Usually ships in 3-6 days

0

31

Honda 90115-ZW1-702

SEE PART DETAILS - PRI; BOLT B, SOCKET

$15.99

$

Usually ships in 3-6 days

0

32

Honda 90116-ZW1-702

BOLT, HEX.

$7.49

$

Usually ships in 3-6 days

0

33

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90652-ZW1-702

SEE PART DETAILS - PRI; CIRCLIP (INNER)

$9.49

$

Usually ships in 3-6 days

0

35

Honda 91203-ZV5-821

OIL SEAL

$43.99

$

Usually ships in 3-6 days

0

36

Honda 91207-ZW1-013

SEE PART DETAILS - PRI; O-RING (2.0X70.5)

$8.49

$

Usually ships in 3-6 days

0

37

Honda 91302-ZV5-821

O-RING (1.8X69.6)

$7.49

$

Usually ships in 3-6 days

0

38

Honda 91316-ZV5-821

O-RING (3.5X38.7)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 91352-ZX2-003

O-RING (1.68X7.25)

$3.49

$

Usually ships in 3-6 days

0

40

Honda 91353-ZW1-703

SEE PART DETAILS - PRI; O-RING (1.9X11)

$8.49

$

Usually ships in 3-6 days

0

41

Honda 91354-ZW1-701

O-RING (3.5X35.7)

$11.99

$

In Stock, only 2 left!

0

42

Honda 91355-ZW1-701

O-RING (3.5X41.7)

$18.99

$

Usually ships in 3-6 days

0

43

Honda 91357-ZW1-701

O-RING SET (3.5X31.7)

$16.99

$

In Stock, only 2 left!

0

44

Honda 91358-ZW1-701

SEAL, WATER

Note: Use up to Frame SN 1104797.

$11.99

$

In Stock, only 2 left!

0

44

Honda 91358-ZX2-003

SEAL, WATER

Note: Use from Frame SN 1104798.

$8.99

$

Usually ships in 3-6 days

0

45

Honda 91361-ZW1-701

GASKET

$9.49

$

In Stock, only 2 left!

0

47

Honda 94540-15029

E-RING (15MM)

$11.99

$

Usually ships in 3-6 days

0
