BF115 DK1 LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

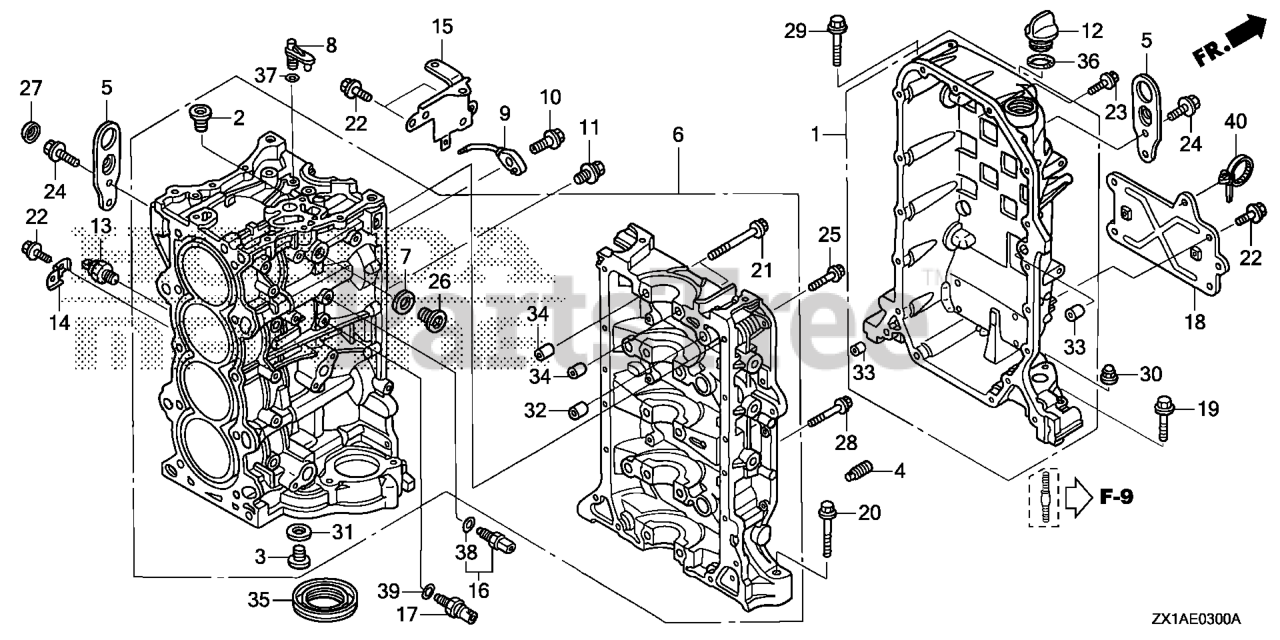

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11100-ZY6-405

SEE PART DETAILS - PRI; CRANKCASE

$587.99

$

Usually ships in 3-6 days

0

2

Honda 11106-PNA-300

BOLT, SEALING (20MM)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 11106-ZY6-000

BOLT, SEALING (20MM)

$9.99

$

Usually ships in 3-6 days

0

3

Honda 11106-PR4-013

BOLT, SEALING (28MM)

$21.99

$

Usually ships in 3-6 days

0

4

Honda 11135-PNA-000

ORIFICE, BLOCK (LOWER)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 11911-ZY6-000

HANGER, ENGINE

$30.99

$

Usually ships in 3-6 days

0

6

Honda 12000-ZY6-415ZA

SEE PART DETAILS - PRI; BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$3935.99

$

Usually ships in 3-6 days

0

6

Honda 12000-ZY6-435ZA

BLOCK ASSY. *NH8*

$4216.99

$

Usually ships in 3-6 days

0

6

Honda 12000-ZY6-445ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$3459.99

$

Usually ships in 3-6 days

0

7

Honda 12214-ZV5-000

SEE PART DETAILS - PRI; WASHER, SEALING (22MM)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 15152-ZY6-000

ORIFICE, OIL JET

$28.99

$

Usually ships in 3-6 days

0

9

Honda 15280-PRB-A00

BODY, OIL JET

$35.99

$

Usually ships in 3-6 days

0

10

Honda 15290-PRA-000

BOLT, OIL JET

$46.99

$

Usually ships in 3-6 days

0

11

Honda 15299-ZY6-000

BOLT-WASHER (8X10)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$14.99

$

Usually ships in 3-6 days

0

13

Honda 30530-ZY6-003

SENSOR ASSY., KNOCK

$117.99

$

Usually ships in 3-6 days

0

14

Honda 32114-ZVL-000

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

14

Honda 32114-ZW9-730

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

15

Honda 32114-ZY6-010

BRACKET D, HARNESS CLIP

$26.99

$

Usually ships in 3-6 days

0

16

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$31.99

$

In Stock, only 1 left!

0

17

Honda 37260-RNA-A01

SENSOR, OIL PRESSURE

$457.99

$

Usually ships in 3-6 days

0

18

Honda 38552-ZY6-000

BRACKET, RELAY

$35.99

$

Usually ships in 3-6 days

0

19

Honda 90001-ZY6-000

BOLT, FLANGE (8X55)
(Superseded to 90010-ZVL-010)

Note: Use up to Engine SN 1012494.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90010-ZVL-010

BOLT, FLANGE (8X55)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90005-ZY6-000

BOLT, FLANGE (12X83)
(Superseded to 90005-ZY6-030)

Note: Use up to Engine SN 1012494.

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90005-ZY6-030

BOLT, FLANGE (12X83)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90006-PNA-003

BOLT-WASHER (11X95)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

Note: Use up to Engine SN 1012494.

$2.49

$

In Stock, only 1 left!

0

22

Honda 90011-ZZ5-M01

BOLT, FLANGE (6X14) (CT200)

Note: Use from Engine SN 1012495.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90014-ZZ5-M01

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90026-ZY3-000

BOLT, FLANGE (8X20)
(Superseded to 90026-ZY9-M01)

Note: Use up to Engine SN 1012494.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90026-ZY9-M01

BOLT, FLANGE (8X20)

Note: Use from Engine SN 1012495.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90054-ZY3-000

BOLT, FLANGE (8X35)
(Superseded to 90054-ZY9-M01)

Note: Use up to Engine SN 1012494.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90054-ZY9-M01

BOLT, FLANGE (8X35)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90081-ZV5-010

SEE PART DETAILS - PRI; BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.49

$

Usually ships in 3-6 days

0

26

Honda 90081-ZY6-010

BOLT, SEALING (22MM)

$9.99

$

Usually ships in 3-6 days

0

27

Honda 90082-ZY6-003

CAP, BOLT (8MM)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 90020-ZVL-010

BOLT, FLANGE (8X50)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90162-ZW4-030

BOLT, FLANGE (10X70)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90204-ZVL-010

NUT (10MM)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 90204-ZY3-000

NUT, FLANGE CAP (10MM)
(Superseded to 90204-ZVL-010)

Note: Use up to Engine SN 1012494.

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90401-PR4-000

WASHER, SEALING (28MM)

$7.49

$

Usually ships in 3-6 days

0

32

Honda 90703-PE0-000

PIN, DOWEL (18X22)

$13.99

$

Usually ships in 3-6 days

0

33

Honda 90715-PC6-000

PIN, DOWEL (13X20) (Honda Code 1477652).

$7.99

$

Usually ships in 3-6 days

0

34

Honda 90715-PNA-000

PIN, DOWEL (13X14)

$7.99

$

Usually ships in 3-6 days

0

35

Honda 91214-RNB-A01

SEE PART DETAILS - PRI; OIL SEAL (80X98X10) (ARAI)

$24.99

$

Usually ships in 3-6 days

0

36

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$5.49

$

In Stock, Qty 10

0

37

Honda 91305-ZY6-003

O-RING (6.5X1.5)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 91319-PR3-003

O-RING (13X1.5) (ARAI)

$6.49

$

Usually ships in 3-6 days

0

40

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0
