BF115 DK1 LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) CONTROL PANEL (5) Parts Diagram

Marine Engine, Made in Japan

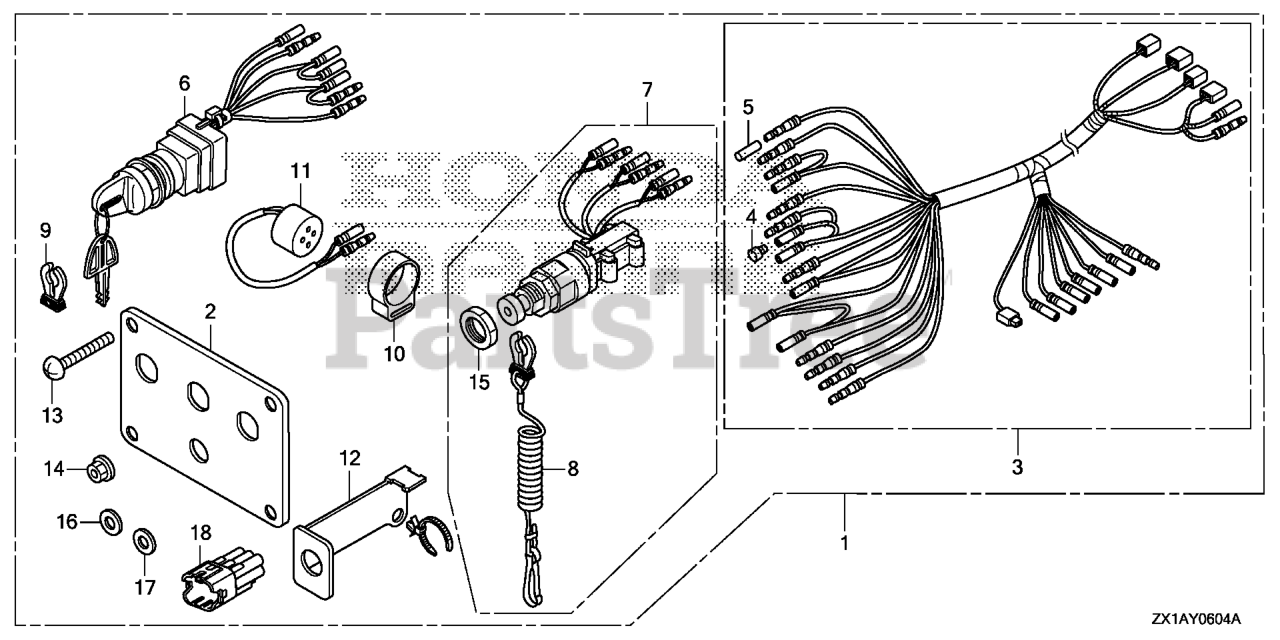

CONTROL PANEL (5) Parts Diagram

  • Title

1

Honda 06323-ZY6-610

PANEL KIT, SWITCH (TRIPLE)

Note: (Optional)

$496.99

$

Usually ships in 3-6 days

0

1

Honda 06323-ZY6-612

PANEL KIT, SW

Note: (Optional)

$952.99

$

Usually ships in 3-6 days

0

2

Honda 32346-ZY6-611

PANEL, CONTROL (TRIPLE)

Note: (Optional)

$87.99

$

Usually ships in 3-6 days

0

3

Honda 32545-ZY6-003

HARNESS ASSY., SWITCH PANEL

Note: (Optional)

$112.99

$

Usually ships in 3-6 days

0

4

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 35100-ZY6-013

SWITCH ASSY., COMBINATION

Note: (Optional)

$112.99

$

Usually ships in 3-6 days

0

7

Honda 36180-ZY6-612

SWITCH ASSY., EMERGENCY STOP (TRIPLE)

Note: (Optional)

$122.99

$

Usually ships in 3-6 days

0

8

Honda 36182-ZY6-003

WIRE, EMERGENCY

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

9

Honda 36187-ZY6-003

CLIP, EMERGENCY LOCK

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT (Honda Code 1704642).

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

11

Honda 38410-ZY9-A01

BUZZER, WARNING

Note: (Optional)

$58.99

$

Usually ships in 3-6 days

0

12

Honda 38414-ZY6-003

BRACKET

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

13

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90301-ZZ5-M00

NUT, FLANGE (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90302-ZY6-003

NUT

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90501-ZZ5-M00

WASHER, PLAIN (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90502-ZZ5-M00

WASHER, SPRING (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90502-ZZ5-M01

WASHER, SPG (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 32606-ZY6-000

DUMMY, WATERPROOF CONNECTOR (GREEN)

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0
