BF115 D XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8000001 - BBHJ-9999999) SHIFT SHAFT Parts Diagram

Marine Engine, Made in Japan

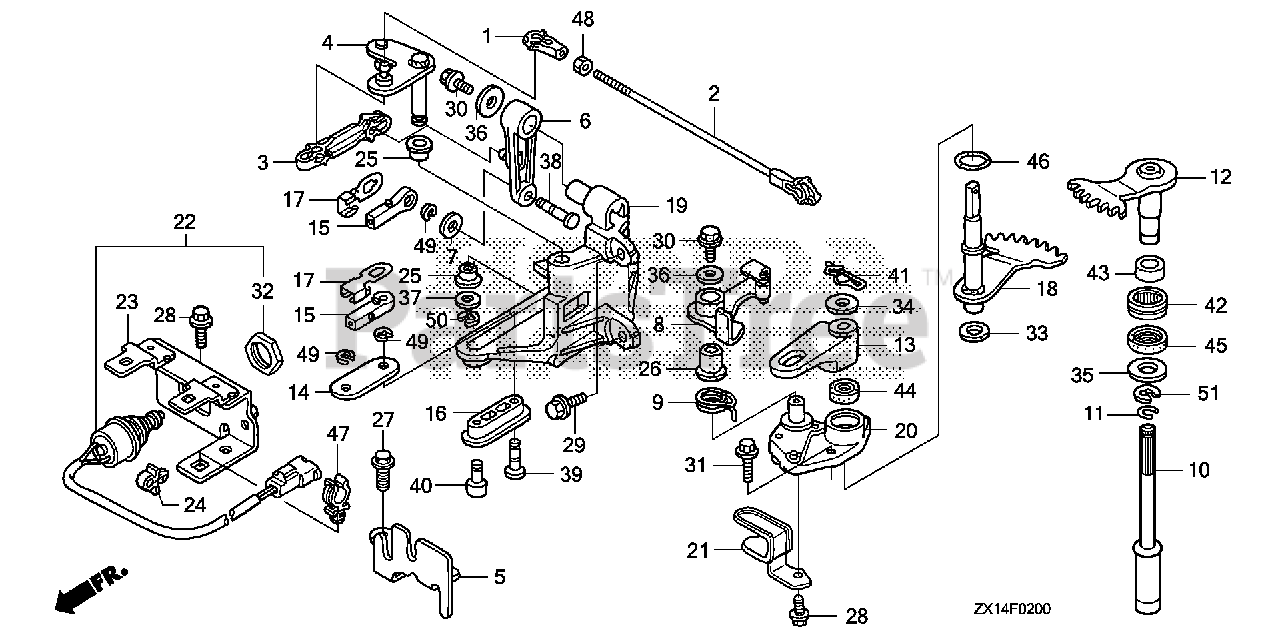

SHIFT SHAFT Parts Diagram

  • Title
1

Honda 17838-ZV5-000

LINKAGE, PIVOT

$10.99

$

Usually ships in 3-6 days

0

2

Honda 17840-ZY6-000

ROD, THROTTLE

$51.99

$

Usually ships in 3-6 days

0

3

Honda 17845-ZY6-000

LINK, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

4

Honda 17860-ZY6-000

PLATE, THROTTLE

$28.99

$

Usually ships in 3-6 days

0

5

Honda 17877-ZY6-010

PLATE, REMOTE CONTROL CABLE

$12.99

$

Usually ships in 3-6 days

0

6

Honda 17931-ZY6-000

ARM, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

7

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

8

Honda 24166-ZY6-000

ARM, CLICK

$34.99

$

Usually ships in 3-6 days

0

9

Honda 24218-ZY6-000

SPRING, CLICK

$4.49

$

Usually ships in 3-6 days

0

10

Honda 24320-ZY6-610

ROD A, SHIFT (XL)

$119.99

$

Usually ships in 3-6 days

0

11

Honda 24327-ZW1-000

RING, STOPPER

$2.49

$

Usually ships in 3-6 days

0

12

Honda 24610-ZY6-000

SHAFT A, SHIFT

$114.99

$

Usually ships in 3-6 days

0

13

Honda 06240-ZY6-305

ARM, SHIFT

$22.99

$

Usually ships in 3-6 days

0

14

Honda 24614-ZY6-000

PLATE, SHIFT PIVOT

$5.99

$

Usually ships in 3-6 days

0

15

Honda 24618-ZY3-000

PIVOT, SHIFT

$8.49

$

Usually ships in 3-6 days

0

16

Honda 24618-ZY6-000

PIVOT, SHIFT SLIDE

$8.49

$

Usually ships in 3-6 days

0

17

Honda 24619-ZY3-000

PLATE, LOCK

$7.99

$

Usually ships in 3-6 days

0

18

Honda 24620-ZY6-000

SHAFT B, SHIFT

$105.99

$

Usually ships in 3-6 days

0

19

Honda 24628-ZY6-000

BRACKET, SHIFT LINK

$95.99

$

Usually ships in 3-6 days

0

20

Honda 24629-ZY6-000ZA

HOLDER, SEAL *NH8* (DARK GRAY)

$69.99

$

Usually ships in 3-6 days

0

21

Honda 32418-ZY6-000

BRACKET A, CABLE

$8.99

$

Usually ships in 3-6 days

0

22

Honda 35470-ZY3-003

SEE PART DETAILS - SUP; SWITCH ASSY., NEUTRAL
(Superseded to 35470-ZY3-023)

$62.99

$

Usually ships in 3-6 days

0

22

Honda 35470-ZY3-023

SEE PART DETAILS - PRI; SWITCH ASSY., NEUTRAL

$62.99

$

Usually ships in 3-6 days

0

23

Honda 35475-ZY6-000

BRACKET, NEUTRAL SWITCH

$20.99

$

Usually ships in 3-6 days

0

24

Honda 46391-VM0-003

CLIP, BRAKE PIPE (A)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 63205-ZY3-000

BUSH A, COVER LOCK

$5.99

$

Usually ships in 3-6 days

0

26

Honda 75538-763-C01

BUSH, BLADE BRAKE

$6.49

$

Usually ships in 3-6 days

0

27

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

28

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90028-ZY3-000

BOLT, FLANGE (6X18)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 90102-ZW9-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

33

Honda 90501-ZW5-000

WASHER, SHIFT SHAFT

$10.99

$

Usually ships in 3-6 days

0

34

Honda 90507-ZY3-000

WASHER, PLAIN (12MM)

$3.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

36

Honda 90512-ZV4-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

37

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

38

$17.99

$

Usually ships in 3-6 days

0

39

Honda 90752-ZY6-000

PIN, SHIFT LINK

$5.99

$

Usually ships in 3-6 days

0

40

$7.49

$

Usually ships in 3-6 days

0

41

Honda 90755-ZY6-003

PIN, SNAP (12MM)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 91001-ZY3-003

BEARING, NEEDLE (20X28X13) (SOLID)

$50.99

$

Usually ships in 3-6 days

0

43

Honda 91152-ZY3-003

RING (INNER) (15X20X13)

$16.99

$

Usually ships in 3-6 days

0

44

Honda 91251-ZW5-003

OIL SEAL (14X26X6)

$5.49

$

Usually ships in 3-6 days

0

45

Honda 91255-ZY3-003

SEAL, WATER (14X26X8)

$10.99

$

Usually ships in 3-6 days

0

46

Honda 91321-P0X-003

O-RING (25X2.4) (NOK)

$5.99

$

Usually ships in 3-6 days

0

47

Honda 91549-SV1-L01

HOLDER, DRAIN TUBE

$10.99

$

Usually ships in 3-6 days

0

48

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

49

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 1 left!

0

50

Honda 94540-06029

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0

51

Honda 94540-12029

E-RING (12MM)

$11.99

$

Usually ships in 3-6 days

0
