BF115 D XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8000001 - BBHJ-9999999) FUSE BOX + RELAY Parts Diagram

Marine Engine, Made in Japan

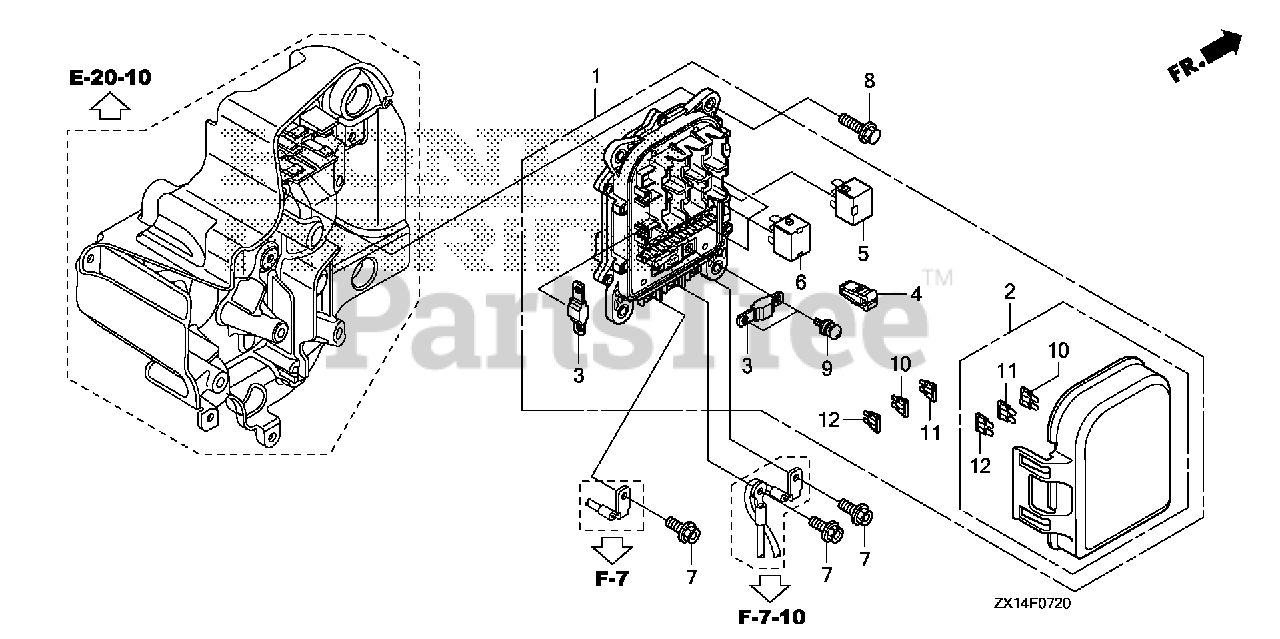

FUSE BOX + RELAY Parts Diagram

  • Title

1

Honda 32370-ZY6-004

BOX ASSY., JUNCTION

$432.99

$

Usually ships in 3-6 days

0

2

Honda 32371-ZY6-004

SEE PART DETAILS - PRI; COVER, FUSE
(Superseded to 32371-ZY3-H01)

$23.99

$

Usually ships in 3-6 days

0

3

Honda 38228-ZY6-003

FUSE, BLOCK (100A) (L-TYPE)

$3.99

$

Usually ships in 3-6 days

0

4

Honda 38235-ZY6-003

PULLER, MINI FUSE
(Superseded to 38235-ZY6-004)

$4.49

$

Usually ships in 3-6 days

0

5

Honda 39794-SDA-004

SEE PART DETAILS - PRI; RELAY ASSY., FUEL PUMP (DENSO)

$90.99

$

Usually ships in 3-6 days

0

6

Honda 39794-ZY6-003

RELAY ASSY., POWER (12V-20A) (MICRO ISO 4P)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90135-ZY6-003

SCREW-WASHER (5X15)
(Superseded to 90135-ZY6-004)

$1.99

$

In Stock, only 2 left!

0

10

Honda 98200-41000

FUSE, MINI (10A)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, Qty 8

0
