BF115 D XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8000001 - BBHJ-9999999) FUEL TUBE + FUEL TANK Parts Diagram

Marine Engine, Made in Japan

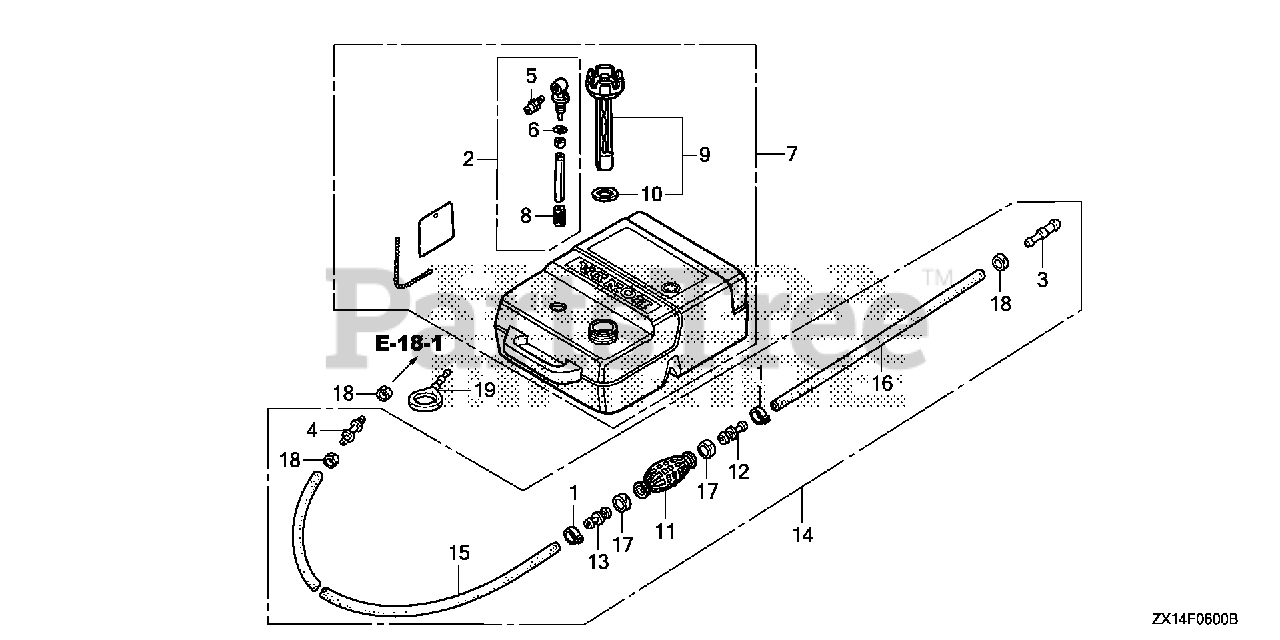

FUEL TUBE + FUEL TANK Parts Diagram

  • Title

1

Honda 16895-ZW9-900

CLAMP, FUEL TUBE

$5.49

$

Usually ships in 3-6 days

0

2

Honda 16900-ZV5-902

JOINT ASSY., FUEL

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR1-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

5

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

6

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

7

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$253.99

$

Usually ships in 3-6 days

0

8

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 17620-ZV5-903

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: (Optional).

$

$

Not available

10

Honda 17624-ZV5-902

GASKET, FUEL CAP

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

11

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$18.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$17.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZV4-000

VALVE, OUTLET

$17.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

$222.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E02

TUBE, FUEL LONG (7.3X2000)
(Superseded to 17701-ZY9-E04)

$132.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500)

$32.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 17738-ZY3-000

PLUG, FUEL TUBE

$13.99

$

Usually ships in 3-6 days

0
