BF115 D XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8000001 - BBHJ-9999999) CRANKSHAFT + PISTON Parts Diagram

Marine Engine, Made in Japan

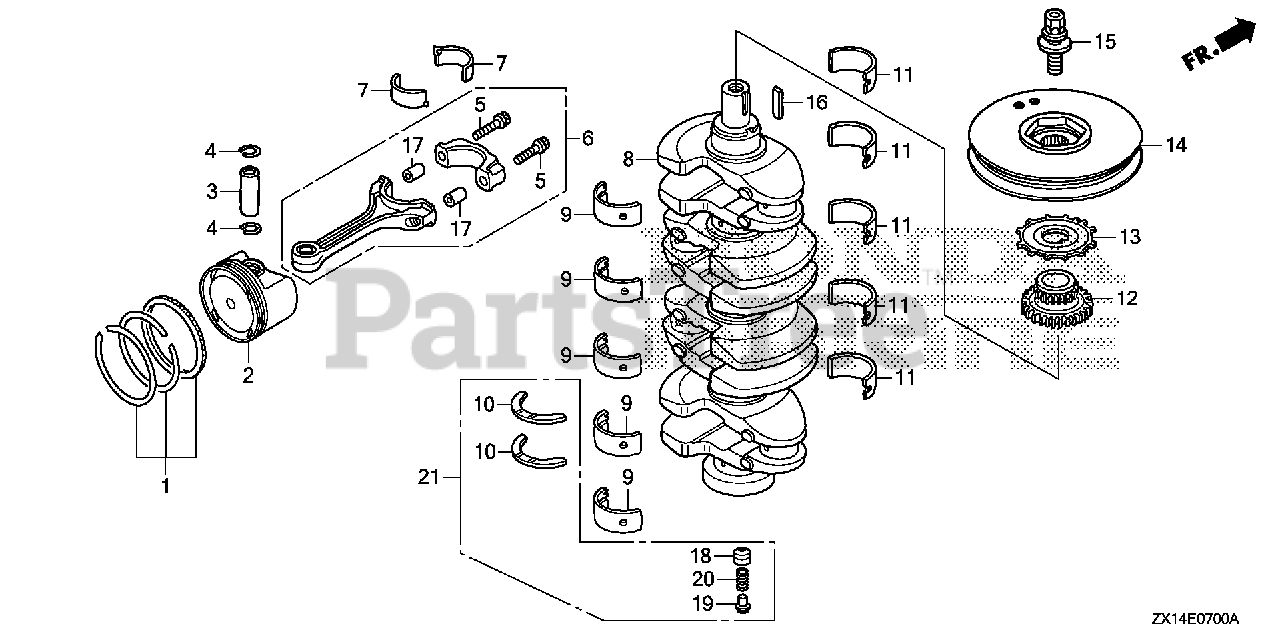

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-ZY6-000

RING SET, PISTON (STD)
(Superseded to 13010-ZY6-010)

$71.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZY6-000

PISTON A

$96.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZY6-000

PISTON B

$101.99

$

Usually ships in 3-6 days

0

3

Honda 13111-PNA-010

PIN, PISTON

$32.99

$

Usually ships in 3-6 days

0

4

Honda 13115-P5A-000

CLIP, PISTON PIN

$5.99

$

Usually ships in 3-6 days

0

5

Honda 13204-P8A-A01

BOLT, CONNECTING ROD

Note: Use up to Engine SN 1005879.

$11.99

$

Usually ships in 3-6 days

0

5

Honda 13204-5X6-J01

BOLT, CONNECTING ROD (SOURCE: VINTAGE PARTS INC.)

Note: Use from Engine SN 1005880.

$12.99

$

Usually ships in 3-6 days

0

6

Honda 13210-PPA-000

ROD, CONNECTING

Note: Use up to Engine SN 1005879.

$291.99

$

Usually ships in 3-6 days

0

6

Honda 13210-R40-A00

ROD, CONNECTING

Note: Use from Engine SN 1005880.

$342.99

$

Usually ships in 3-6 days

0

7

Honda 13211-ZY6-004

BEARING A, CONNECTING ROD (BLUE)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13212-ZY6-004

BEARING B, CONNECTING ROD (BLACK)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13213-ZY6-004

BEARING C, CONNECTING ROD (BROWN)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13214-ZY6-004

BEARING D, CONNECTING ROD (GREEN)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13215-ZY6-004

BEARING E, CONNECTING ROD (YELLOW)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13216-ZY6-004

BEARING F, CONNECTING ROD (PINK)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 13217-ZY6-004

BEARING G, CONNECTING ROD (RED)

$17.99

$

Usually ships in 3-6 days

0

8

Honda 13310-R40-A00

CRANKSHAFT

Note: Use up to Engine SN 1006605.

$867.99

$

Usually ships in 3-6 days

0

8

Honda 13310-ZY6-000

CRANKSHAFT
(Superseded to 13310-ZY6-010)

Note: Use from Engine SN 1006606.

$1022.99

$

Usually ships in 3-6 days

0

9

Honda 13321-PNA-003

SEE PART DETAILS - PRI; BEARING A, MAIN (UPPER) (BLUE) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 13322-PNA-003

SEE PART DETAILS - PRI; BEARING B, MAIN (UPPER) (BLACK) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 13323-PNA-003

SEE PART DETAILS - PRI; BEARING C, MAIN (UPPER) (BROWN) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 13324-PNA-003

SEE PART DETAILS - PRI; BEARING D, MAIN (UPPER) (GREEN) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 13325-PNA-003

SEE PART DETAILS - PRI; BEARING E, MAIN (UPPER) (YELLOW) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 13326-PNA-003

SEE PART DETAILS - PRI; BEARING F, MAIN (UPPER) (PINK) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

10

Honda 13331-ZY6-023

WASHER, THRUST

Note: Use from Engine SN 1006606.

$11.99

$

Usually ships in 3-6 days

0

11

Honda 13341-PNA-003

SEE PART DETAILS - PRI; BEARING A, MAIN (LOWER) (BLUE) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

11

Honda 13342-PNA-003

SEE PART DETAILS - PRI; BEARING B, MAIN (LOWER) (BLACK) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

11

Honda 13343-PNA-003

SEE PART DETAILS - PRI; BEARING C, MAIN (LOWER) (BROWN) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

11

Honda 13344-PNA-003

SEE PART DETAILS - PRI; BEARING D, MAIN (LOWER) (GREEN) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

11

Honda 13345-PNA-003

SEE PART DETAILS - PRI; BEARING E, MAIN (LOWER) (YELLOW) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

11

Honda 13346-PNA-003

SEE PART DETAILS - PRI; BEARING F, MAIN (LOWER) (PINK) (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

12

Honda 13620-RAA-A02

SPROCKET, CHAIN DRIVE

$210.99

$

Usually ships in 3-6 days

0

13

Honda 13622-PNA-003

PLATE, CRANK PULSER

$26.99

$

Usually ships in 3-6 days

0

14

Honda 13811-ZY6-000

PULLEY, CRANKSHAFT

$109.99

$

Usually ships in 3-6 days

0

15

Honda 90017-PCX-013

BOLT-WASHER (16X49)

$34.99

$

Usually ships in 3-6 days

0

16

Honda 90704-PNA-000

KEY (4.5X21)

$8.49

$

Usually ships in 3-6 days

0

17

Honda 94301-10120

PIN, DOWEL (10X12)

Note: Use up to Engine SN 1005879.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 13391-ZY3-000

RETAINER, SPRING
(Superseded to 13391-ZY3-010)

Note: Use from Engine SN 1006606 to 1007711.

$9.99

$

Usually ships in 3-6 days

0

18

Honda 13391-ZY3-010

RETAINER, SPRING

Note: Use from Engine SN 1007712.

$9.99

$

Usually ships in 3-6 days

0

19

Honda 13392-ZY6-000

SEAT, SPRING (150)

Note: Use from Engine SN 1006606.

$10.99

$

Usually ships in 3-6 days

0

20

Honda 13398-ZY3-003

SPRING, SUPPORT

Note: Use from Engine SN 1006606.

$4.99

$

Usually ships in 3-6 days

0

21

Honda 04105-ZY6-000

WASHER KIT, THRUST (150)
(Superseded to 04105-ZY6-010)

Note: Use up to Engine SN 1006605.

$25.99

$

Usually ships in 3-6 days

0
