BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) UNDER COVER Parts Diagram

Marine Engine, Made in Japan

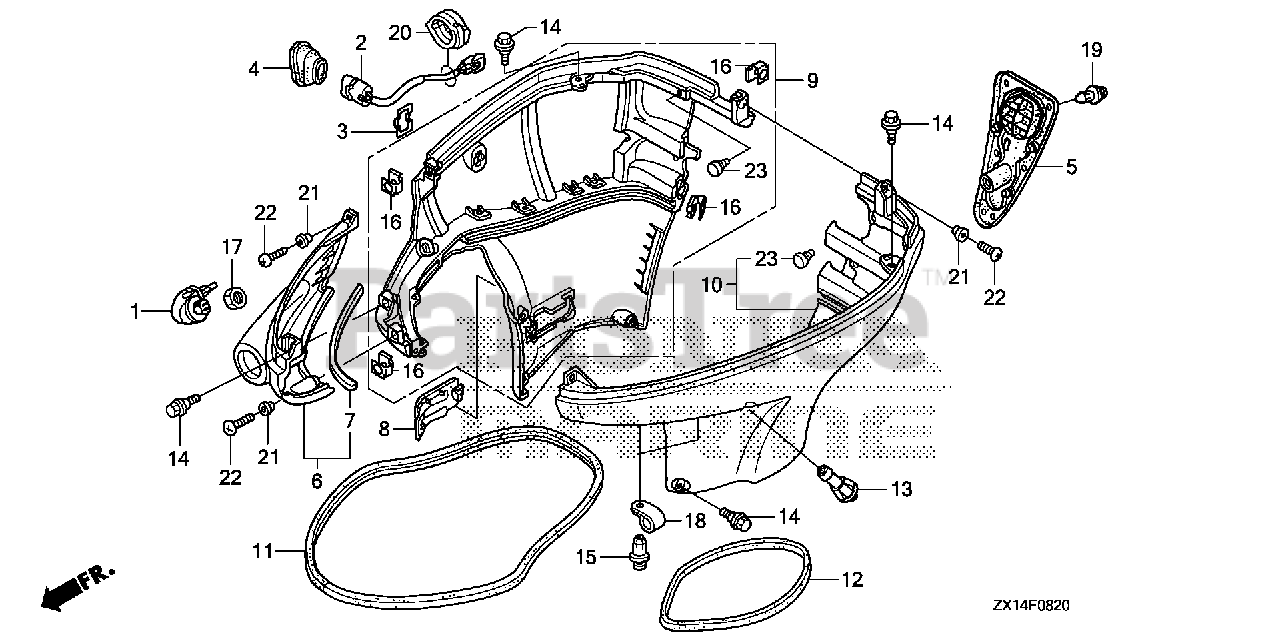

UNDER COVER Parts Diagram

  • Title

1

Honda 19289-ZY6-000

CAP, WATER JOINT

$36.99

$

Usually ships in 3-6 days

0

2

Honda 35640-ZY6-003

SWITCH ASSY., POWER TILT

$73.99

$

Usually ships in 3-6 days

0

3

Honda 35645-ZY3-000

STAY, POWER TILT SWITCH

$12.99

$

In Stock, only 1 left!

0

4

Honda 40114-ZY6-010

GROMMET, POWER TILT SWITCH

$14.99

$

Usually ships in 3-6 days

0

5

Honda 40116-ZY6-000

GROMMET, COVER (LOWER)

$123.99

$

Usually ships in 3-6 days

0

6

Honda 40151-ZY6-010ZA

COVER, FR. SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$132.99

$

Usually ships in 3-6 days

0

7

Honda 40152-ZY6-300

SEAL, FR. SEPARATE COVER

$7.99

$

Usually ships in 3-6 days

0

8

Honda 40212-ZY6-020ZA

COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)

$46.99

$

Usually ships in 3-6 days

0

9

Honda 63711-ZY6-010ZA

COVER, R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$477.99

$

Usually ships in 3-6 days

0

10

Honda 63716-ZY6-010ZA

COVER, L. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$477.99

$

Usually ships in 3-6 days

0

11

Honda 63718-ZY6-000

SEAL A, COVER (LOWER)

$36.99

$

Usually ships in 3-6 days

0

12

Honda 63719-ZY6-000

SEAL B, COVER (LOWER)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 82873-ZY6-000

GROMMET, WATER CHECK
(Superseded to 82873-ZY6-010)

$14.99

$

Usually ships in 3-6 days

0

13

Honda 82873-ZY6-010

GROMMET, WATER CHECK

$14.99

$

Usually ships in 3-6 days

0

14

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90301-ZY6-000

NUT, CLIP

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

$5.99

$

In Stock, only 1 left!

0

18

Honda 90626-ZB5-730

CLIP (10.7MM)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90653-HC4-900

CLIP, SPLASH GUARD

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91553-ZY6-000

COLLAR, DISTANCE (6.5X9X11.5)

$5.99

$

Usually ships in 3-6 days

0

22

Honda 93500-06025-4J

SCREW, PAN (6X25)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 95011-62000

RUBBER B, STAND STOPPER

$1.99

$

Usually ships in 3-6 days

0
