BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) PROPELLER SHAFT@PROPELLER (LA/LC/XA/XC) Parts Diagram

Marine Engine, Made in Japan

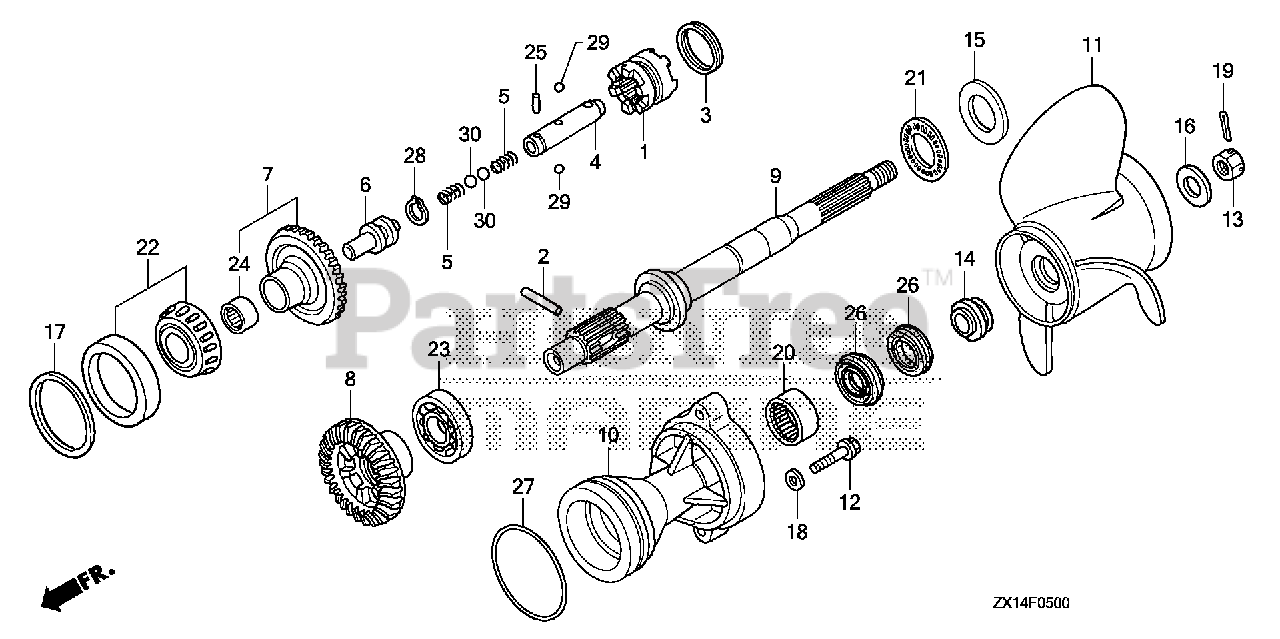

PROPELLER SHAFT@PROPELLER (LA/LC/XA/XC) Parts Diagram

  • Title

1

Honda 24101-ZY6-000

SHIFTER, CLUTCH

$160.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.99

$

Usually ships in 3-6 days

0

4

Honda 24122-ZY6-000

SLIDER, SHIFT

$97.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZY6-000

SPRING, SHIFT

$2.99

$

Usually ships in 3-6 days

0

6

Honda 24124-ZY6-000

PLATE, SHIFT

$42.99

$

Usually ships in 3-6 days

0

7

Honda 41140-ZY6-000

GEAR, BEVEL (FORWARD 30T)

$518.99

$

Usually ships in 3-6 days

0

8

Honda 41151-ZY6-000

GEAR, BEVEL (RVS. 30T)

$466.99

$

Usually ships in 3-6 days

0

9

Honda 41161-ZY6-000

SHAFT, PROPELLER

$454.99

$

Usually ships in 3-6 days

0

10

Honda 41201-ZY6-000ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$243.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V01ZA

PROPELLER, THREE-BLADE (15-1/2X13) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$374.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V12ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (15-1/4X15) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$356.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V22ZA

PROP (15X17) *NH283*

Note: (Optional).

$358.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V32ZA

PROPELLER, THREE-BLADE (14-3/4X19) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$367.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V41ZA

PROPELLER, THREE-BLADE (14-1/2X21) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$397.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V51ZA

PROPELLER, THREE-BLADE (14-1/4X23) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$367.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A15AH

PROPELLER, THREE-BLADE (14-1/2X15) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A17AH

PROPELLER, THREE-BLADE (14-1/4X17) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A19AH

PROPELLER, THREE-BLADE (14X19) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A21AH

PROPELLER, THREE-BLADE (14X21) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A23S

PROPELLER, THREE-BLADE (14-1/2X23) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A25AH

PROPELLER, THREE-BLADE (14X25) (SUS)

Note: (Optional).

$622.99

$

Usually ships in 3-6 days

0

12

Honda 90104-ZY6-000

BOLT, FLANGE (10X40)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 90506-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$54.99

$

Usually ships in 3-6 days

0

14

Honda 90506-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZX2-C00)

$54.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90512-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER
(Superseded to 90512-ZX2-C00)

$52.99

$

Usually ships in 3-6 days

0

17

Honda 90528-ZY3-000

SHIM A, BEVEL (0.10)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90529-ZY3-000

SHIM B, BEVEL (0.15)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90530-ZY3-000

SHIM C, BEVEL (0.30)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90531-ZY3-000

SHIM D, BEVEL (0.50)

$23.99

$

Usually ships in 3-6 days

0

18

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

In Stock, only 3 left!

0

20

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$39.99

$

Usually ships in 3-6 days

0

21

Honda 91005-PT2-N01

BEARING, THRUST (F)

$22.99

$

Usually ships in 3-6 days

0

22

Honda 91051-ZY6-003

BEARING, TAPER (50X90X28)

$82.99

$

Usually ships in 3-6 days

0

23

Honda 91055-ZY6-004

BEARING, RADIAL BALL (50X90X20)

$82.99

$

Usually ships in 3-6 days

0

24

Honda 91056-ZW5-003

BEARING, NEEDLE (25X32X26)

$

$

Not available

25

Honda 91101-ZW1-003

SEE PART DETAILS - PRI; ROLLER (3X12.8)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$9.49

$

In Stock, only 1 left!

0

27

Honda 91351-ZY3-003

O-RING (105X3.1)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 94510-14000

CIRCLIP (OUTER) (14MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 96211-09000

BALL, STEEL (#9) (9/32)

$1.49

$

Usually ships in 3-6 days

0
