BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) METER KIT (ANALOG) Parts Diagram

Marine Engine, Made in Japan

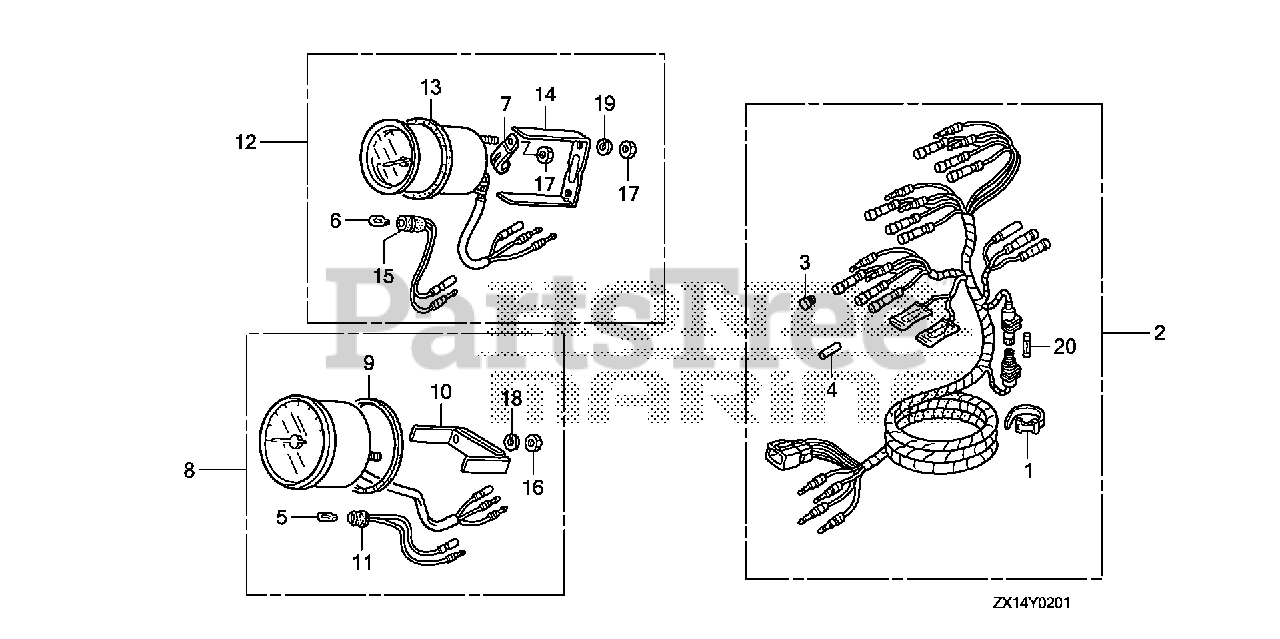

METER KIT (ANALOG) Parts Diagram

  • Title

1

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

Note: (Optional).

$2.99

$

In Stock, only 4 left!

0

2

Honda 32540-ZZ3-000

HARNESS ASSY., METER (A)
(Superseded to 32540-ZZ3-010)

Note: (Optional).

$131.99

$

Usually ships in 3-6 days

0

3

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

4

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 34908-MG9-951

BULB, WEDGE BASE (12V1.7W) (TOSHIBA)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 37215-KM1-670

CLAMP

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 37250-ZV7-913

SEE PART DETAILS - PRI; TACHOMETER ASSY.

Note: (Optional).

$351.99

$

Usually ships in 3-6 days

0

9

Honda 37253-ZV5-821

GASKET

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 37256-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

11

Honda 37258-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

12

Honda 37260-ZV5-822

SEE PART DETAILS - PRI; METER ASSY., TRIM

Note: (Optional).

$317.99

$

Usually ships in 3-6 days

0

13

Honda 37263-ZV5-821

GASKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 37266-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

15

Honda 37268-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

16

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 98200-11000

SEE PART DETAILS - PRI; FUSE A (10A)

Note: (Optional).

$1.49

$

In Stock, only 1 left!

0
