BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) FRONT COVER BRACKET@FRONT LOCK Parts Diagram

Marine Engine, Made in Japan

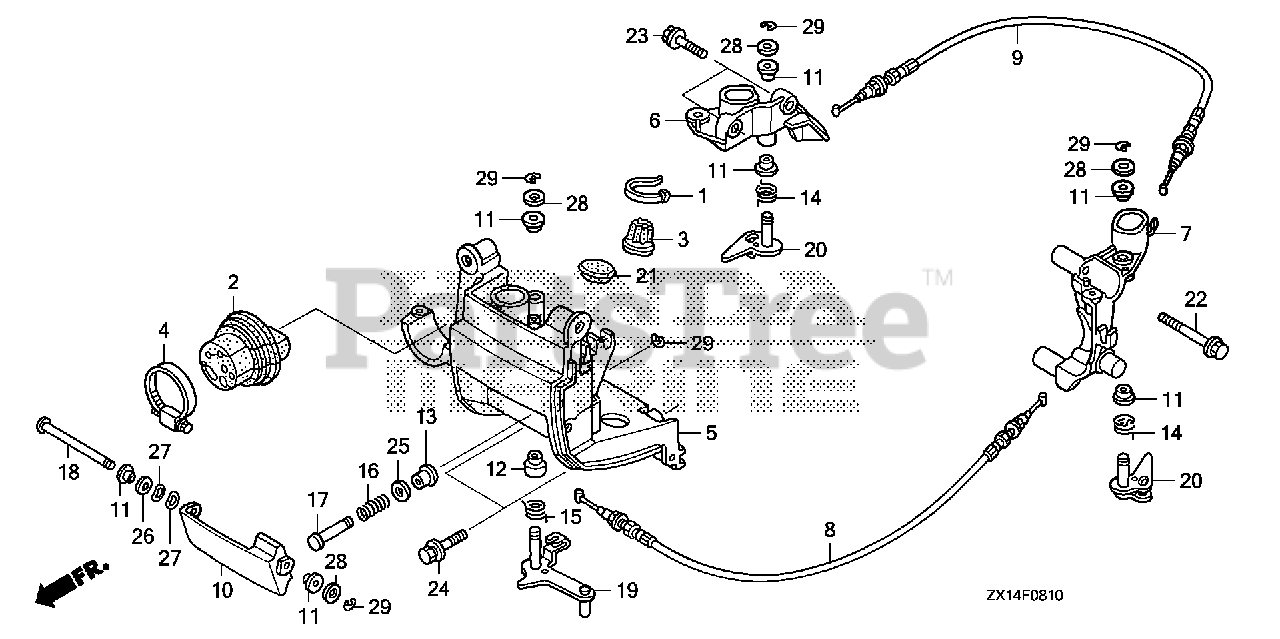

FRONT COVER BRACKET@FRONT LOCK Parts Diagram

  • Title

1

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.49

$

Usually ships in 3-6 days

0

2

Honda 40105-ZY6-020

GROMMET, REMOTE CONTROL CABLE

$20.99

$

Usually ships in 3-6 days

0

3

Honda 40107-ZW1-700

GROMMET, CASE (LOWER) (C)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 40119-ZY3-003

BAND, CASE GROMMET (LOWER)

$16.99

$

Usually ships in 3-6 days

0

5

Honda 40154-ZY6-000ZA

BRACKET, FR. COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$426.99

$

Usually ships in 3-6 days

0

6

Honda 40155-ZY6-000

BRACKET, R. SIDE COVER

$205.99

$

Usually ships in 3-6 days

0

7

Honda 40157-ZY6-000

BRACKET, L. SIDE COVER

$205.99

$

Usually ships in 3-6 days

0

8

Honda 60180-ZY6-003

CABLE A, COVER LOCK

$24.99

$

Usually ships in 3-6 days

0

9

Honda 60185-ZY6-003

CABLE B, COVER LOCK

$20.99

$

Usually ships in 3-6 days

0

10

Honda 63201-ZY3-000ZA

LEVER, COVER LOCK *NH282MU* (OYSTER SILVER METALLIC-U)

$83.99

$

Usually ships in 3-6 days

0

11

Honda 63205-ZY3-000

BUSH A, COVER LOCK

$5.99

$

Usually ships in 3-6 days

0

12

Honda 63205-ZY6-000

BUSH A, COVER LOCK

$8.49

$

Usually ships in 3-6 days

0

13

Honda 63208-ZY3-000

BUSH B, COVER LOCK

$8.99

$

Usually ships in 3-6 days

0

14

Honda 63212-ZY3-000

SPRING, COVER LOCK HOOK

$14.99

$

Usually ships in 3-6 days

0

15

Honda 63212-ZY6-000

SPRING, COVER LOCK HOOK

$13.99

$

Usually ships in 3-6 days

0

16

Honda 63223-ZY6-000

SPRING, LOCK LEVER RETURN

$3.49

$

Usually ships in 3-6 days

0

17

Honda 63224-ZY3-000

SHAFT, COVER OPEN

$16.99

$

Usually ships in 3-6 days

0

18

Honda 63225-ZY6-000

SHAFT, FR. LOCK

$38.99

$

Usually ships in 3-6 days

0

19

Honda 63240-ZY6-010

LOCK, FR.

$43.99

$

Usually ships in 3-6 days

0

20

Honda 63260-ZY3-000

LOCK, SIDE

$27.99

$

Usually ships in 3-6 days

0

21

Honda 63515-ZC0-700

CAP, L. SIDE COVER

$7.99

$

Usually ships in 3-6 days

0

22

Honda 90001-ZY6-000

BOLT, FLANGE (8X55)
(Superseded to 90010-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90105-ZY6-000

BOLT-WASHER (8X30)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 90501-MM8-610

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90502-MM8-610

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90506-ZW9-000

WASHER, WAVE (10MM)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90518-921-000

WASHER, PLAIN (8MM) Use from Frame SN 4800713.

$1.99

$

In Stock, Qty 10

0

29

Honda 94540-06029

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0
