BF115 AK0 XA (BZBD) - Honda Marine Engine, Made in Japan (SN: BZBD-1800001 - BZBD-9999999) POWER TRIM-TILT Parts Diagram

Marine Engine, Made in Japan

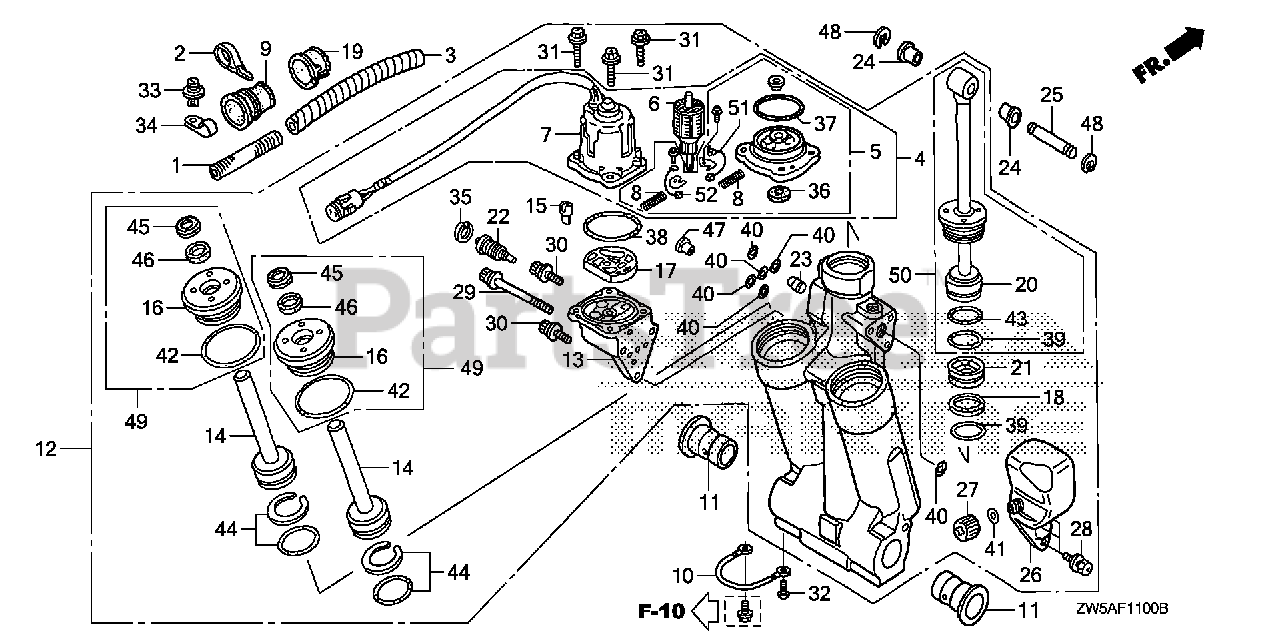

POWER TRIM-TILT Parts Diagram

  • Title

1

Honda 17735-ZW5-000

TUBE, CORRUGATE (10MM)

$2.99

$

Usually ships in 3-6 days

0

2

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.99

$

Usually ships in 3-6 days

0

3

Honda 36104-ZW1-003

TUBE, SPIRAL (12X14.6)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 36120-ZW1-703

SEE PART DETAILS - SUP; MOTOR ASSY., POWER TILT
(Superseded to 36120-ZW1-704)

$720.99

$

Usually ships in 3-6 days

0

4

Honda 36120-ZW1-704

SEE PART DETAILS - PRI; MOTOR ASSY., POWER TILT

$720.99

$

Usually ships in 3-6 days

0

5

Honda 36122-ZW1-013

SEE PART DETAILS - SUP; BRACKET ASSY.
(Superseded to 36122-ZX2-003)

$

$

Not available

5

Honda 36122-ZX2-003

SEE PART DETAILS - PRI; BRACKET ASSY.
(Superseded to 36122-ZX2-013)

$

$

Not available

6

Honda 36123-ZW1-013

ARMATURE

$201.99

$

Usually ships in 3-6 days

0

7

Honda 36129-ZW1-023

SEE PART DETAILS - PRI; YOKE ASSY.

$318.99

$

Usually ships in 3-6 days

0

8

Honda 36136-ZV5-821

SPRING, MOTOR

$10.99

$

Usually ships in 3-6 days

0

9

Honda 40107-ZW1-700

GROMMET, CASE (LOWER) (C)

$21.99

$

Usually ships in 3-6 days

0

10

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 50214-ZV5-003

BUSH, SWIVEL CASE

$10.99

$

Usually ships in 3-6 days

0

12

Honda 56000-ZW1-709

SEE PART DETAILS - SUP; TRIM-TILT ASSY., POWER
(Superseded to 56000-ZW1-711)

$

$

Not available

12

Honda 56000-ZW1-711

SEE PART DETAILS - PRI; TRIM-TILT ASSY., POWER
(Superseded to 56000-ZW1-712)

$3418.99

$

Usually ships in 3-6 days

0

13

Honda 56100-ZY9-013

PUMP ASSY.

$

$

Not available

14

Honda 56110-ZW1-701

ROD, PISTON (B)

$166.99

$

Usually ships in 3-6 days

0

15

Honda 56113-ZW1-701

JOINT, DRIVE

$23.99

$

Usually ships in 3-6 days

0

16

Honda 56115-ZW1-703

GUIDE, ROD

Note: Use up to Frame SN 1800915.

$137.99

$

Usually ships in 3-6 days

0

16

Honda 56115-ZY9-003

SEE PART DETAILS - SUP; GUIDE, ROD
(Superseded to 56115-ZY9-023)

Note: Use from Frame SN 1800916.

$140.99

$

Usually ships in 3-6 days

0

16

Honda 56115-ZY9-013

SEE PART DETAILS - SUP; GUIDE, ROD
(Superseded to 56115-ZY9-023)

Note: Use from Frame SN 1800916.

$140.99

$

Usually ships in 3-6 days

0

16

Honda 56115-ZY9-023

SEE PART DETAILS - PRI; GUIDE, ROD

Note: Use from Frame SN 1800916.

$140.99

$

Usually ships in 3-6 days

0

17

Honda 56116-ZW1-701

FILTER B

$22.99

$

Usually ships in 3-6 days

0

18

Honda 56117-ZV5-821

RING, BACK-UP

$11.99

$

In Stock, only 1 left!

0

19

Honda 56118-ZV5-820

BUSH, MOTOR CODE

$12.99

$

Usually ships in 3-6 days

0

20

Honda 56120-ZY9-003

SEE PART DETAILS - SUP; ROD, PISTON
(Superseded to 56120-ZY9-013)

$617.99

$

Usually ships in 3-6 days

0

20

Honda 56120-ZY9-013

SEE PART DETAILS - PRI; ROD, PISTON

$617.99

$

Usually ships in 3-6 days

0

21

Honda 56130-ZW1-702

PISTON, FREE

$90.99

$

Usually ships in 3-6 days

0

22

Honda 56170-ZY9-003

VALVE, MANUAL

$141.99

$

Usually ships in 3-6 days

0

23

Honda 56180-ZW1-701

VALVE, RESERVOIR

$113.99

$

Usually ships in 3-6 days

0

24

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 56532-ZW1-000

SEE PART DETAILS - SUP; PIN, CYLINDER (UPPER)
(Superseded to 56532-ZZ0-C00)

$32.99

$

Usually ships in 3-6 days

0

26

Honda 56851-ZW1-703

SEE PART DETAILS - PRI; TANK, OIL

$26.99

$

Usually ships in 3-6 days

0

27

Honda 56860-ZW1-701

CAP, OIL TANK

$18.99

$

Usually ships in 3-6 days

0

28

Honda 90113-ZW1-702

BOLT, RECESSED

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90114-ZW1-702

BOLT A, SOCKET

$19.99

$

Usually ships in 3-6 days

0

30

Honda 90115-ZW1-702

BOLT B, SOCKET

$15.99

$

Usually ships in 3-6 days

0

31

Honda 90116-ZW1-702

BOLT, HEX.

$7.49

$

Usually ships in 3-6 days

0

32

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 90602-SB0-003

CLIP (10.7MM)

$5.99

$

Usually ships in 3-6 days

0

35

Honda 90652-ZW1-702

CIRCLIP (INNER)

$9.49

$

Usually ships in 3-6 days

0

36

Honda 91203-ZV5-821

OIL SEAL

$43.99

$

Usually ships in 3-6 days

0

37

Honda 91207-ZW1-013

O-RING (2.0X70.5)

$8.49

$

Usually ships in 3-6 days

0

38

Honda 91302-ZV5-821

O-RING (1.8X69.6)

$7.49

$

Usually ships in 3-6 days

0

39

Honda 91316-ZV5-821

O-RING (3.5X38.7)

$4.99

$

Usually ships in 3-6 days

0

40

Honda 91352-ZW1-702

O-RING (1.8X7.7)
(Superseded to 91352-ZX2-003)

$3.49

$

Usually ships in 3-6 days

0

41

Honda 91353-ZW1-703

SEE PART DETAILS - PRI; O-RING (1.9X11)

$8.49

$

Usually ships in 3-6 days

0

42

Honda 91354-ZW1-701

O-RING (3.5X35.7)

$11.99

$

In Stock, only 2 left!

0

43

Honda 91355-ZW1-701

O-RING (3.5X41.7)

$18.99

$

Usually ships in 3-6 days

0

44

Honda 91357-ZW1-701

O-RING SET (3.5X31.7)

$16.99

$

In Stock, only 2 left!

0

45

Honda 91358-ZW1-701

SEAL, WATER

$11.99

$

In Stock, only 2 left!

0

46

Honda 91361-ZW1-701

GASKET

$9.49

$

In Stock, only 2 left!

0

47

Honda 91557-ZW1-701

COLLAR, ORIFICE

$14.99

$

Usually ships in 3-6 days

0

48

Honda 94540-15029

E-RING (15MM)

$11.99

$

Usually ships in 3-6 days

0

49

Honda 56115-ZW1-305

SEE PART DETAILS - SUP; GUIDE, ROD

Note: (Optional).

$

$

Not available

49

Honda 56115-ZW1-315

SEE PART DETAILS - PRI; GUIDE, ROD

Note: (Optional).

$113.99

$

Usually ships in 3-6 days

0

50

Honda 56120-ZW1-305

ROD, PISTON

Note: (Optional).

$536.99

$

Usually ships in 3-6 days

0

51

Honda 30280-ZX2-003

SEE PART DETAILS - PRI; BREAKER ASSY.
(Superseded to 30280-ZX2-013)

$44.99

$

Usually ships in 3-6 days

0

51

Honda 30280-ZY3-003

SEE PART DETAILS - SUP; BREAKER ASSY.
(Superseded to 30280-ZX2-003)

$

$

Not available

52

Honda 31106-ZY3-003

BRUSH ASSY.

$46.99

$

Usually ships in 3-6 days

0
