BF115 AK0 XA (BZBD) - Honda Marine Engine, Made in Japan (SN: BZBD-1800001 - BZBD-9999999) CYLINDER HEAD COVER Parts Diagram

Marine Engine, Made in Japan

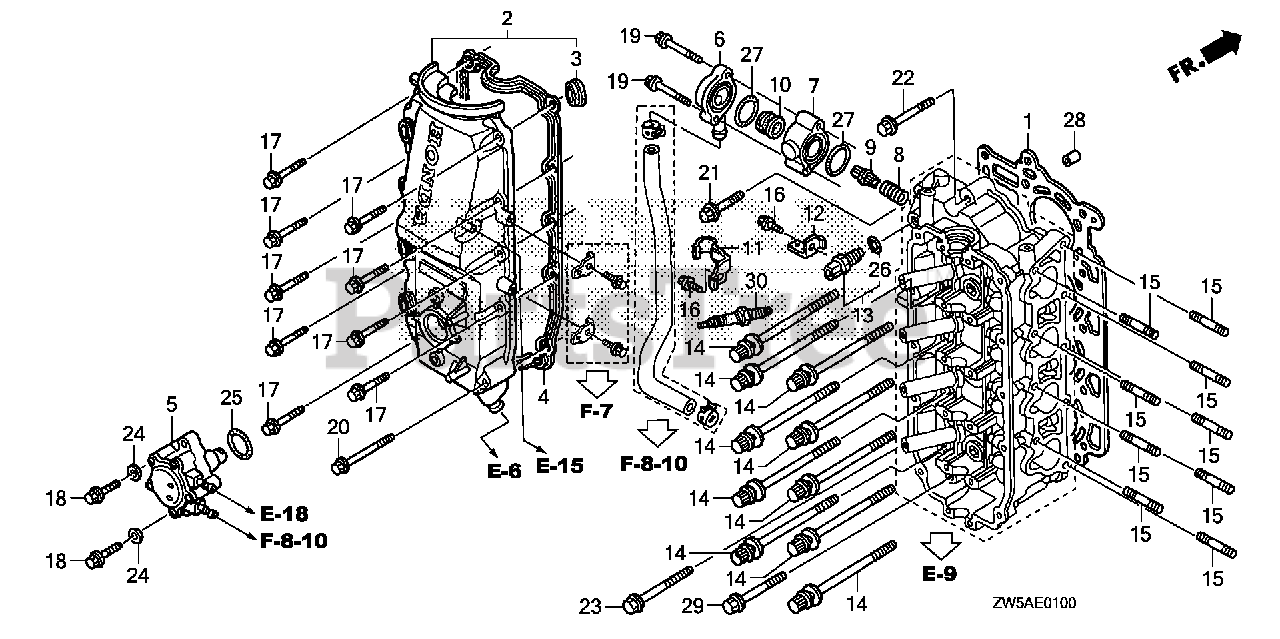

CYLINDER HEAD COVER Parts Diagram

  • Title

1

Honda 12251-ZW5-023

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$222.99

$

Usually ships in 3-6 days

0

2

Honda 12310-ZW5-010ZA

SEE PART DETAILS - PRI; COVER, HEAD *NH8* (DARK GRAY)

$416.99

$

Usually ships in 3-6 days

0

3

Honda 12342-P2F-A01

SEE PART DETAILS - SUP; SEAL, SPARK PLUG TUBE (NOK)
(Superseded to 12342-RYE-004)

$8.49

$

Usually ships in 3-6 days

0

3

Honda 12342-RYE-004

SEE PART DETAILS - PRI; SEAL, SPARK PLUG TUBE (NOK)

$8.49

$

Usually ships in 3-6 days

0

4

Honda 12391-ZW5-010

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$55.99

$

Usually ships in 3-6 days

0

5

Honda 16700-ZW5-004

PUMP ASSY., FUEL (MSDS)

$365.99

$

Usually ships in 3-6 days

0

6

Honda 19277-ZW1-000

COVER, FLUSH VALVE

$64.99

$

Usually ships in 3-6 days

0

7

Honda 19278-ZW1-000ZA

SPACER, FLUSH VALVE *NH8* (DARK GRAY)

$85.99

$

Usually ships in 3-6 days

0

8

Honda 19279-ZW1-000

SPRING, FLUSH VALVE

$7.49

$

Usually ships in 3-6 days

0

9

Honda 19291-ZW1-000

VALVE, RELIEF

$12.99

$

In Stock, only 1 left!

0

10

Honda 19297-ZW1-000

GASKET, RELIEF VALVE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 19416-ZW1-000

CLAMP, HOSE

$14.99

$

Usually ships in 3-6 days

0

12

Honda 30526-ZW5-000

STAY A, IGNITION WIRE CLAMP

$

$

Not available

13

Honda 35673-ZW5-003

SENSOR ASSY., WATER TEMPERATURE

$27.99

$

Usually ships in 3-6 days

0

14

Honda 90005-PAA-A01

BOLT-WASHER (12X163)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90006-ZW5-010

BOLT, STUD (10X32)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

17

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90036-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)
(Superseded to 90036-ZY3-030)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90147-ZW4-000

BOLT, FLANGE (6X55)
(Superseded to 90047-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90148-ZW4-000

BOLT, FLANGE (6X65)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90156-ZW4-000

BOLT, FLANGE (8X50)
(Superseded to 90020-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90162-ZW4-000

BOLT, FLANGE (10X70)
(Superseded to 90162-ZW4-030)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90164-ZW4-000

BOLT, FLANGE (10X90)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90406-ZY3-000

WASHER, PLAIN (8MM)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 91305-KT7-003

O-RING (37X2.4) (ARAI)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91307-PK2-005

O-RING (9.5X1.5) (HONDA KIKAKI)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 91356-SD4-952

O-RING (31.5X2.4) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 94301-14200

PIN, DOWEL (14X20)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 95701-08080-09

BOLT, FLANGE (8X80)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 98079-5785G

SPARK PLUG (KJ22CR-L8)

$4.99

$

Usually ships in 3-6 days

0

30

Honda 98079-5787G

SPARK PLUG (ZFR7F)

$4.99

$

Usually ships in 3-6 days

0
