BF115 A6 XCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1700001 - BZBG-1799999) METER@HOSE JOINT Parts Diagram

Marine Engine, Made in Japan

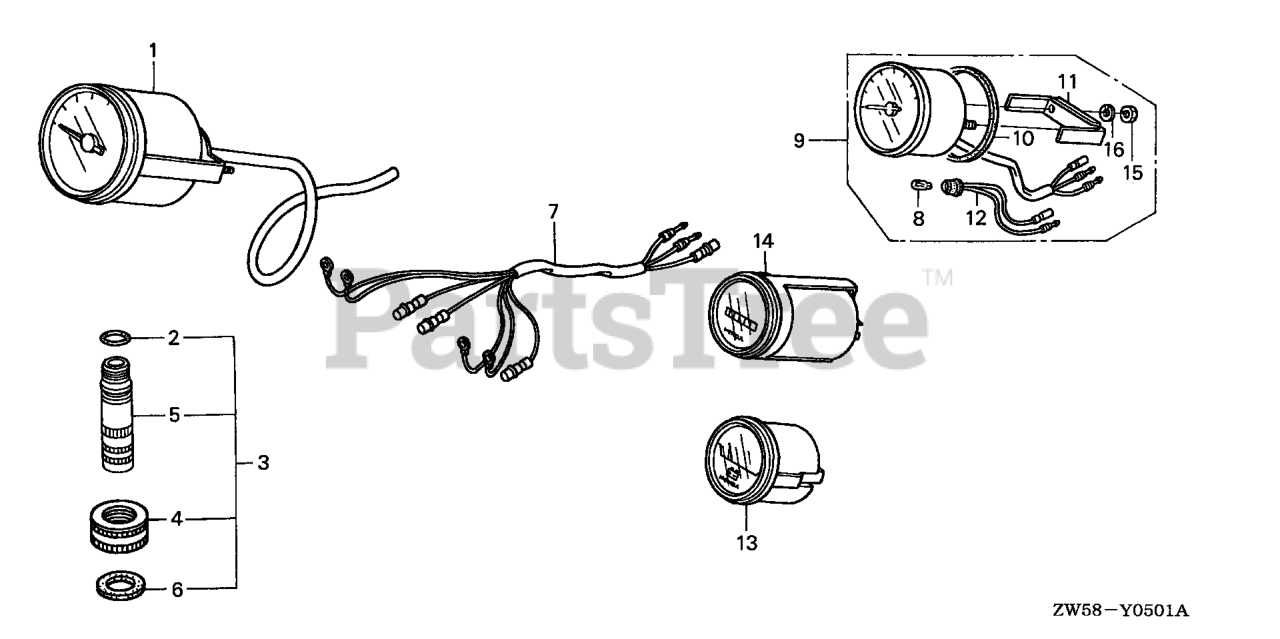

METER@HOSE JOINT Parts Diagram

  • Title
1

Honda 06372-ZV5-910

SEE PART DETAILS - SUP; SPEEDOMETER KIT
(Superseded to 37200-ZW5-000ZA)

Note: (Optional)

$

$

Not available

2

Honda 91302-ZE9-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

3

Honda 19270-ZW1-740

JOINT ASSY., HOSE

Note: (Optional)

$44.99

$

Usually ships in 3-6 days

0

4

Honda 19270-881-812

NUT, WATER MOUTH Use from Frame SN 1000929.

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 19270-ZW1-740

JOINT ASSY., HOSE

Note: (Optional)

$44.99

$

Usually ships in 3-6 days

0

6

Honda 19272-881-810

SEAT, WATER MOUTH Use from Frame SN 1000929.

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 32550-ZV5-910

HARNESS ASSY., METER (B)

Note: (Optional)

$21.99

$

Usually ships in 3-6 days

0

8

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 37250-ZV7-913

SEE PART DETAILS - PRI; TACHOMETER ASSY.

Note: (Optional)

$351.99

$

Usually ships in 3-6 days

0

10

Honda 37253-ZV5-821

GASKET

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

11

Honda 37256-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

12

Honda 37258-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$21.99

$

Usually ships in 3-6 days

0

13

Honda 37450-ZV5-911

METER ASSY., VOLT (NOT AVAILABLE: USE 37453-ZW5-000ZA)

Note: (Optional)

$

$

Not available

14

Honda 39700-ZV5-800AH

SEE PART DETAILS - PRI; METER ASSY., HOUR L.C.D.

Note: (Optional)

$56.99

$

Usually ships in 3-6 days

0

15

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
