BF115 A6 XCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1700001 - BZBG-1799999) CONTROL PANEL KIT Parts Diagram

Marine Engine, Made in Japan

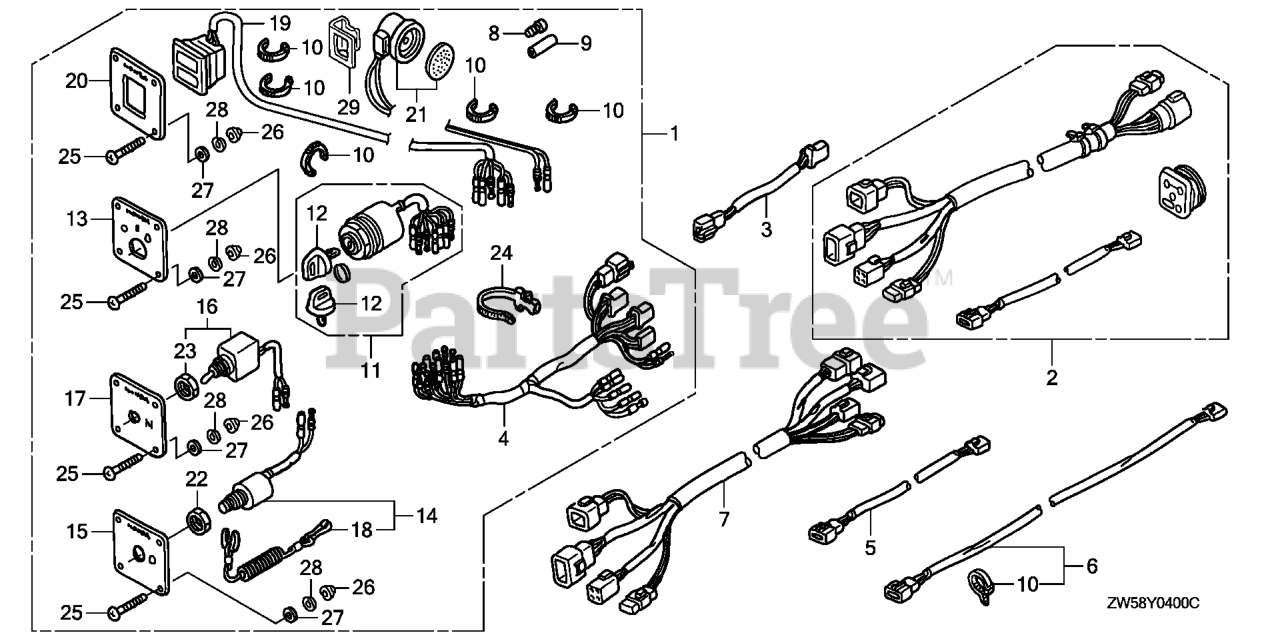

CONTROL PANEL KIT Parts Diagram

  • Title

1

Honda 06323-ZW5-U04

SEE PART DETAILS - PRI; PANEL KIT, CONTROL (B)

Note: (Optional)

$525.99

$

Usually ships in 3-6 days

0

2

Honda 06325-ZW5-U00

CABLE KIT, SWITCH INDICATOR

Note: (Optional)

$393.99

$

Usually ships in 3-6 days

0

3

Honda 32530-ZW7-U00

SUB-HARNESS ASSY., POWER TRIM-TILT (A)

Note: (Optional)

$36.99

$

Usually ships in 3-6 days

0

4

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

Note: (Optional)

$146.99

$

Usually ships in 3-6 days

0

5

Honda 32570-ZW5-U00

CABLE ASSY., EXTENSION (3P 7FT) (FOR 2-LED)

Note: (Optional)

$76.99

$

Usually ships in 3-6 days

0

6

Honda 32570-ZW5-U10

CABLE ASSY., EXTENSION (3P 30FT) (FOR 2-LED)

Note: (Optional)

$135.99

$

Usually ships in 3-6 days

0

7

Honda 32570-ZW5-U20

CABLE ASSY., EXTENSION (17P 7FT)

Note: (Optional)

$309.99

$

Usually ships in 3-6 days

0

8

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE)

Note: (Optional)

$192.99

$

Usually ships in 3-6 days

0

12

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 35118-ZW5-U02

SEE PART DETAILS - PRI; PANEL, SWITCH

Note: (Optional)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 35180-ZV7-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional)

$82.99

$

Usually ships in 3-6 days

0

15

Honda 35184-ZW5-U03

PANEL, EMERGENCY STOP SWITCH

Note: (Optional)

$17.99

$

Usually ships in 3-6 days

0

16

Honda 35630-ZW5-U11

SWITCH ASSY., SOLENOID

Note: (Optional)

$76.99

$

Usually ships in 3-6 days

0

17

Honda 35634-ZW5-U12

SEE PART DETAILS - PRI; PANEL, SOLENOID

Note: (Optional)

$15.99

$

Usually ships in 3-6 days

0

18

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

Note: (Optional)

$25.99

$

Usually ships in 3-6 days

0

19

Honda 37210-ZW5-U01

LAMP ASSY., INDICATOR (2-LED)

Note: (Optional)

$102.99

$

Usually ships in 3-6 days

0

20

Honda 37214-ZW5-U02

SEE PART DETAILS - PRI; PANEL, INDICATOR

Note: (Optional)

$15.99

$

Usually ships in 3-6 days

0

21

Honda 38410-ZW5-U01

BUZZER, WARNING

Note: (Optional)

$76.99

$

Usually ships in 3-6 days

0

22

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

Note: (Optional)

$5.99

$

In Stock, only 1 left!

0

23

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE)

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

25

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 18334-MT8-770

NUT, FLANGE (5MM) DUAL QTY = (8) (SINGLE)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 94103-05400

WASHER, PLAIN (5MM) DUAL QTY = (8) (SINGLE)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-05400

WASHER, SPRING (5MM) DUAL QTY = (8) (SINGLE)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 38414-ZW5-U00

BRACKET, BUZZER

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0
