BF115 A6 XA (BZBD) - Honda Marine Engine, Made in Japan (SN: BZBD-1700001 - BZBD-1799999) METER + HOSE JOINT Parts Diagram

Marine Engine, Made in Japan

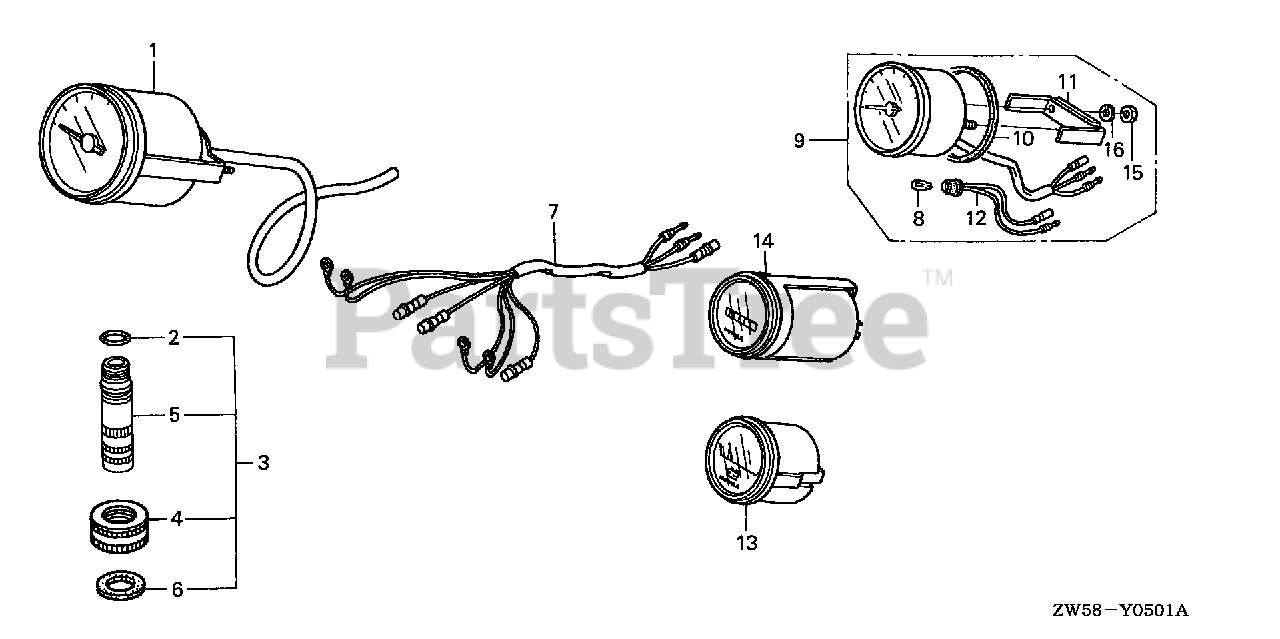

METER + HOSE JOINT Parts Diagram

  • Title

1

Honda 37200-ZW5-000ZA

SEE PART DETAILS - PRI; SPEEDOMETER KIT

Note: (Optional).

$

$

Not available

2

Honda 91302-ZE9-003

O-RING (11.8X2.4)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

3

Honda 19270-ZW1-740

JOINT ASSY., HOSE

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

4

Honda 19270-881-812

NUT, WATER MOUTH

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 19270-ZW1-740

JOINT ASSY., HOSE

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

6

Honda 19272-881-810

SEAT, WATER MOUTH

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 32550-ZV5-910

HARNESS ASSY., METER (B)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

8

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 37250-ZV7-913

TACHOMETER ASSY.

Note: (Optional).

$351.99

$

Usually ships in 3-6 days

0

10

Honda 37253-ZV5-821

GASKET

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

11

Honda 37256-ZV5-821

BRACKET

Note: (Optional).

$32.99

$

Usually ships in 3-6 days

0

12

Honda 37258-ZV5-821

SOCKET

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

13

Honda 37450-ZV5-911

METER ASSY., VOLT (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

14

Honda 39700-ZV5-800AH

METER ASSY., HOUR L.C.D.

Note: (Optional).

$56.99

$

Usually ships in 3-6 days

0

15

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
