BF115 A4 XA (BZBD) - Honda Marine Engine, Made in Japan (SN: BZBD-1500001 - BZBD-1599999) FUEL TANK + FUEL TUBE Parts Diagram

Marine Engine, Made in Japan

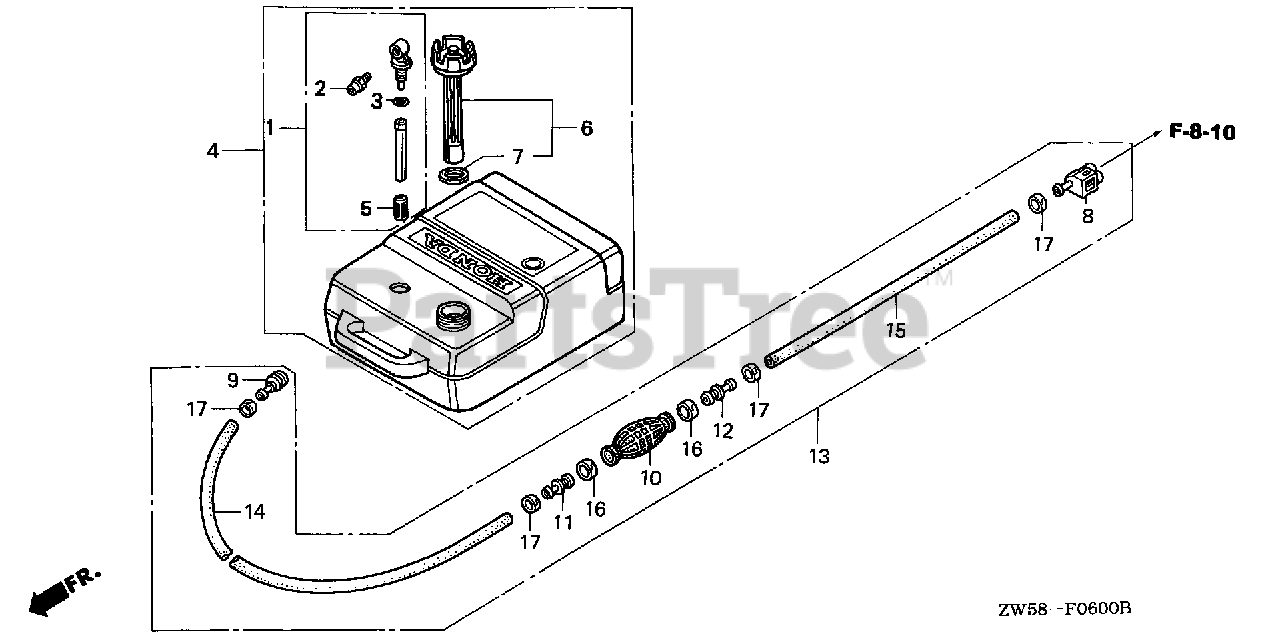

FUEL TANK + FUEL TUBE Parts Diagram

  • Title
1

Honda 16900-ZV5-902

JOINT ASSY., FUEL

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-901

O-RING

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$244.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional).

$2.99

$

In Stock, only 1 left!

0

6

Honda 17620-ZV5-903

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: (Optional).

$

$

Not available

7

Honda 17624-ZV5-901

GASKET, FUEL CAP

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

8

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

$45.99

$

Usually ships in 3-6 days

0

9

Honda 17660-ZW9-003

CONNECTOR, FUEL

$42.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-000

SEE PART DETAILS - SUP; BULB, PRIMER
(Superseded to 17661-921-010)

Note: Use up to Frame SN 1500374.

$17.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$17.99

$

Usually ships in 3-6 days

0

11

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-030

TUBE ASSY., FUEL

$84.99

$

In Stock, only 1 left!

0

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000)

$62.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0
