BF115 A4 LCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1500001 - BZBG-1599999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

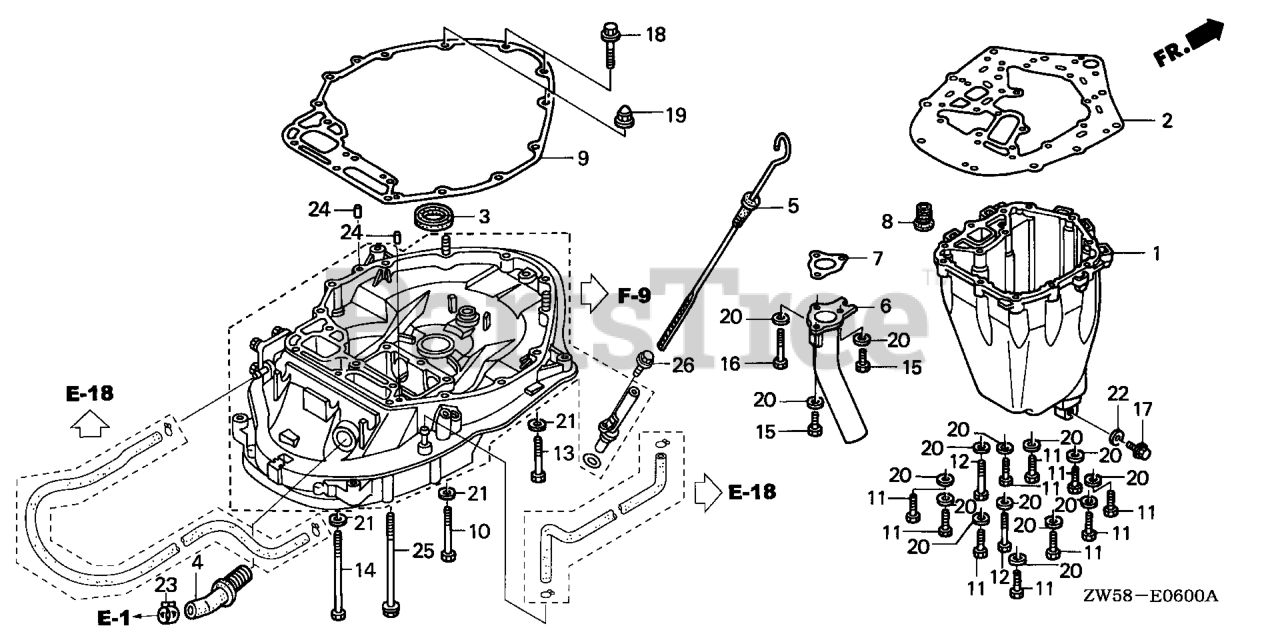

OIL PAN Parts Diagram

  • Title

1

Honda 11311-ZW5-010ZA

PAN, OIL *TGRAY* (GRAY)

$335.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZW5-003

GASKET, OIL PAN

$117.99

$

Usually ships in 3-6 days

0

3

Honda 15113-ZW5-000

RUBBER, OIL PUMP

$11.99

$

Usually ships in 3-6 days

0

4

Honda 06154-ZW5-000

SEE PART DETAILS - PRI; TUBE SET, OIL

$

$

Not available

5

Honda 15655-ZW5-000

GAUGE, OIL LEVEL

$27.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZW5-000

PIPE, EX.

$325.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZW1-000

GASKET, EX. PIPE

$13.99

$

Usually ships in 3-6 days

0

8

Honda 19252-ZW1-000

GROMMET, WATER TUBE

$10.99

$

Usually ships in 3-6 days

0

9

Honda 23172-ZW5-013

SEE PART DETAILS - PRI; GASKET, MOUNT CASE

$187.99

$

Usually ships in 3-6 days

0

10

Honda 90007-ZW5-000

BOLT, HEX. (10X60)

$15.99

$

Usually ships in 3-6 days

0

11

Honda 90009-ZV5-000

BOLT, HEX. (8X35) Use up to Frame SN 4800712.

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90010-ZW1-020

BOLT, HEX. (10X47)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90011-ZW1-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X110)

$17.99

$

Usually ships in 3-6 days

0

15

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90122-ZV5-000

BOLT, HEX. (8X65)

$8.99

$

Usually ships in 3-6 days

0

17

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

18

Honda 90170-ZW4-000

BOLT, FLANGE (10X45)
(Superseded to 90170-ZW4-020)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90201-HA0-000

NUT, CAP (10MM)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90401-ZW1-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90606-ZW5-030

SEE PART DETAILS - PRI; CLAMP, TUBE (D29)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 95701-10130-09

BOLT, FLANGE (10X130)

$4.49

$

In Stock, only 2 left!

0

26

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0
