BF115 A3 LCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1400001 - BZBG-1499999) WATER PUMP IMPELLER KIT Parts Diagram

Marine Engine, Made in Japan

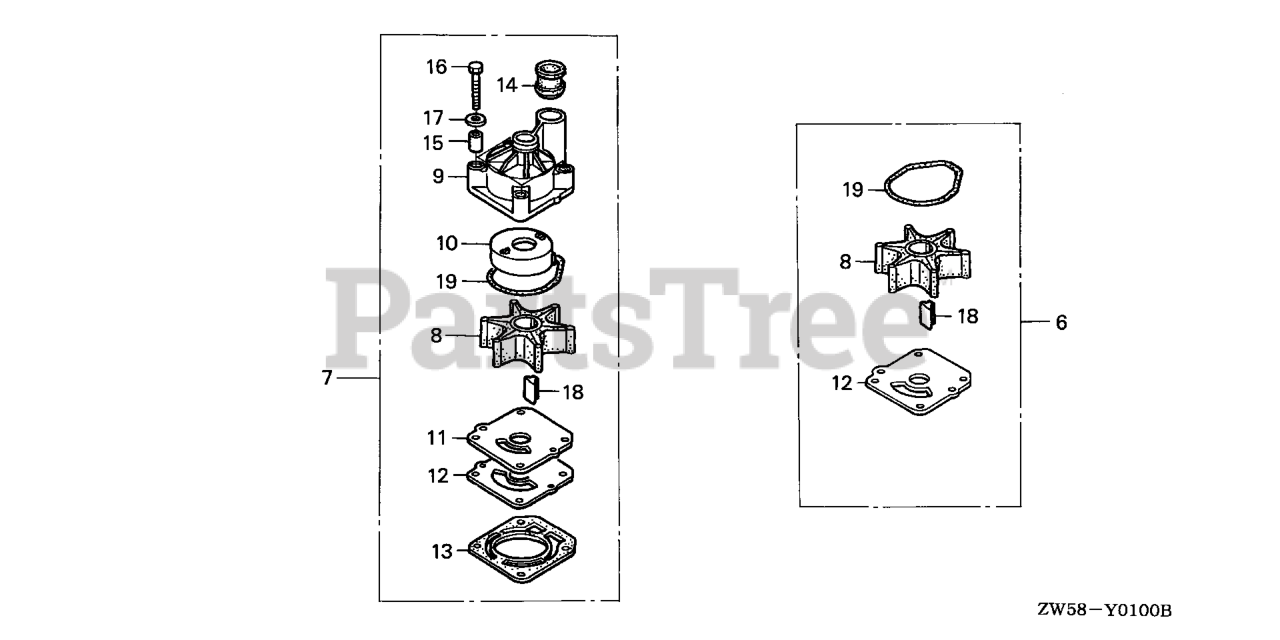

WATER PUMP IMPELLER KIT Parts Diagram

  • Title

6

Honda 06192-ZW1-000

PUMP KIT, IMPELLER

Note: (Optional)

$77.99

$

Usually ships in 3-6 days

0

7

Honda 06193-ZW5-030

SEE PART DETAILS - PRI; PUMP KIT, IMPELLER

Note: (Optional)

$224.99

$

Usually ships in 3-6 days

0

8

Honda 19210-ZW1-B04

SEE PART DETAILS - PRI; IMPELLER, PUMP

Note: (Optional)

$53.99

$

Usually ships in 3-6 days

0

9

Honda 19221-ZW1-B01

HOUSING, IMPELLER

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

10

Honda 19223-ZW1-B00

LINER, PUMP

Note: (Optional)

$41.99

$

Usually ships in 3-6 days

0

11

Honda 19231-ZW5-000

COVER, IMPELLER

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

12

Honda 19234-ZW1-B00

GASKET B, IMPELLER

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 19242-ZW1-B00

GASKET, WATER PUMP

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 19253-ZW1-B01

SEE PART DETAILS - PRI; RING, WATER TUBE SEAL

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

15

Honda 53109-ZV0-000

COLLAR, DISTANCE

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

16

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90514-921-000

WASHER (8MM)

Note: (Optional)

$1.49

$

In Stock, Qty 9

0

18

Honda 90752-ZW1-B02

KEY, WOODRUFF

Note: (Optional)

$17.99

$

Usually ships in 3-6 days

0

19

Honda 91356-ZW1-B00

O-RING, WATER PUMP

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0
