BF115 A3 LCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1400001 - BZBG-1499999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

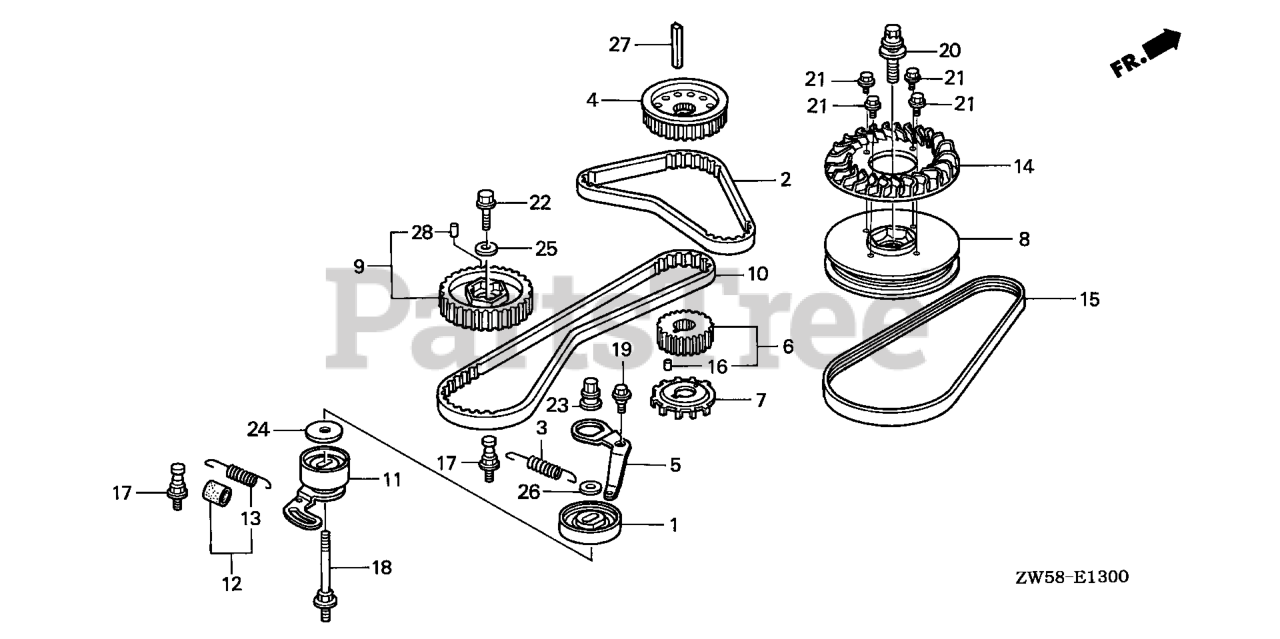

TIMING BELT Parts Diagram

  • Title
1

Honda 13404-ZW5-003

TENSIONER, BALANCER BELT

$121.99

$

Usually ships in 3-6 days

0

2

Honda 13405-PT0-004

BELT, BALANCER TIMING (UNITTA)

$147.99

$

Usually ships in 3-6 days

0

3

Honda 13407-ZW5-000

SPRING, BALANCER BELT ADJUSTER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 13408-ZW5-003

PULLEY, BALANCER BELT DRIVE

$254.99

$

Usually ships in 3-6 days

0

5

Honda 13415-ZW5-000

BRACKET, B. BELT ADJUST

$

$

Not available

6

Honda 13621-ZW5-003

PULLEY, TIMING BELT DRIVE

$92.99

$

Usually ships in 3-6 days

0

7

Honda 13622-ZW5-000

PLATE, TIMING BELT GUIDE

$37.99

$

Usually ships in 3-6 days

0

8

Honda 13811-ZW5-000

PULLEY, CRANKSHAFT

$97.99

$

Usually ships in 3-6 days

0

9

Honda 14210-ZW5-000

PULLEY, TIMING BELT DRIVEN

$202.99

$

Usually ships in 3-6 days

0

10

Honda 14400-ZW5-004

BELT, TIMING (99RU24 B-333)

$135.99

$

Usually ships in 3-6 days

0

11

Honda 14510-ZW5-003

TENSIONER, TIMING BELT

$136.99

$

Usually ships in 3-6 days

0

12

Honda 14514-ZW5-010

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTER

$5.99

$

Usually ships in 3-6 days

0

13

Honda 14516-ZW5-010

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTER

$

$

Not available

14

Honda 19510-ZW5-000

FAN, COOLING

$44.99

$

Usually ships in 3-6 days

0

15

Honda 31638-ZW5-004

BELT, ALTERNATOR (4PK720 M150)

$30.99

$

Usually ships in 3-6 days

0

16

Honda 41122-ZV0-000

PIN, VERTICAL SHAFT

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90012-ZV5-013

SEE PART DETAILS - PRI; BOLT, TIMING BELT ADJUSTING SPRING
(Superseded to 90012-ZZ5-M02)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90013-ZW5-010

BOLT, TIMING BELT ADJUSTER

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90016-ZW5-010

BOLT, BALANCER BELT ADJUSTER BRACKET

$

$

Not available

20

Honda 90017-RJA-003

SEE PART DETAILS - PRI; BOLT-WASHER (16X49)

$45.99

$

Usually ships in 3-6 days

0

21

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

22

Honda 90190-S04-000

BOLT, FLANGE (12X38)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90201-ZW5-010

NUT (10MM)

$7.99

$

Usually ships in 3-6 days

0

24

Honda 90401-ZW5-000

WASHER (10.5X44)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 90402-PC6-000

WASHER (12.5X34X5)

$28.99

$

Usually ships in 3-6 days

0

26

Honda 90501-MB7-610

WASHER (10.3X25)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90704-PT0-000

KEY (4.5X38.5)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 96220-40100

ROLLER (4X10)

$0.99

$

Usually ships in 3-6 days

0
