BF115 A1 LCA (BZBG) - Honda Marine Engine, Made in Japan (SN: BZBG-1200001 - BZBG-1299999) REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) Parts Diagram

Marine Engine, Made in Japan

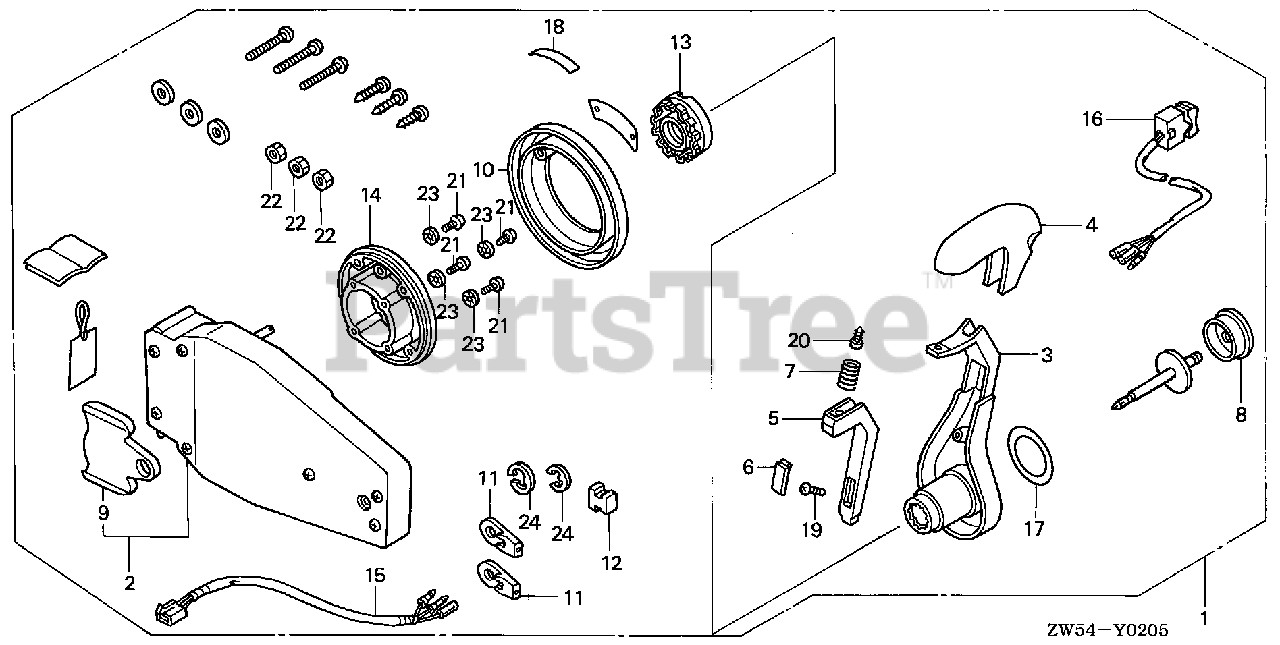

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) Parts Diagram

  • Title
1

Honda 06240-ZW7-U10

BOX KIT, REMOTE CONTROL

$362.99

$

Usually ships in 3-6 days

0

2

Honda 24810-ZW7-U11

HOUSING ASSY., L. (INNER)

$648.99

$

Usually ships in 3-6 days

0

3

Honda 24811-ZW7-U01

HANDLE, REMOTE CONTROL

$160.99

$

Usually ships in 3-6 days

0

4

Honda 24812-ZW7-U01

COVER, GRIP

$20.99

$

Usually ships in 3-6 days

0

5

Honda 24813-ZW7-U01

ARM, NEUTRAL LOCK

$22.99

$

Usually ships in 3-6 days

0

6

Honda 24814-ZW7-U01

COVER, LOCK ARM

$5.49

$

Usually ships in 3-6 days

0

7

Honda 24815-ZW7-U01

SPRING, NEUTRAL LOCK ARM

$12.99

$

Usually ships in 3-6 days

0

8

Honda 24816-ZW5-U01

SEE PART DETAILS - PRI; BUTTON, THROTTLE

$10.99

$

Usually ships in 3-6 days

0

9

Honda 24826-ZW5-U01

PLATE, DWELL

$20.99

$

Usually ships in 3-6 days

0

10

Honda 24830-ZW7-U01

COVER ASSY.

$36.99

$

Usually ships in 3-6 days

0

11

Honda 24831-ZW5-U01

TERMINAL, CABLE

$11.99

$

In Stock, only 2 left!

0

12

Honda 24832-ZW5-U01

SPACER, CABLE CLAMP

$5.49

$

Usually ships in 3-6 days

0

13

Honda 24832-ZW7-U01

HOLDER, NEUTRAL LOCK

$20.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

15

Honda 32530-ZW7-U20

SUB-HARNESS ASSY., POWER

$20.99

$

Usually ships in 3-6 days

0

16

Honda 35370-ZW7-U02

SEE PART DETAILS - PRI; SWITCH ASSY., POWER TRIM-TILT

$74.99

$

Usually ships in 3-6 days

0

17

Honda 87701-ZW7-U00

SEE PART DETAILS - SUP; MARK, HANDLE FLUSH MOUNT
(Superseded to 87701-ZW7-U01)

$8.99

$

Usually ships in 3-6 days

0

18

Honda 87703-ZW7-U00

MARK, FLUSH MOUNT

$6.99

$

Usually ships in 3-6 days

0

19

Honda 90101-ZW7-U01

SCREW, TRUSS (4X12)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90102-ZW5-U00

SCREW, PAN (5X10)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90102-ZW7-U01

SCREW, PAN (5X30)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90301-ZW7-U01

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90501-ZW5-U00

SEE PART DETAILS - PRI; WASHER, LOCK (5MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94540-06029

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0
