BF100 Z SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) SETTING FRAME + UPPER RUBBER SETTING Parts Diagram

Marine Engine, Made in Japan

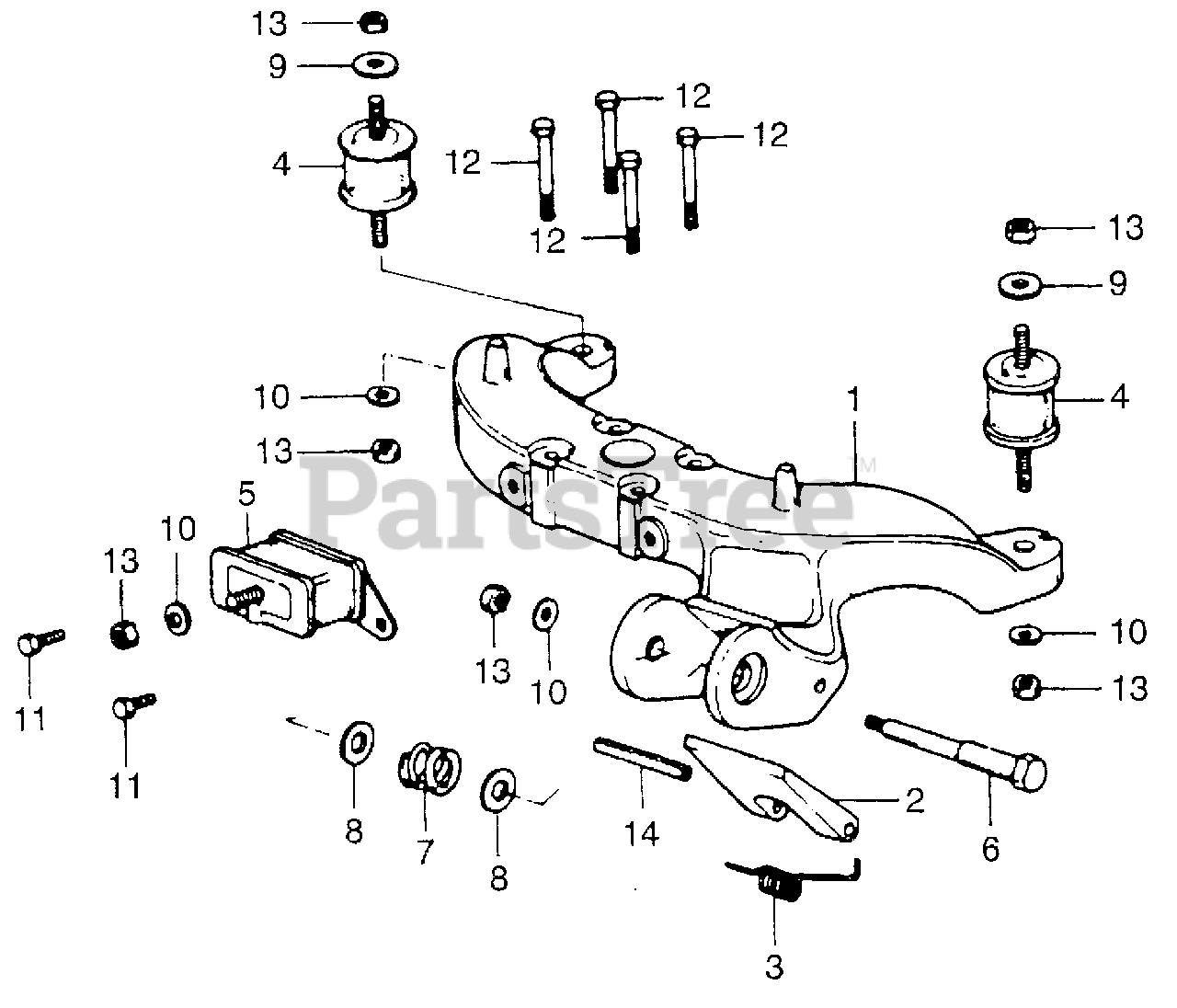

SETTING FRAME + UPPER RUBBER SETTING Parts Diagram

  • Title

1

Honda 50101-881-010ZA

SEE PART DETAILS - PRI; FRAME, SETTING *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 50111-921-300ZB

STOPPER, HANDLE *B9* (ATLANTIS BLUE)

$

$

Not available

3

Honda 50112-921-300

SPRING, HANDLE

$4.49

$

Usually ships in 3-6 days

0

4

Honda 50130-881-000

RUBBER, SETTING (UPPER)

$50.99

$

Usually ships in 3-6 days

0

5

Honda 50140-881-003

RUBBER, THRUST SETTING

$

$

Not available

6

Honda 53171-921-000

SCREW, HANDLE PIVOT

$

$

Not available

7

Honda 53172-921-003

SPRING, HANDLE PIVOT

$

$

Not available

8

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

10

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

11

Honda 92101-06014-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X14)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 92101-06040-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$

$

Not available

13

Honda 94002-08490-0S

NUT, HEX. (8MM)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94305-60503

PIN, SPRING (6X50)

$2.99

$

Usually ships in 3-6 days

0
