BF100 Z SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) OIL CASE + ENGINE COVER Parts Diagram

Marine Engine, Made in Japan

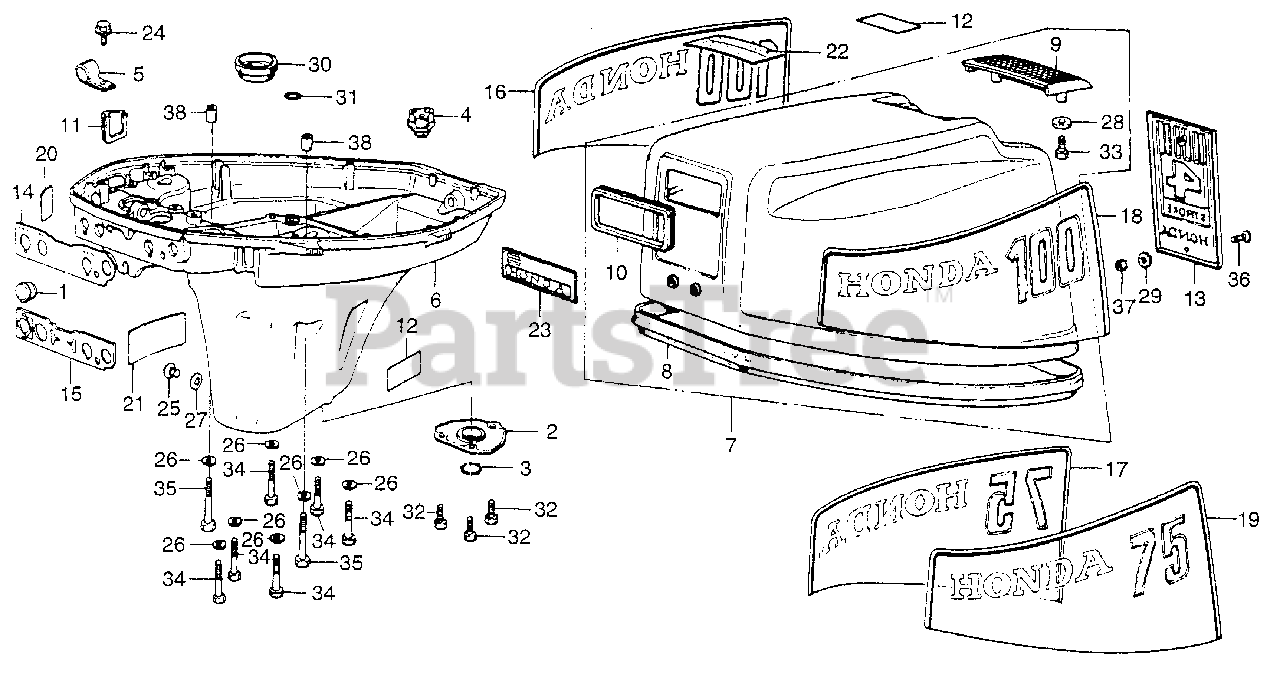

OIL CASE + ENGINE COVER Parts Diagram

  • Title

1

Honda 17918-881-000

GROMMET C, OIL CASE

$

$

Not available

2

Honda 18221-881-000

PLATE, EX.

$

$

Not available

3

Honda 18222-881-000

BAND, EX. SEAL

$7.49

$

Usually ships in 3-6 days

0

4

Honda 19262-921-000

MANIFOLD, TUBE

$

$

Not available

5

Honda 30549-881-010

SEE PART DETAILS - PRI; CLAMP, WIRE

$

$

Not available

6

Honda 40101-881-030ZA

SEE PART DETAILS - PRI; CASE, OIL *B9* (ATLANTIS BLUE)

$

$

Not available

7

Honda 63100-881-010WF

SEE PART DETAILS - PRI; COVER, ENGINE *NH24* (CERAMIC WHITE)

$

$

Currently unavailable

8

Honda 63102-881-300

SEAL, ENGINE COVER

$

$

Not available

9

Honda 63105-881-300WF

HANDLE, TILT *NH24* (CERAMIC WHITE)

$

$

Not available

10

Honda 63109-881-310

SEE PART DETAILS - PRI; SEAL, RECOIL

$

$

Not available

12

Honda 87103-881-010

SEE PART DETAILS - PRI; MARK, INSTRUCTION

Note: Use from Frame SN 1100481.

$

$

Currently unavailable

13

Honda 87121-881-000

EMBLEM, RR. (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 87123-881-020

SEE PART DETAILS - PRI; LABEL, INDICATION (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 87123-881-020

SEE PART DETAILS - PRI; LABEL, INDICATION (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 87131-881-670

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 87141-881-670

EMBLEM, L. SIDE COVER

$

$

Currently unavailable

20

Honda 87511-921-600

MARK, CHANGE

$

$

Currently unavailable

21

Honda 87531-935-630

LABEL, OIL FILLER POSITION

$

$

Currently unavailable

22

Honda 87538-935-602

SEE PART DETAILS - PRI; MARK, STARTER CAUTION

$

$

Currently unavailable

23

Honda 87551-921-600

MARK, FR.

$

$

Currently unavailable

24

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

25

Honda 90105-921-000

BOLT, OIL CHECK

$8.99

$

Usually ships in 3-6 days

0

26

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

27

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

28

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90519-921-000

WASHER, LOCK (4MM) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 91255-881-004

SEE PART DETAILS - PRI; SEAL, COUPLING (25X40X22)

$

$

Not available

31

Honda 91301-PM5-A01

SEE PART DETAILS - PRI; O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

33

Honda 92101-06016-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 92000-06032-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X32) (NOT AVAILABLE)

$

$

Currently unavailable

35

Honda 92101-06040-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$

$

Not available

36

Honda 93500-04010-0G

SEE PART DETAILS - PRI; SCREW, PAN (4X10)

$0.99

$

Usually ships in 3-6 days

0

37

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
