BF100 Z SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) IGNITION COIL + FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

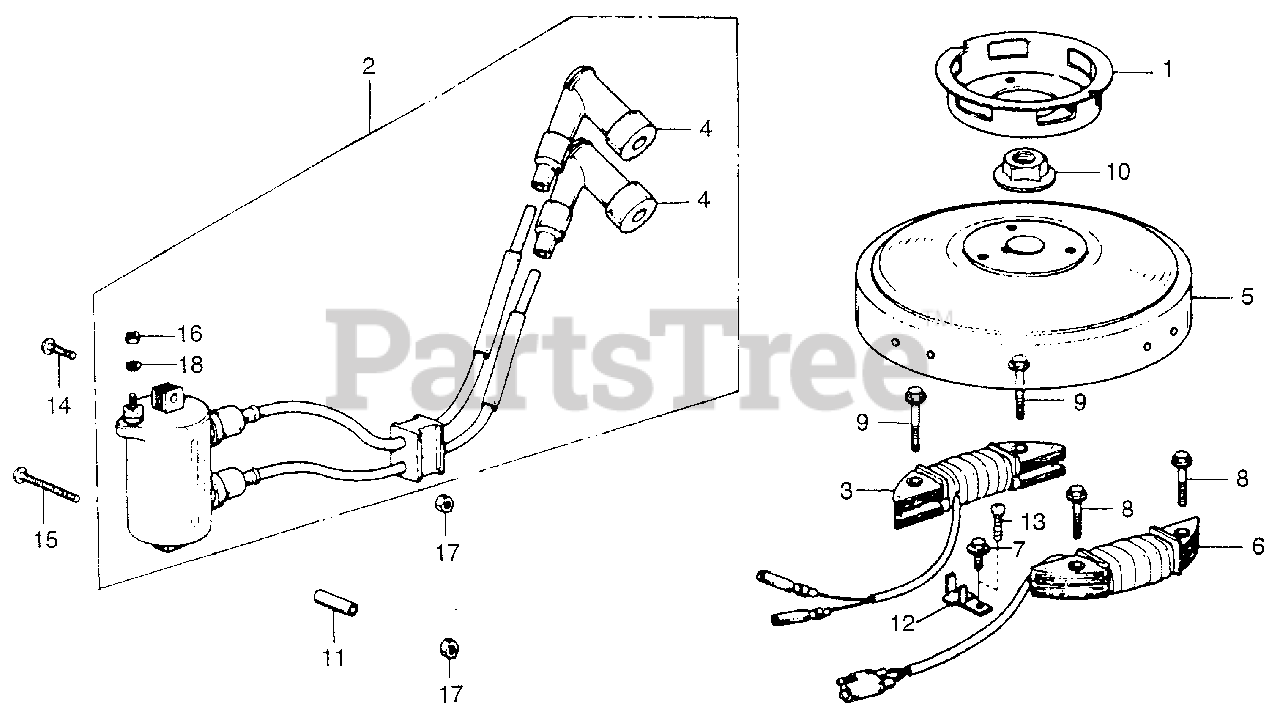

IGNITION COIL + FLYWHEEL Parts Diagram

  • Title

1

Honda 28571-881-000

PULLEY, STARTER

$

$

Not available

2

Honda 30500-881-004

COIL ASSY., A.C. IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 30540-881-004

COIL ASSY., PRIMARY

$

$

Not available

4

Honda 30700-881-010

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

5

Honda 31100-881-010ZC

SEE PART DETAILS - PRI; FLYWHEEL *TBLACK* (BLACK)

$294.99

$

Usually ships in 3-6 days

0

6

Honda 31630-881-004

COIL ASSY., CHARGE (NOT AVAILABLE)

$

$

Not available

7

Honda 90016-920-000

BOLT, FLANGE (6X12)

Note: Use up to Engine SN 1100640.

$2.49

$

In Stock, only 3 left!

0

7

Honda 90016-920-000

BOLT, FLANGE (6X12)

Note: Use from Engine SN 1100641.

$2.49

$

In Stock, only 3 left!

0

8

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

9

Honda 90124-881-000

BOLT, FLANGE (6X35)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90201-881-000

NUT, SPECIAL (14MM)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90742-881-000

SEE PART DETAILS - SUP; COLLAR, DISTANCE

$

$

Currently unavailable

12

Honda 91404-881-000

SEE PART DETAILS - PRI; CLIP, WIRE

$11.99

$

Usually ships in 3-6 days

0

13

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

$

$

Currently unavailable

13

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

14

Honda 93500-06025-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X25)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 93500-06025-0B

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

14

Honda 93500-06025-02

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

15

Honda 93500-06050-0B

SCREW, PAN (6X50)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94001-05330-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94001-06020-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 8

0

18

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
