BF100 Z SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) CARBURETOR + AIR GUIDE Parts Diagram

Marine Engine, Made in Japan

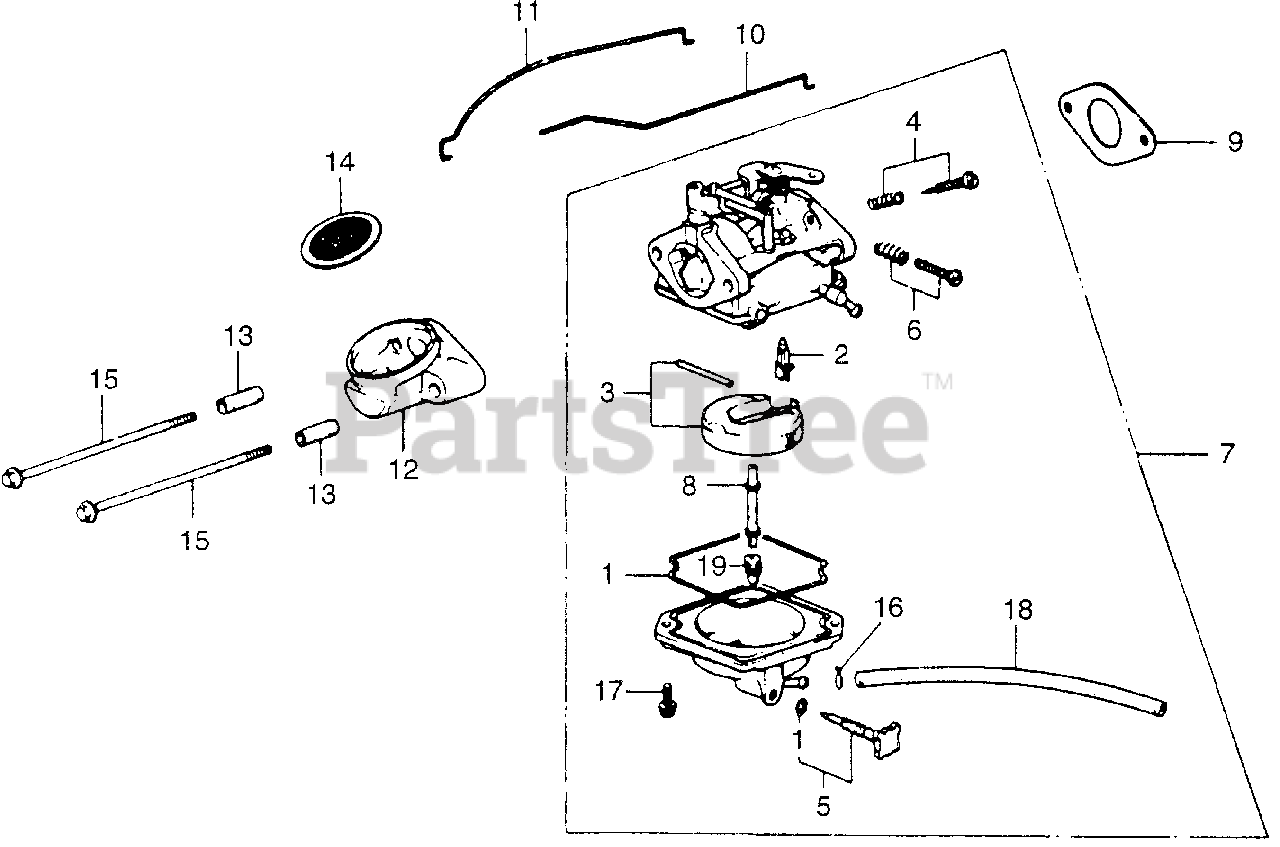

CARBURETOR + AIR GUIDE Parts Diagram

  • Title
1

Honda 16010-881-003

GASKET SET

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16011-147-305

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-881-741)

$31.99

$

Usually ships in 3-6 days

0

3

Honda 16013-881-003

SEE PART DETAILS - PRI; FLOAT SET

$

$

Not available

4

Honda 16016-881-003

SEE PART DETAILS - SUP; SCREW SET A

$

$

Not available

5

Honda 16024-ZV1-A00

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

5

Honda 16024-881-003

SEE PART DETAILS - SUP; SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16028-881-003

SCREW SET B (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

7

Honda 16100-881-033

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Not available

8

Honda 16166-881-003

NOZZLE, MAIN (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

9

Honda 16201-881-850

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, only 2 left!

0

10

Honda 16593-881-010

ROD, THROTTLE

$

$

Not available

11

Honda 16622-881-000

ROD, CHOKE

$

$

Not available

12

Honda 17201-881-020

SEE PART DETAILS - PRI; GUIDE, AIR (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17202-921-000

COLLAR, DISTANCE

$

$

Not available

14

Honda 17203-881-000

TRAP, FLAME

$

$

Not available

15

Honda 90012-882-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X97)
(Superseded to 90012-882-010)

$

$

Not available

16

Honda 90605-921-000

CLIP B7, TUBE

$1.99

$

In Stock, only 2 left!

0

17

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 95001-35003-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X140)

$31.99

$

In Stock, only 1 left!

0

19

Honda 99101-124-0720

JET, MAIN (#72)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0780

JET, MAIN (#78)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0800

JET, MAIN (#80)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0820

JET, MAIN (#82)

$11.99

$

Usually ships in 3-6 days

0
