BF100 Z LA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) RECOIL STARTER Parts Diagram

Marine Engine, Made in Japan

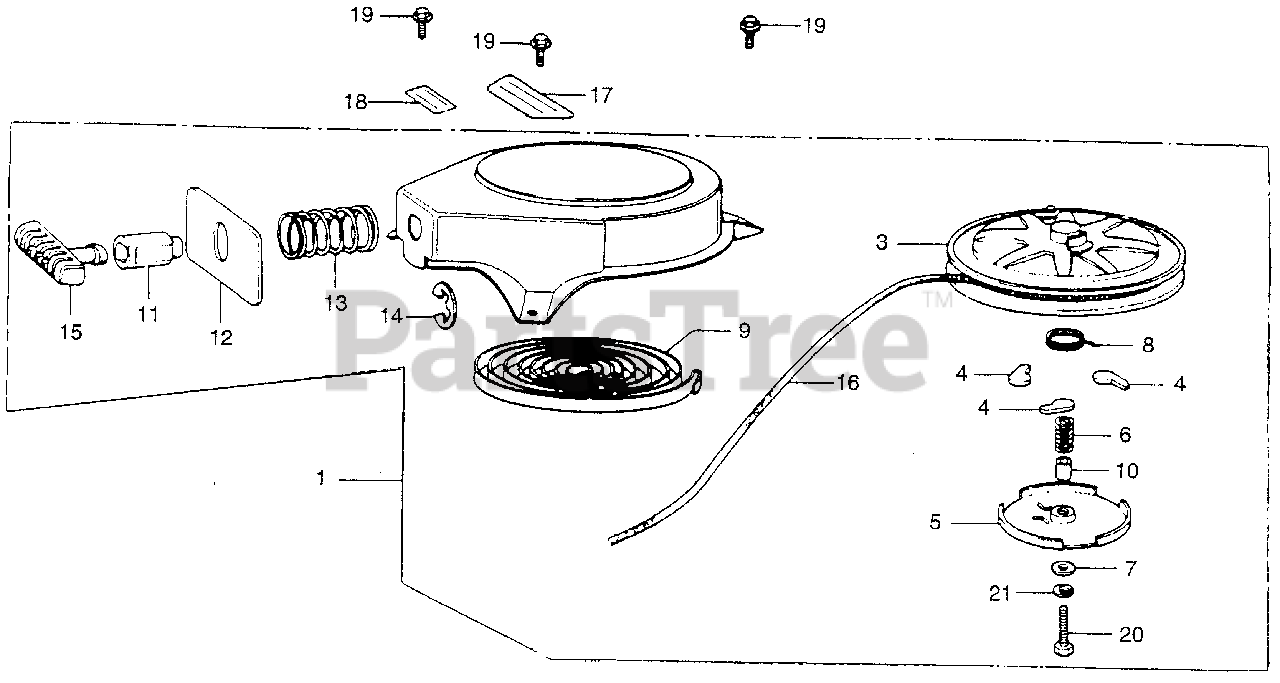

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-881-016

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL

$

$

Not available

3

Honda 28421-935-000

PULLEY, RECOIL STARTER

$33.99

$

Usually ships in 3-6 days

0

4

Honda 28441-848-650

RATCHET, STARTER

$

$

Not available

5

Honda 28443-935-000

PLATE, FRICTION

$29.99

$

Usually ships in 3-6 days

0

6

Honda 28444-921-000

SPRING, FRICTION

$4.99

$

In Stock, only 1 left!

0

7

Honda 28445-935-000

WASHER

$3.49

$

Usually ships in 3-6 days

0

8

Honda 28447-935-000

SPRING SET

$

$

Not available

9

Honda 28451-921-000

SPRING, RECOIL STARTER

$

$

Not available

10

Honda 28452-921-000

COLLAR

$

$

Not available

11

Honda 28454-921-000

GUIDE, ROPE

$

$

Not available

12

Honda 28455-881-006

PLATE, SEAL

$

$

Not available

13

Honda 28456-921-000

SPRING, SEAL PLATE

$

$

Not available

14

Honda 28457-921-000

E-RING

$

$

Not available

15

Honda 28461-921-010

GRIP, STARTER

$

$

Not available

16

Honda 28471-921-000

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#4X65") (NA USE ALT:08540-ZG921-11)

$

$

Not available

17

Honda 83537-881-600

SEE PART DETAILS - PRI; MARK, RECOIL STARTER CAUTION

$

$

Not available

18

Honda 87513-873-710

LABEL, COMPLIANCE

Note: Use up to Engine SN 1101371.

$

$

Not available

19

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 3 left!

0

20

Honda 92000-06025-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

$

$

Currently unavailable
