BF100 SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1000001 - BF100-1020309) SAFETY SWITCH + VERTICAL STARTER Parts Diagram

Marine Engine, Made in Japan

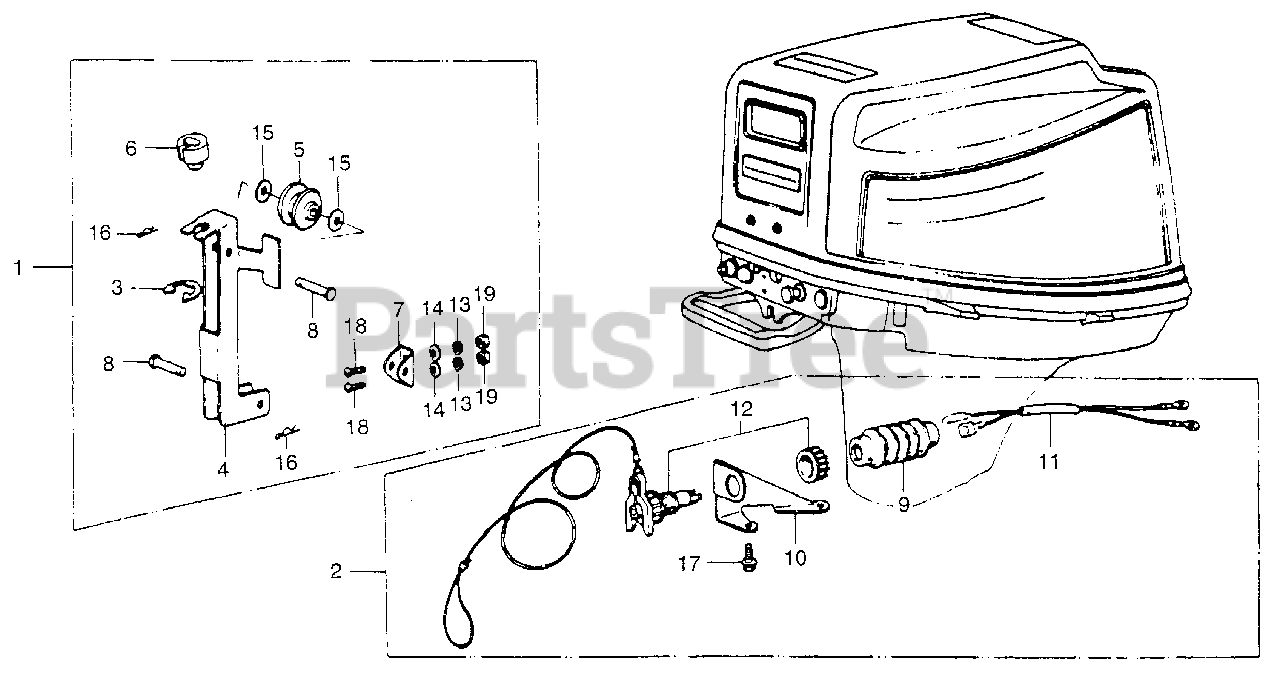

SAFETY SWITCH + VERTICAL STARTER Parts Diagram

  • Title

1

Honda 06280-881-810

STARTER KIT, VERTICAL (N/A: SEE COMPONENTS)

$

$

Currently unavailable

2

Honda 06360-881-810

SEE PART DETAILS - SUP; SWITCH KIT, SAFETY

$

$

Currently unavailable

3

Honda 28457-921-000

E-RING

$

$

Not available

4

Honda 28480-881-810

STAY, VERTICAL STARTER

$98.99

$

Usually ships in 3-6 days

0

5

Honda 28481-881-810

IDLER, VERTICAL STARTER

$63.99

$

Usually ships in 3-6 days

0

6

Honda 28482-881-810

GUIDE, ROPE

$17.99

$

Usually ships in 3-6 days

0

7

Honda 28483-881-810

BRACKET, VERTICAL STARTER

$10.99

$

Usually ships in 3-6 days

0

8

Honda 28484-881-810

PIN, VERTICAL STARTER

$38.99

$

Usually ships in 3-6 days

0

9

Honda 36102-881-810

RUBBER, SEALING

$

$

Currently unavailable

10

Honda 36103-881-810

STAY, SAFETY SWITCH

$25.99

$

Usually ships in 3-6 days

0

11

Honda 36105-881-810

WIRE B, SWITCH

$

$

Currently unavailable

12

Honda 36106-881-515

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY

$

$

Not available

12

Honda 36106-881-810

SEE PART DETAILS - SUP; SWITCH, SAFETY
(Superseded to 36106-881-515)

$

$

Not available

13

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.99

$

In Stock, only 2 left!

0

14

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

15

Honda 90513-921-000

WASHER (10MM)

$2.99

$

In Stock, only 1 left!

0

16

Honda 91402-881-000

PIN, LOCK (10MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 93500-06012-4J

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94001-06490

SEE PART DETAILS - SUP; NUT, HEX. (6MM)

$

$

Currently unavailable
