BF100 SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1000001 - BF100-1020309) PROPELLER SHAFT + PROPELLER Parts Diagram

Marine Engine, Made in Japan

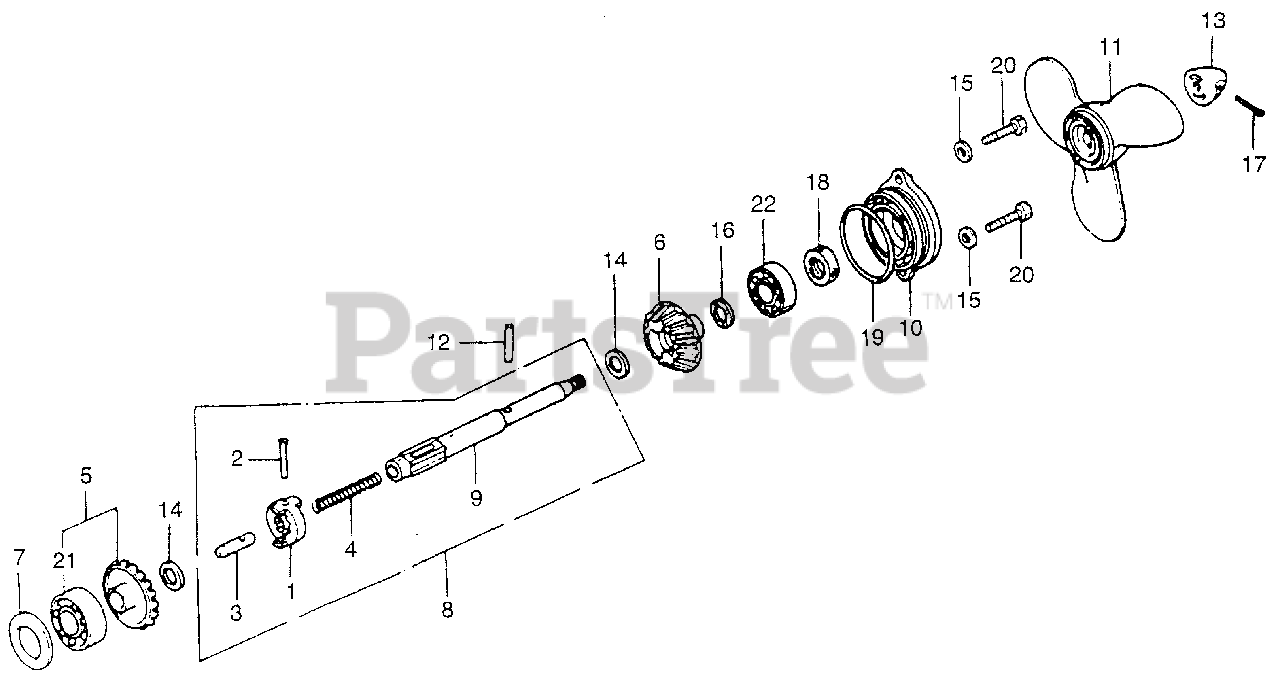

PROPELLER SHAFT + PROPELLER Parts Diagram

  • Title

1

Honda 24101-935-300

SHIFTER, CLUTCH

$

$

Not available

2

Honda 24102-935-300

PIN, SHIFTER (4X35)

$4.49

$

In Stock, only 1 left!

0

3

Honda 24122-921-300

SLIDER, SHIFT

$

$

Not available

4

Honda 24123-921-300

SPRING, SHIFT

$14.99

$

Usually ships in 3-6 days

0

5

Honda 41140-881-000

GEAR, FR. BEVEL

$

$

Not available

6

Honda 41150-881-000

GEAR, RR. BEVEL

$241.99

$

Usually ships in 3-6 days

0

7

Honda 41157-921-000

SHIM A, GEAR (0.10MM)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 41158-921-000

SHIM B, GEAR (0.15MM)

$5.99

$

Usually ships in 3-6 days

0

8

Honda 41160-881-000

SHAFT, PROPELLER

$248.99

$

Usually ships in 3-6 days

0

9

Honda 41161-881-300

SHAFT, PROPELLER

$

$

Not available

10

Honda 41201-881-000ZA

HOLDER, PROPELLER SHAFT *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 58130-881-840ZB

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE *NH283* (STIN GRAY)

$154.99

$

Usually ships in 3-6 days

0

12

Honda 58131-881-000

PIN, SHEAR

$5.99

$

In Stock, only 2 left!

0

13

Honda 58141-881-010

SEE PART DETAILS - PRI; CAP, PROPELLER

$22.99

$

Usually ships in 3-6 days

0

14

Honda 90503-921-020

WASHER (17MM)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

16

Honda 90533-921-000

WASHER C, GEAR (2.10MM)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90534-921-000

WASHER D, GEAR (2.15MM)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90757-921-000

PIN, COTTER (3MM)
(Superseded to 90757-881-505)

$1.99

$

In Stock, only 2 left!

0

18

Honda 91251-935-004

SEE PART DETAILS - PRI; SEAL, WATER (17MM)

$16.99

$

In Stock, only 1 left!

0

19

Honda 91351-881-000

O-RING (66X2.5)

$5.99

$

In Stock, only 2 left!

0

20

Honda 92101-06020-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 96100-60050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6005)

$14.99

$

Usually ships in 3-6 days

0

22

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
