BF100 SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1000001 - BF100-1020309) INLET MANIFOLD + THERMOSTAT Parts Diagram

Marine Engine, Made in Japan

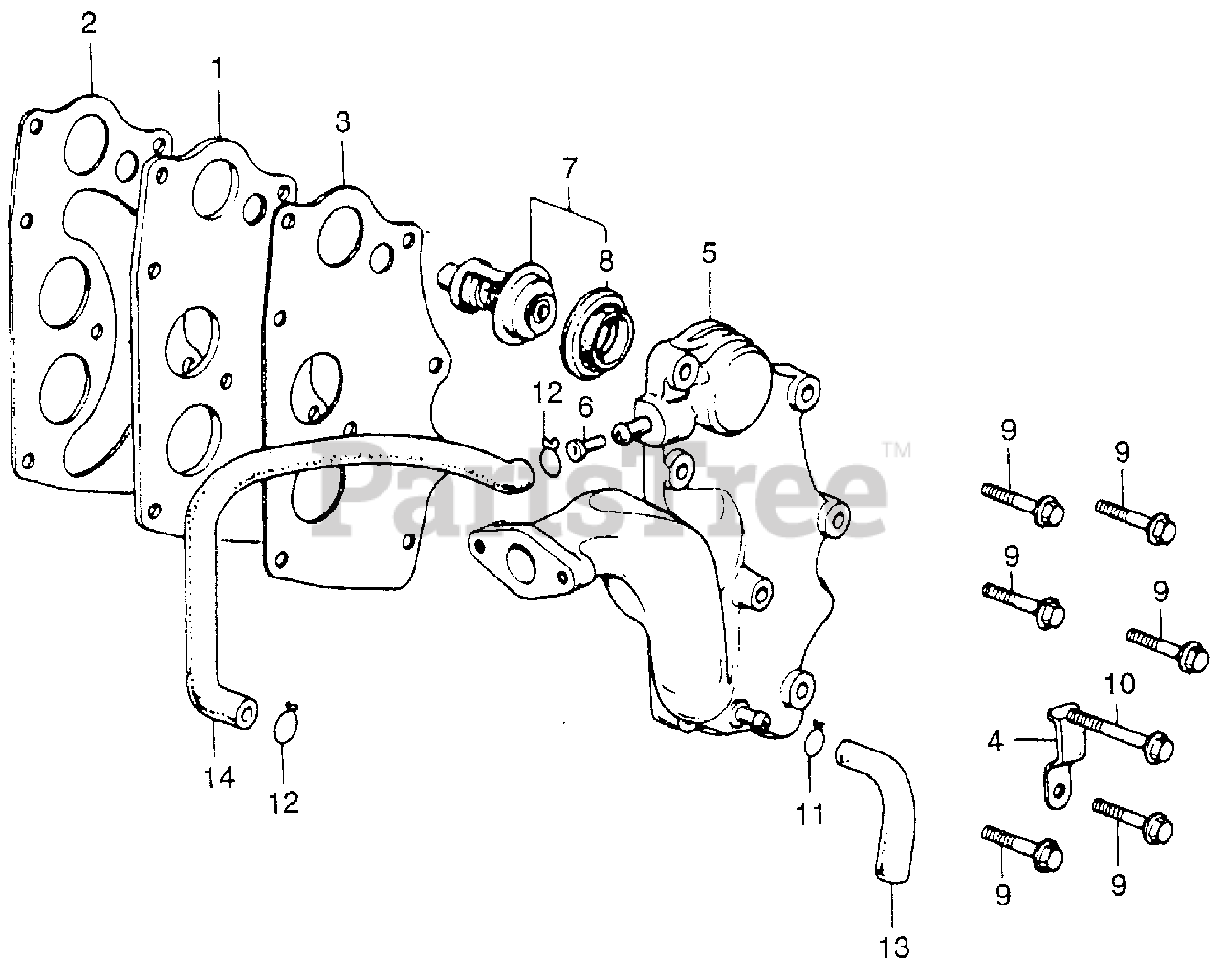

INLET MANIFOLD + THERMOSTAT Parts Diagram

  • Title

1

Honda 12515-881-000

PLATE, EX. CHAMBER

$

$

Not available

2

Honda 12516-881-010

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER

$

$

Currently unavailable

2

Honda 12516-881-850

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12516-881-003)

$23.99

$

In Stock, only 1 left!

0

3

Honda 12517-881-306

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12517-881-003)

$7.49

$

In Stock, only 1 left!

0

3

Honda 12517-881-850

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12517-881-003)

$7.49

$

In Stock, only 1 left!

0

4

Honda 16731-921-000

CLAMP, FUEL TUBE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17100-881-740ZA

SEE PART DETAILS - PRI; MANIFOLD, IN. *NH8* (DARK GRAY)

$144.99

$

Usually ships in 3-6 days

0

6

Honda 17103-881-000

NOZZLE, THROTTLE (NOT AVAILABLE)

Note: Use from Engine SN 1008730.

$

$

Not available

7

Honda 19300-881-741

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

Note: Use up to Engine SN 1004085.

$63.99

$

In Stock, only 1 left!

0

7

Honda 19300-881-741

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$63.99

$

In Stock, only 1 left!

0

7

Honda 19300-921-003

SEE PART DETAILS - SUP; THERMOSTAT ASSY.
(Superseded to 19300-881-741)

Note: Use up to Engine SN 1004085.

$63.99

$

In Stock, only 1 left!

0

7

Honda 19300-921-003

SEE PART DETAILS - SUP; THERMOSTAT ASSY.
(Superseded to 19300-881-741)

$63.99

$

In Stock, only 1 left!

0

8

Honda 19302-921-003

RUBBER, THERMOSTAT

$10.99

$

In Stock, only 1 left!

0

9

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

10

Honda 90125-881-000

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90604-881-000

SEE PART DETAILS - SUP; CLIP, TUBE (B12)

$

$

Not available

13

Honda 90806-881-000

TUBE, WATER CHECK (NOT AVAILABLE)

$

$

Not available

14

Honda 90807-881-000

TUBE, BYPASS

$

$

Not available
