BF100 SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1000001 - BF100-1020309) EXTENSION CASE + GEAR CASE + SHIFT ROD Parts Diagram

Marine Engine, Made in Japan

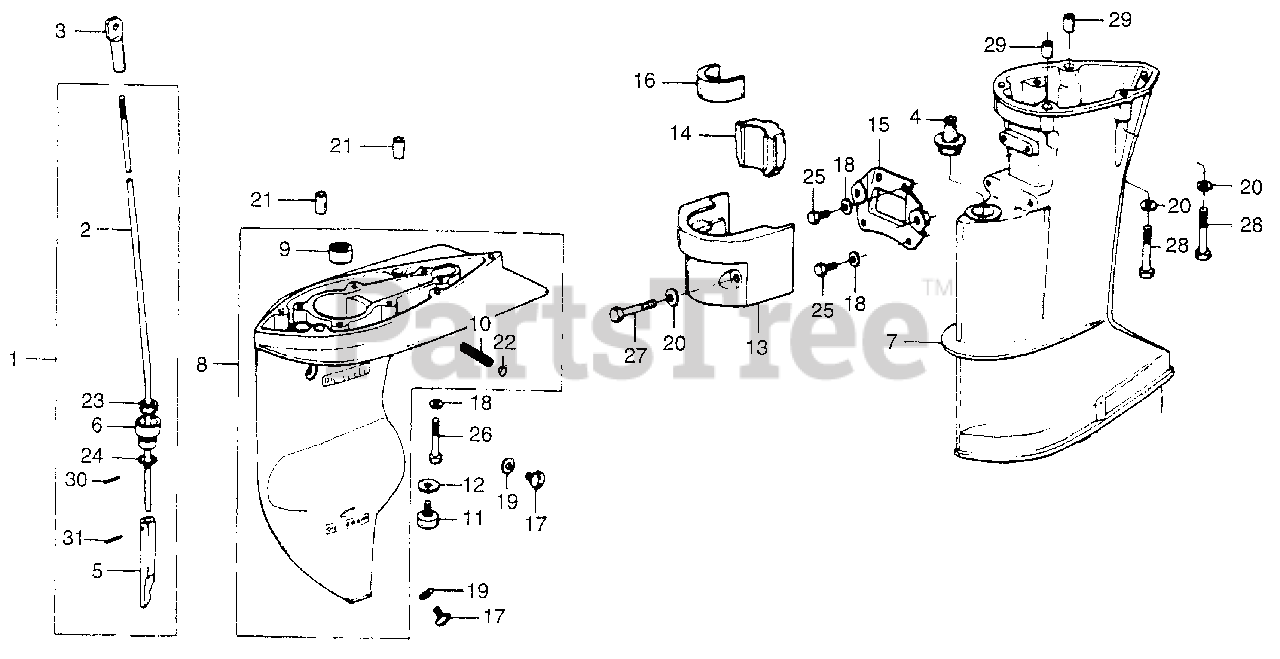

EXTENSION CASE + GEAR CASE + SHIFT ROD Parts Diagram

  • Title

1

Honda 24310-881-010

SEE PART DETAILS - PRI; ROD, GEARSHIFT (S)

$

$

Not available

2

Honda 24311-881-300

ROD, GEARSHIFT (S)

$51.99

$

Usually ships in 3-6 days

0

3

Honda 24312-881-000

JOINT, SHIFT ROD

$34.99

$

Usually ships in 3-6 days

0

4

Honda 24313-921-003

GROMMET, ROD

$

$

Not available

5

Honda 24341-ZV4-300

SEE PART DETAILS - PRI; ROD, PUSH

$

$

Not available

6

Honda 24343-881-300

HOLDER, SEAL

$29.99

$

Usually ships in 3-6 days

0

7

Honda 40201-881-000ZA

CASE, EXTENSION *B9* (S) (ATLANTIS BLUE)

$

$

Currently unavailable

8

Honda 41100-881-305ZA

SEE PART DETAILS - PRI; CASE, GEAR *B9* (ATLANTIS BLUE)

$

$

Currently unavailable

9

Honda 41103-935-003

BEARING, NEEDLE (15X21X16)

$13.99

$

In Stock, only 1 left!

0

10

Honda 41104-921-320

SCREEN, WATER

$10.99

$

Usually ships in 3-6 days

0

11

Honda 41106-881-000

SEE PART DETAILS - PRI; METAL, ANODE

$

$

Not available

13

Honda 50121-881-000ZA

HOUSING, SETTING (LOWER) *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 50151-881-000

RUBBER A, MOUNTING (LOWER)

$32.99

$

Usually ships in 3-6 days

0

15

Honda 50152-881-000

PLATE, SETTING (LOWER)

$

$

Not available

16

Honda 50153-881-000

RUBBER B, SETTING (LOWER)

$

$

Not available

17

Honda 90105-921-000

BOLT, OIL CHECK

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

19

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

20

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

21

Honda 90702-881-000

PIN, DOWEL (8X10)

$

$

Not available

22

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

23

Honda 91253-921-003

SEAL, WATER (6MM)

$15.99

$

In Stock, only 1 left!

0

24

Honda 91303-MG7-003

SEE PART DETAILS - PRI; O-RING (13.8X2.5)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 92101-06040-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$

$

Not available

27

Honda 92000-08040-4J

SEE PART DETAILS - SUP; BOLT, HEX. (8X40)

$

$

Currently unavailable

27

Honda 92101-08040-4J

SEE PART DETAILS - PRI; BOLT, HEX. (8X40)

$5.49

$

In Stock, only 2 left!

0

28

Honda 92101-08050-4J

SEE PART DETAILS - PRI; BOLT, HEX. (8X50)

$6.99

$

Usually ships in 3-6 days

0

29

Honda 94301-10140

SEE PART DETAILS - PRI; PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 94305-25122

PIN, SPRING (2.5X12)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
