BF100 LA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1000001 - BF100-1020309) WATER PUMP + VERTICAL SHAFT Parts Diagram

Marine Engine, Made in Japan

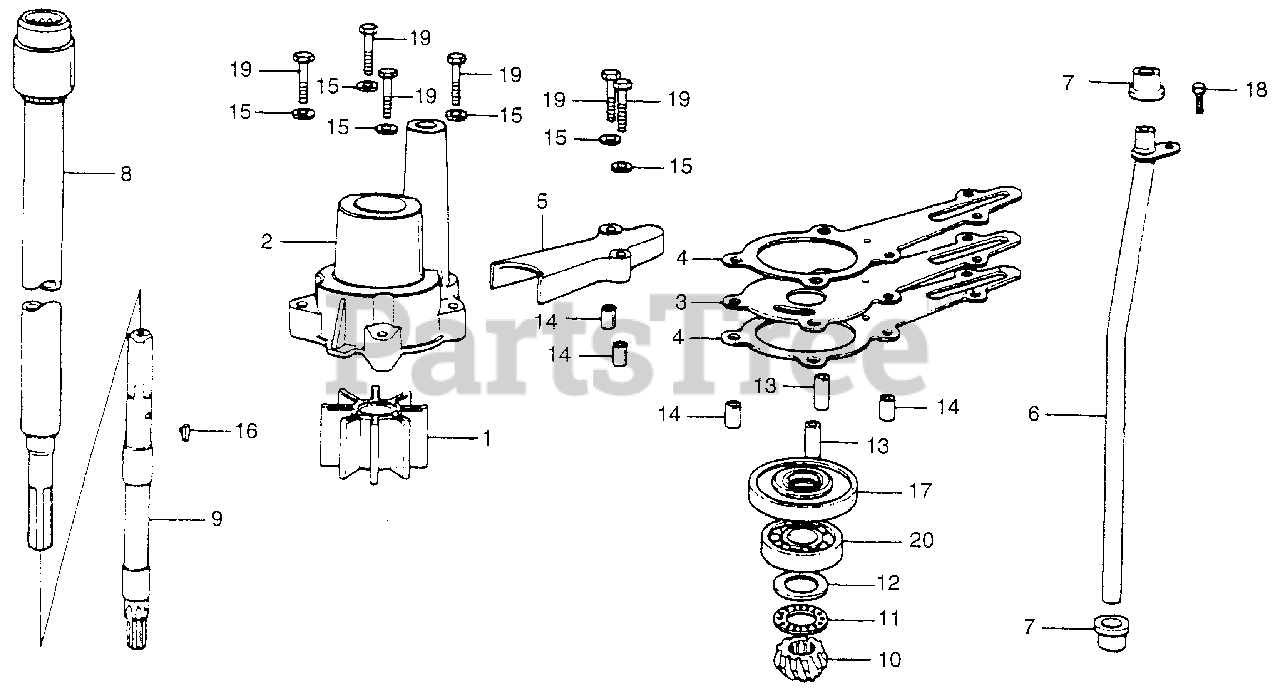

WATER PUMP + VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 19210-935-003

IMPELLER, PUMP

$45.99

$

Usually ships in 3-6 days

0

2

Honda 19220-881-305

SEE PART DETAILS - PRI; HOUSING, IMPELLER

$142.99

$

Usually ships in 3-6 days

0

3

Honda 19231-881-000

SEE PART DETAILS - SUP; COVER, IMPELLER
(Superseded to 19231-881-840)

$27.99

$

In Stock, only 1 left!

0

3

Honda 19231-881-840

SEE PART DETAILS - PRI; COVER, IMPELLER

$27.99

$

In Stock, only 1 left!

0

4

Honda 19232-881-306

SEE PART DETAILS - PRI; GASKET, IMPELLER

$8.49

$

In Stock, Qty 9

0

5

Honda 19233-881-305

SEE PART DETAILS - PRI; HOLDER, IMPELLER COVER

$

$

Not available

6

Honda 19251-881-010

SEE PART DETAILS - PRI; TUBE, WATER (S)

$

$

Not available

6

Honda 19251-881-701

SEE PART DETAILS - PRI; TUBE, WATER (L) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 19252-921-020

RING, SEAL

$4.49

$

In Stock, only 1 left!

0

8

Honda 41110-881-841

SEE PART DETAILS - PRI; SHAFT, VERTICAL (S)

$

$

Not available

8

Honda 41110-881-941

SEE PART DETAILS - PRI; SHAFT, VERTICAL (L)

$127.99

$

Usually ships in 3-6 days

0

9

Honda 41121-881-000

SEE PART DETAILS - PRI; SHAFT, PINION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 41131-881-000

PINION, BEVEL

$

$

Not available

11

Honda 41132-935-003

BEARING, THRUST (15MM)

$

$

Not available

12

Honda 41135-935-003

WASHER A, THRUST BEARING (2.00MM)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 41136-935-003

WASHER B, THRUST BEARING (2.05MM)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 41137-935-003

WASHER C, THRUST BEARING (2.10MM)

$

$

Not available

13

Honda 90111-935-000

COLLAR A, DISTANCE

$

$

Not available

14

Honda 90112-881-000

COLLAR B, DISTANCE

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

16

Honda 90751-921-010

KEY, IMPELLER

$

$

Not available

17

Honda 91252-935-004

SEE PART DETAILS - PRI; SEAL, WATER (15MM) (NOK)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 92101-06028-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302)

$11.99

$

Usually ships in 3-6 days

0
