BF100 F SA (B100S) - Honda Marine Engine, Made in Japan (SN: B100S-1700001 - B100S-1800000) FUEL TANK (1) Parts Diagram

Marine Engine, Made in Japan

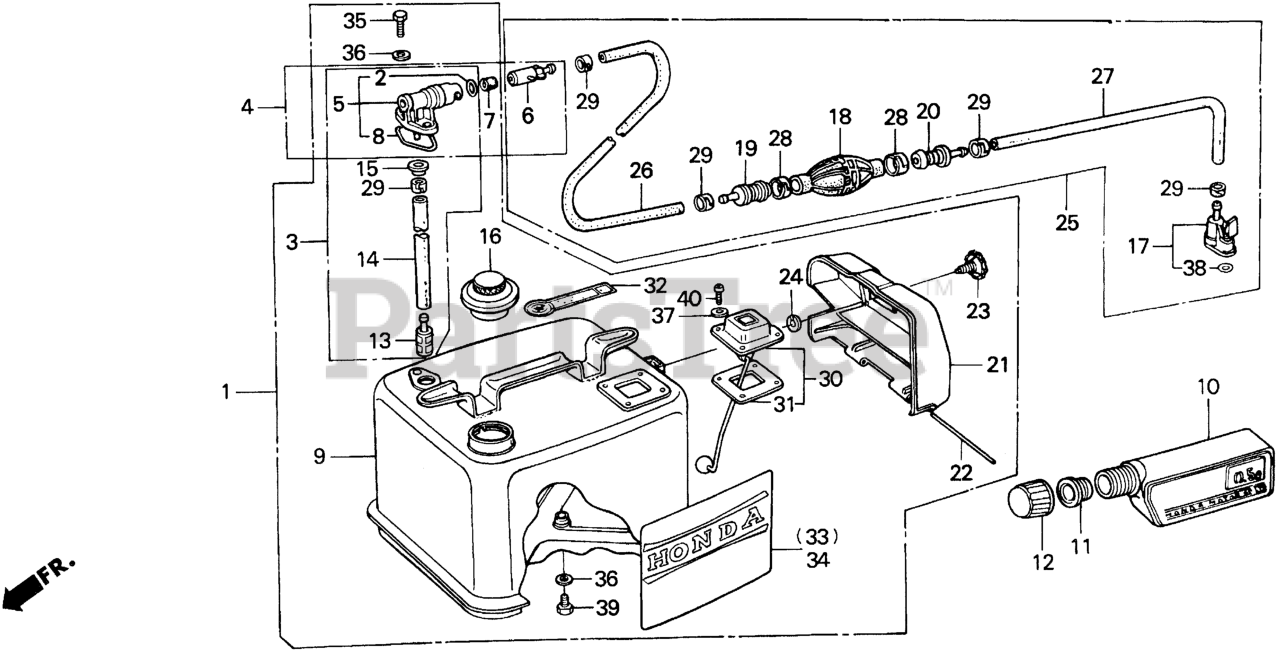

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 061C7-881-711H

SEE PART DETAILS - PRI; TANK KIT, FUEL *R8* (BRIGHT RED) (NOT AVAILABLE)

$412.99

$

Usually ships in 3-6 days

0

2

Honda 16075-935-006

O-RING

$

$

Not available

3

Honda 16900-881-000

SEE PART DETAILS - SUP; JOINT A, FUEL

$

$

Currently unavailable

4

Honda 16950-935-016

SEE PART DETAILS - PRI; JOINT, FUEL CONSENT

$

$

Currently unavailable

5

Honda 16951-935-006

JOINT A, FUEL CONSENT

$

$

Not available

6

Honda 16952-935-016

SEE PART DETAILS - PRI; JOINT B, FUEL CONSENT

$

$

Not available

7

Honda 16953-935-000

ABSORBER, FUEL

$5.49

$

In Stock, only 2 left!

0

8

Honda 16962-865-010

RING, PETCOCK SEAL

$

$

Not available

9

Honda 17500-881-711H

TANK, FUEL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Currently unavailable

9

Honda 17500-881-020ZA

TANK, FUEL *R8* (BRIGHT RED)

Note: Use from Frame SN 1710460.

$

$

Currently unavailable

10

Honda 17570-921-000

SEE PART DETAILS - PRI; TANK, OIL

$

$

Not available

11

Honda 17572-801-810

CAP, SUB-TANK (INNER) (NOT AVAILABLE)

$

$

Not available

12

Honda 17573-801-810

SEE PART DETAILS - PRI; CAP, SUB-TANK

$

$

Currently unavailable

13

Honda 17583-881-000

FILTER, FUEL

$

$

Not available

14

Honda 17611-935-000

TUBE (INNER)

$

$

Not available

16

Honda 17620-881-713

SEE PART DETAILS - PRI; CAP, FUEL FILLER (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Not available

16

Honda 17620-881-043

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-881-053)

Note: Use from Frame SN 1710460.

$

$

Not available

17

Honda 17650-921-003ZB

SEE PART DETAILS - PRI; CONNECTOR, FUEL *NH1* (BLACK)

$48.99

$

Usually ships in 3-6 days

0

18

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$17.99

$

Usually ships in 3-6 days

0

19

Honda 17670-921-000

VALVE, IN.

$

$

Not available

20

Honda 17680-921-000

VALVE, OUTLET

$12.99

$

Usually ships in 3-6 days

0

21

Honda 17696-921-010

BOX, TOOL (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Not available

21

Honda 17690-881-000

BOX, TOOL

Note: Use from Frame SN 1710460.

$

$

Not available

22

Honda 17697-921-000

BAR (3X150) (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Currently unavailable

23

Honda 17698-921-000

LATCH, TOOL BOX (NOT AVAILABLE)

$

$

Not available

24

Honda 17699-921-000

STOPPER, LATCH (NOT AVAILABLE)

$

$

Not available

25

Honda 17700-935-000B

SEE PART DETAILS - PRI; TUBE, FUEL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Currently unavailable

25

Honda 17700-881-000ZD

SEE PART DETAILS - SUP; TUBE, FUEL *NH1* (BLACK)

Note: Use from Frame SN 1710460.

$

$

Not available

26

Honda 17701-921-000

TUBE, FUEL LONG (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Not available

26

Honda 17701-881-000

TUBE, FUEL LONG

Note: Use from Frame SN 1710460.

$

$

Not available

27

Honda 17702-921-000

TUBE, FUEL SHORT

$9.99

$

Usually ships in 3-6 days

0

28

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

29

Honda 17704-921-000

BAND, TUBE CLIP (11MM)

$

$

Not available

30

Honda 17800-881-023

METER ASSY., FUEL

Note: Use up to Frame SN 1710459.

$

$

Not available

30

Honda 17800-ZV1-611

METER ASSY., FUEL

Note: Use from Frame SN 1710460.

$

$

Not available

31

Honda 17803-881-003

GASKET (NOT AVAILABLE)

Note: Use up to Frame SN 1710459.

$

$

Not available

31

Honda 17803-GC3-003

GASKET, FUEL METER

Note: Use from Frame SN 1710460.

$11.99

$

Usually ships in 3-6 days

0

32

Honda 87571-881-671

MARK, TANK CAUTION (ENGLISH/FRENCH)

$5.49

$

Usually ships in 3-6 days

0

33

Honda 87573-881-C41

MARK B, TANK (ENGLISH)

$15.99

$

Usually ships in 3-6 days

0

34

Honda 87574-881-670

MARK, TANK (FRENCH)

$12.99

$

Usually ships in 3-6 days

0

35

Honda 90120-881-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X16)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90445-700-000

GASKET, FIBER (6MM)

Note: Use up to Frame SN 1710459.

$1.99

$

In Stock, Qty 7

0

36

Honda 90445-700-000

GASKET, FIBER (6MM)

Note: Use from Frame SN 1710460.

$1.99

$

In Stock, Qty 7

0

37

Honda 90540-881-000

GASKET, FIBER (5MM)

Note: Use from Frame SN 1710460.

$1.99

$

Usually ships in 3-6 days

0

38

Honda 91353-921-310

O-RING (5.5MM)

$2.49

$

In Stock, only 1 left!

0

39

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

Note: Use up to Frame SN 1704645.

$2.49

$

Usually ships in 3-6 days

0

39

Honda 93301-06012-4J

BOLT, HEX. (6X12)

Note: Use from Frame SN 1704646 to 1710459.

$

$

Not available

40

Honda 93500-05008-4J

SCREW, PAN (5X8)

Note: Use up to Frame SN 1710459.

$1.99

$

Usually ships in 3-6 days

0

40

Honda 93500-05010-4J

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

Note: Use from Frame SN 1710460.

$1.99

$

Usually ships in 3-6 days

0
