BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) VERTICAL STARTER Parts Diagram

Marine Engine, Made in Japan

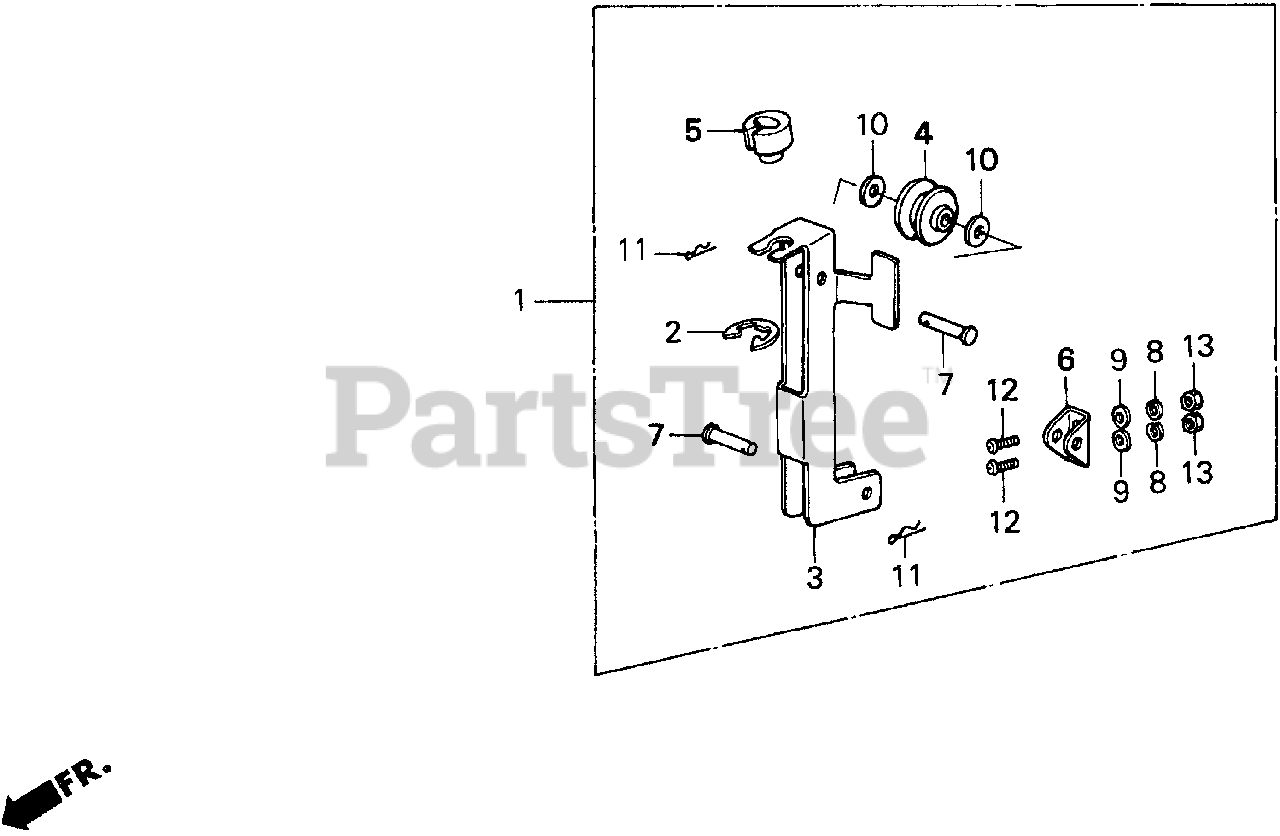

VERTICAL STARTER Parts Diagram

  • Title

1

Honda 06280-881-810

STARTER KIT, VERTICAL

$

$

Currently unavailable

2

Honda 28457-921-000

E-RING

$

$

Not available

3

Honda 28480-881-810

STAY, VERTICAL STARTER

$98.99

$

Usually ships in 3-6 days

0

4

Honda 28481-881-810

IDLER, VERTICAL STARTER

$63.99

$

Usually ships in 3-6 days

0

5

Honda 28482-881-810

GUIDE, ROPE

$17.99

$

Usually ships in 3-6 days

0

6

Honda 28483-881-810

BRACKET, VERTICAL STARTER

$10.99

$

Usually ships in 3-6 days

0

7

Honda 28484-881-810

PIN, VERTICAL STARTER

$38.99

$

Usually ships in 3-6 days

0

8

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.99

$

In Stock, only 2 left!

0

9

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

10

Honda 90513-921-000

WASHER (10MM)

$2.99

$

In Stock, only 1 left!

0

11

Honda 91402-881-000

PIN, LOCK (10MM)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 93500-06012-4J

SCREW, PAN (6X12)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94001-06490

SEE PART DETAILS - SUP; NUT, HEX. (6MM)

$

$

Currently unavailable

13

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0
