BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) FUEL PUMP Parts Diagram

Marine Engine, Made in Japan

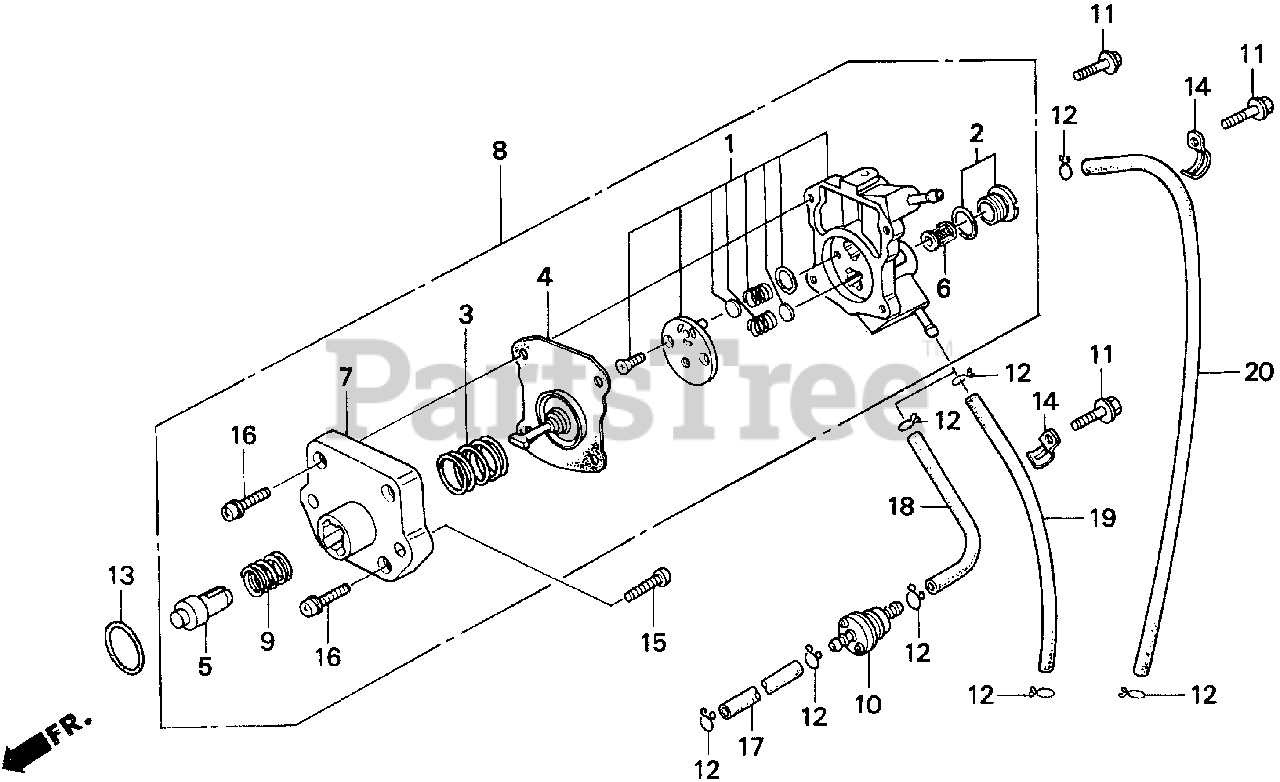

FUEL PUMP Parts Diagram

  • Title

1

Honda 16015-935-024

SEE PART DETAILS - SUP; BODY SET, PUMP
(Superseded to 16015-935-034)

$58.99

$

Usually ships in 3-6 days

0

2

Honda 16016-935-004

BOLT SET, HOLDING

$23.99

$

Usually ships in 3-6 days

0

3

Honda 16050-935-024

SPRING, DIAPHRAGM

$

$

Not available

4

Honda 16181-935-024

DIAPHRAGM

$26.99

$

Usually ships in 3-6 days

0

5

Honda 16182-935-014

ROD, PUSH

$22.99

$

Usually ships in 3-6 days

0

6

Honda 16194-935-004

SCREEN, FUEL STRAINER

$9.49

$

In Stock, only 1 left!

0

7

Honda 16195-935-014

BODY (LOWER)

$37.99

$

Usually ships in 3-6 days

0

8

Honda 16700-935-024

PUMP ASSY., FUEL

$123.99

$

Usually ships in 3-6 days

0

9

Honda 16707-882-601

SPRING, PUSH ROD

$4.49

$

Usually ships in 3-6 days

0

10

Honda 16910-GB2-005

FILTER, FUEL

$16.99

$

In Stock, only 2 left!

0

11

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

12

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91351-MG7-003

SEE PART DETAILS - PRI; O-RING (20.8X2.4)

$3.49

$

In Stock, only 2 left!

0

14

Honda 91403-881-000

CLIP, WIRE

$6.99

$

Usually ships in 3-6 days

0

15

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93500-06020-08

SEE PART DETAILS - SUP; SCREW, PAN (6X20)

$

$

Currently unavailable

16

Honda 93892-04016-08

SCREW-WASHER (4X16)

$0.99

$

Usually ships in 3-6 days

0

17

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X80)

$54.99

$

In Stock, only 4 left!

0

18

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X220)

$54.99

$

In Stock, only 4 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X400)

$54.99

$

In Stock, only 4 left!

0
