BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

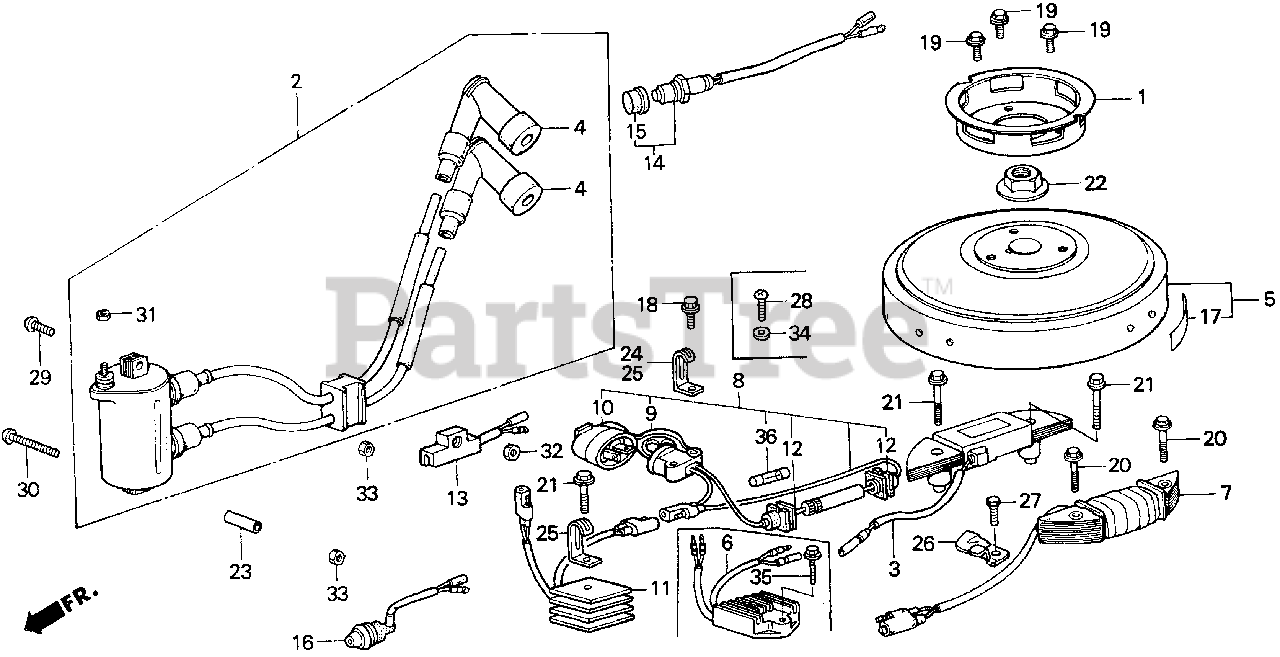

FLYWHEEL Parts Diagram

  • Title

1

Honda 28571-881-000

PULLEY, STARTER

Note: Use up to Engine SN 1704289.

$

$

Not available

1

Honda 28570-881-003

PULLEY, STARTER

Note: Use from Engine SN 1704290.

$

$

Currently unavailable

2

Honda 30500-881-732

SEE PART DETAILS - SUP; COIL ASSY., C.D.I. IGNITION

$

$

Not available

3

Honda 30540-881-732

COIL ASSY., EXCITER

$

$

Not available

4

Honda 30700-881-010

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

5

Honda 31100-881-000ZA

FLYWHEEL *R8* (BRIGHT RED) (NA USE ALT:31100-881-010ZC)

$

$

Currently unavailable

7

Honda 31630-881-004

COIL ASSY., CHARGE (NOT AVAILABLE)

$

$

Not available

8

Honda 31650-881-014

RECEPTACLE ASSY., CHARGE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31651-881-014

RECEPTACLE

$

$

Not available

10

Honda 31652-881-014

SEE PART DETAILS - SUP; PLUG, RECEPTACLE
(Superseded to 31652-881-024)

$23.99

$

Usually ships in 3-6 days

0

10

Honda 31652-881-024

SEE PART DETAILS - PRI; PLUG, RECEPTACLE

$23.99

$

Usually ships in 3-6 days

0

11

Honda 31700-881-000

RECTIFIER ASSY.

$

$

Not available

13

Honda 35100-881-003

SWITCH ASSY., NEUTRAL

$

$

Not available

14

Honda 36010-921-305

SEE PART DETAILS - PRI; SWITCH SET, ENGINE STOP

$

$

Not available

15

Honda 36101-881-013

SEE PART DETAILS - PRI; CAP, BUTTON (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

16

Honda 37210-ZV4-003

SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR

$52.99

$

Usually ships in 3-6 days

0

17

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

$

$

Not available

19

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

20

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

21

Honda 90124-881-000

BOLT, FLANGE (6X35)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90201-881-000

NUT, SPECIAL (14MM)

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90742-881-010

SEE PART DETAILS - PRI; COLLAR, DISTANCE

$

$

Not available

25

Honda 91403-881-000

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

26

Honda 91404-881-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

27

Honda 92101-06012-4J

BOLT, HEX. (6X12)

Note: Use up to Engine SN 1704021.

$2.99

$

Usually ships in 3-6 days

0

27

Honda 93500-06012-0B

SCREW, PAN (6X12)

Note: Use from Engine SN 1704022.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05022-0B

SCREW, PAN (5X22)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

29

Honda 93500-06025-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X25)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 93500-06025-0B

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

30

Honda 93500-06050-0B

SCREW, PAN (6X50)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94001-05330-0S

NUT, HEX. (5MM) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94001-06020-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 8

0

34

Honda 94101-05200

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 98200-10500

FUSE A (5A)

$1.49

$

In Stock, only 3 left!

0
