BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) ENGINE COVER (1) Parts Diagram

Marine Engine, Made in Japan

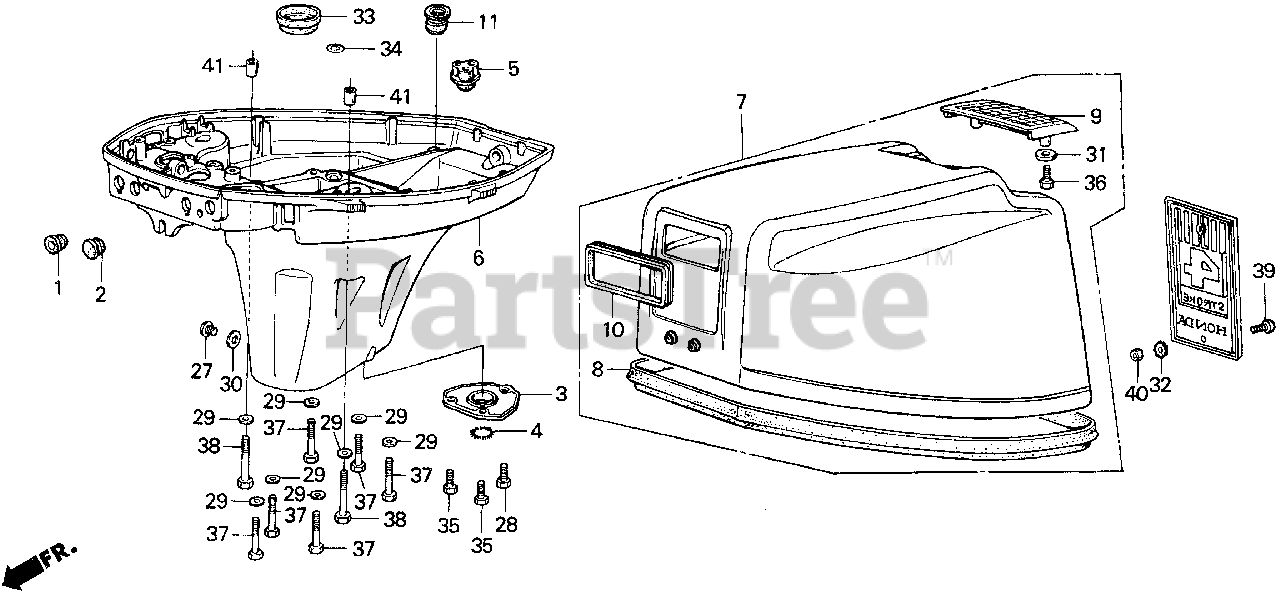

ENGINE COVER (1) Parts Diagram

  • Title
1

Honda 17914-881-300

GROMMET A, WIRE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 17918-881-000

GROMMET C, OIL CASE

$

$

Not available

3

Honda 18221-881-000

PLATE, EX.

$

$

Not available

4

Honda 18222-881-000

BAND, EX. SEAL

$6.99

$

Usually ships in 3-6 days

0

5

Honda 19262-921-000

MANIFOLD, TUBE

$

$

Not available

6

Honda 40101-881-505ZB

SEE PART DETAILS - PRI; CASE, OIL *B107* (SENIOR BLUE)

$

$

Currently unavailable

7

Honda 63100-881-740ZA

COVER, ENGINE *NH24* (CERAMIC WHITE)

$

$

Currently unavailable

8

Honda 63102-881-300

SEAL, ENGINE COVER

$

$

Not available

9

Honda 63105-881-740ZA

HANDLE, TILT *NH105* (MAT BLACK)

$

$

Currently unavailable

10

Honda 63109-881-310

SEAL, RECOIL

$

$

Not available

11

Honda 82873-881-010

GROMMET, WATER CHECK

$5.99

$

Usually ships in 3-6 days

0

27

Honda 90105-921-000

BOLT, OIL CHECK

$8.49

$

Usually ships in 3-6 days

0

28

Honda 90106-881-000

BOLT, HEX. (6X12)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

30

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

31

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90519-921-000

WASHER, LOCK (4MM) (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 91255-881-004

SEAL, COUPLING (25X40X22)

$

$

Not available

34

Honda 91301-PM5-A01

O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 92101-06016-4J

BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 92000-06032-4J

BOLT, HEX. (6X32) (NOT AVAILABLE)

$

$

Currently unavailable

38

Honda 92101-06040-4J

BOLT, HEX. (6X40)

$

$

Not available

39

Honda 93500-04010-0G

SCREW, PAN (4X10)

$0.99

$

Usually ships in 3-6 days

0

40

Honda 94001-04390-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0
