BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) CAMSHAFT Parts Diagram

Marine Engine, Made in Japan

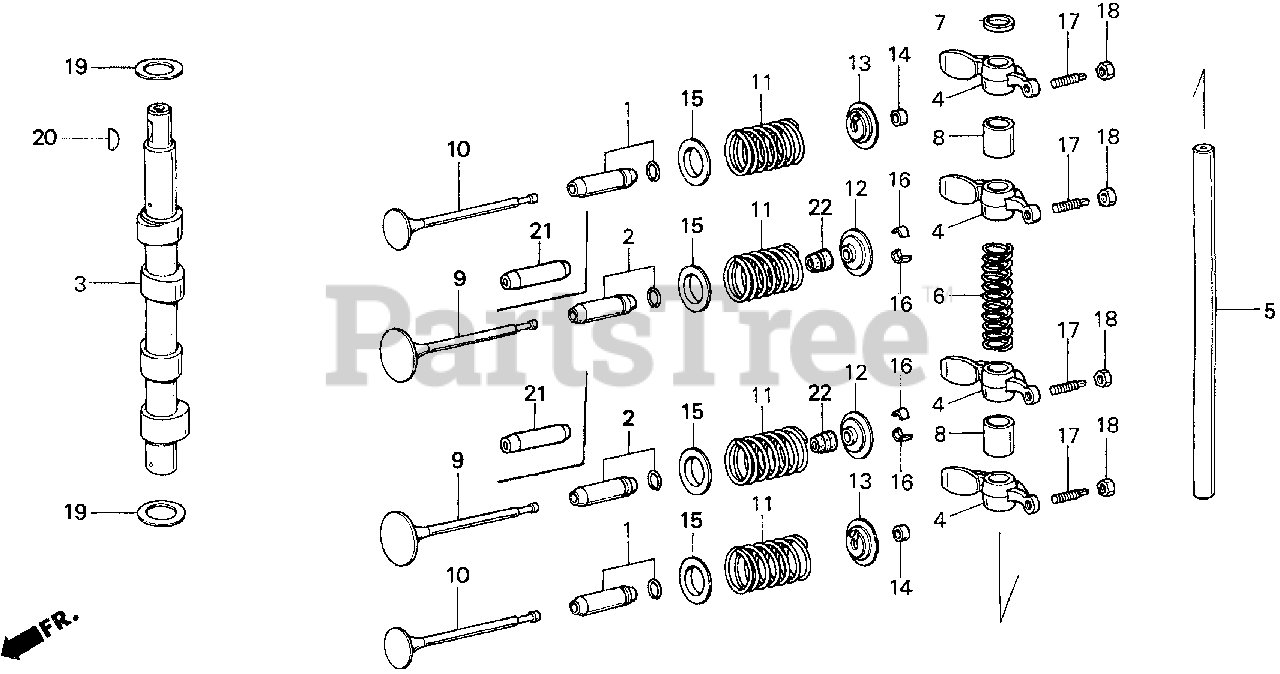

CAMSHAFT Parts Diagram

  • Title

1

Honda 12021-921-000

GUIDE, VALVE

$

$

Not available

2

Honda 12023-921-000

GUIDE, VALVE (NOT AVAILABLE)

$12.99

$

Usually ships in 3-6 days

0

3

Honda 14100-881-000

CAMSHAFT (NOT AVAILABLE)

$

$

Not available

4

Honda 14431-881-000

ARM, VALVE ROCKER

$

$

Not available

5

Honda 14451-881-000

SHAFT, VALVE ROCKER ARM

$22.99

$

Usually ships in 3-6 days

0

6

Honda 14481-881-000

SPRING, VALVE ROCKER ARM

$6.49

$

Usually ships in 3-6 days

0

7

Honda 14482-881-000

COLLAR A, VALVE ROCKER ARM

$3.99

$

Usually ships in 3-6 days

0

8

Honda 14483-881-000

COLLAR B, VALVE ROCKER ARM

$4.49

$

Usually ships in 3-6 days

0

9

Honda 14711-881-C40

SEE PART DETAILS - PRI; VALVE, IN.

$

$

Not available

9

Honda 14711-881-000

SEE PART DETAILS - SUP; VALVE, IN.
(Superseded to 14711-881-C40)

$

$

Not available

10

Honda 14721-881-000

VALVE, EX.

$

$

Not available

11

Honda 14753-921-010

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 14771-881-000

RETAINER, VALVE SPRING

$5.49

$

In Stock, only 2 left!

0

13

Honda 14771-935-810

RETAINER, VALVE SPRING

$10.99

$

Usually ships in 3-6 days

0

14

Honda 14772-881-000

ROTATOR, VALVE

$4.99

$

Usually ships in 3-6 days

0

15

Honda 14775-921-000

SEAT, VALVE SPRING

$2.49

$

In Stock, only 4 left!

0

16

Honda 14781-235-000

COTTER, VALVE

$

$

Not available

17

Honda 90012-333-000

SCREW, TAPPET ADJ.

$3.99

$

In Stock, Qty 20+

0

18

Honda 90206-001-000

NUT, TAPPET ADJ.

$2.49

$

In Stock, Qty 20+

0

19

Honda 90453-235-000

WASHER, THRUST (16MM)

$2.49

$

In Stock, only 4 left!

0

20

Honda 90741-969-000

SEE PART DETAILS - PRI; KEY, WOODRUFF (16X12)

$

$

Not available
