BF100 E SA (B100S) - Honda Marine Engine, Made in Japan (SN: B100S-1600001 - B100S-1700000) SWIVEL CASE (1) Parts Diagram

Marine Engine, Made in Japan

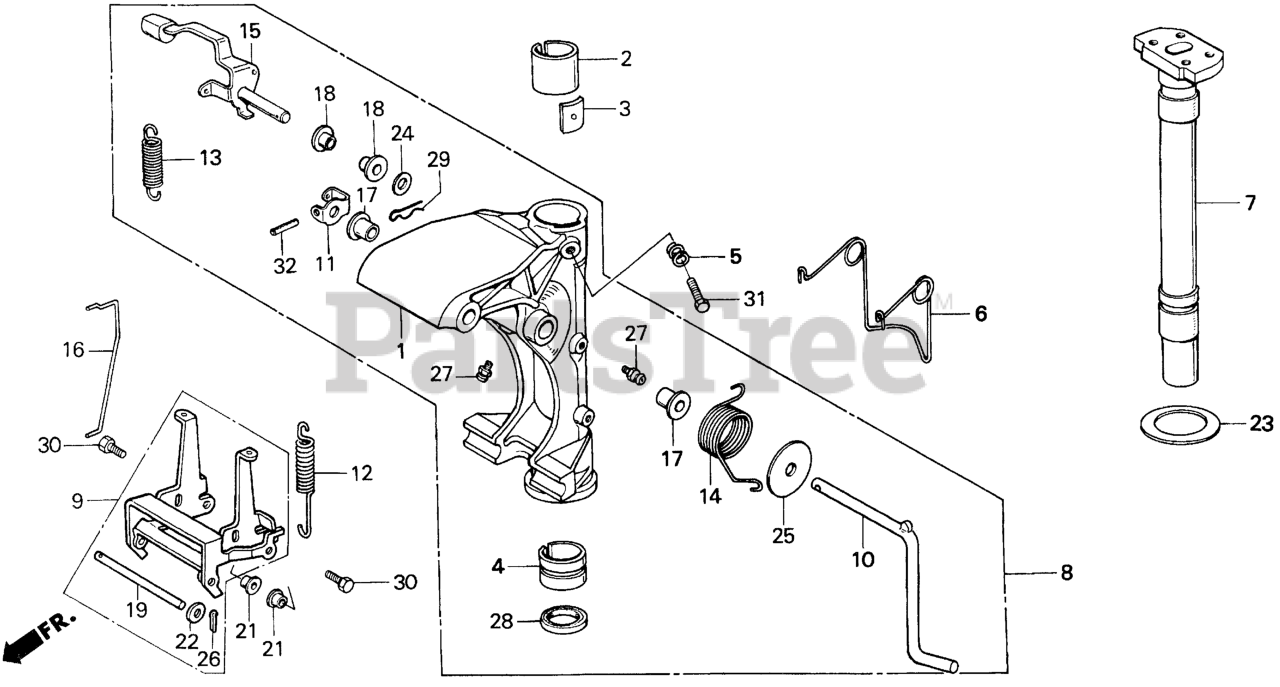

SWIVEL CASE (1) Parts Diagram

  • Title

1

Honda 50201-881-010ZA

SEE PART DETAILS - SUP; CASE, SWIVEL *B9* (ATLANTIS BLUE)

$

$

Currently unavailable

2

Honda 50211-881-010

SEE PART DETAILS - PRI; LINER, SWIVEL CASE

$18.99

$

Usually ships in 3-6 days

0

3

Honda 50212-881-000

BLOCK, FRICTION

$8.49

$

Usually ships in 3-6 days

0

4

Honda 50213-881-000

BUSH, SWIVEL SHAFT

$28.99

$

Usually ships in 3-6 days

0

5

Honda 50233-881-000

SPRING, FRICTION ADJUSTING

$5.99

$

Usually ships in 3-6 days

0

6

Honda 50403-881-000

SPRING, HOOK RETURN (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 50417-881-010ZA

SEE PART DETAILS - PRI; SHAFT, SWIVEL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 50500-881-000ZA

SEE PART DETAILS - SUP; CASE, SWIVEL *B9* (ATLANTIS BLUE)

$

$

Currently unavailable

9

Honda 50510-881-020

SEE PART DETAILS - PRI; LOCK, REVERSE

$

$

Not available

10

Honda 50511-881-300

LINK, TILT (NOT AVAILABLE)

$

$

Not available

11

Honda 50513-881-300

BRACKET, TILT LEVER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 50514-881-310

SEE PART DETAILS - PRI; SPRING, REVERSE LOCK

$5.99

$

Usually ships in 3-6 days

0

13

Honda 50515-881-300

SPRING, TILT LEVER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 50516-881-300

SPRING, TILT LINK (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 50517-881-310

LEVER, TILT (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 50519-881-300

ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 50521-881-300

BUSH, TILT LEVER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 50522-881-000

BUSH B, TILT LEVER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90103-881-010

SEE PART DETAILS - PRI; COLLAR (6MM)

$

$

Currently unavailable

23

Honda 90454-881-000

WASHER, THRUST

$3.99

$

Usually ships in 3-6 days

0

24

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 90520-881-000

WASHER, PLAIN (10MM) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 90901-881-000

SEE PART DETAILS - SUP; FITTING, GREASE

$

$

Currently unavailable

28

Honda 91256-881-004

SEE PART DETAILS - PRI; OIL SEAL (32X37X7)

$14.99

$

In Stock, only 1 left!

0

29

Honda 91402-881-000

PIN, LOCK (10MM)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92101-06016-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 92000-08020-4J

BOLT, HEX. (8X20) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 94305-40253

PIN, SPRING (4X25)

$1.99

$

Usually ships in 3-6 days

0
