BF100 E LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1600001 - B100L-1700000) REMOTE CONTROL BRACKET Parts Diagram

Marine Engine, Made in Japan

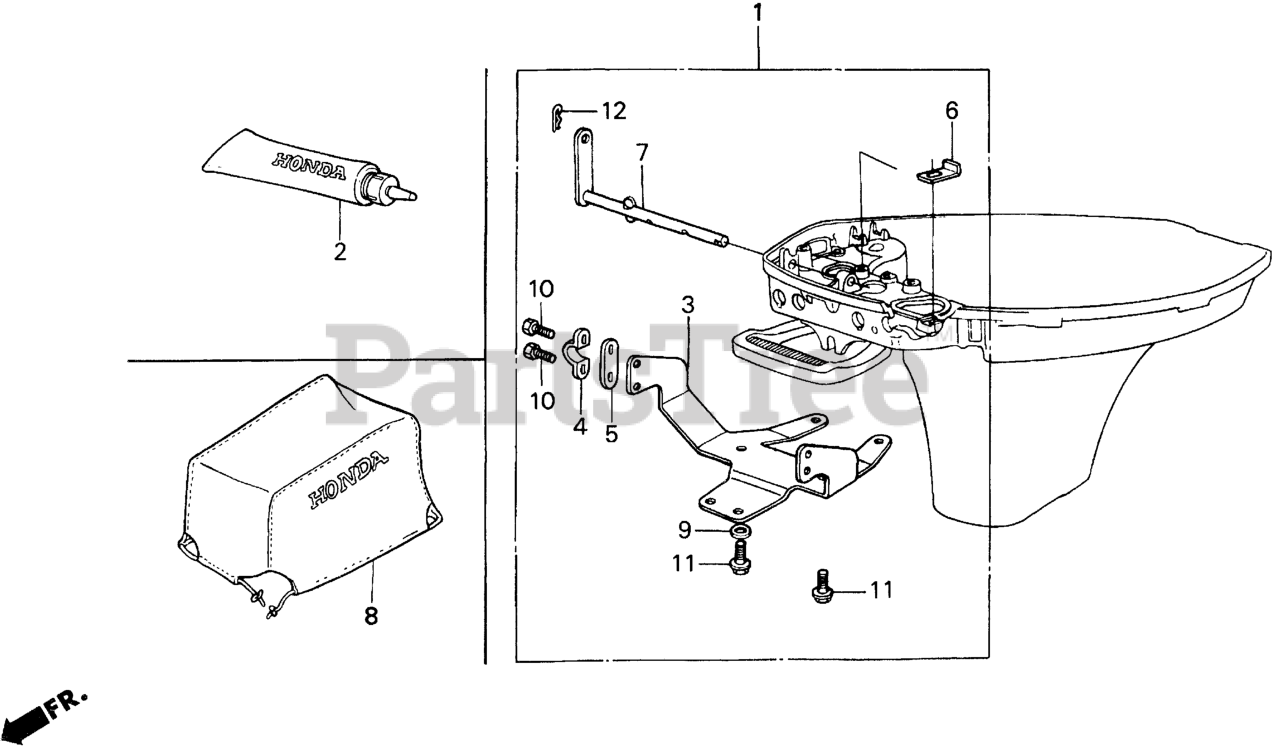

REMOTE CONTROL BRACKET Parts Diagram

  • Title

1

Honda 06170-881-812

SEE PART DETAILS - PRI; CONTROL KIT, REMOTE

Note: (Optional).

$93.99

$

Usually ships in 3-6 days

0

2

Honda 08207-92160

SEE PART DETAILS - SUP; TUBE, GEAR OIL

Note: (Optional).

$

$

Currently unavailable

3

Honda 17851-881-811

SEE PART DETAILS - SUP; BRACKET, STEERING
(Superseded to 17851-881-812)

Note: (Optional).

$172.99

$

Usually ships in 3-6 days

0

3

Honda 17851-881-812

SEE PART DETAILS - PRI; BRACKET, STEERING

Note: (Optional).

$172.99

$

Usually ships in 3-6 days

0

4

Honda 17855-ZV1-810

CLAMP, CABLE

Note: (Optional).

$12.99

$

In Stock, only 1 left!

0

5

Honda 17856-ZV1-810

SHIM, CABLE CLAMP

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 17941-881-811

SEE PART DETAILS - PRI; STOPPER, THROTTLE ARM

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

7

Honda 24701-881-812

SEE PART DETAILS - PRI; LEVER, SHIFT

Note: (Optional).

$90.99

$

Usually ships in 3-6 days

0

8

Honda 63311-881-010

COVER, BODY

Note: (Optional).

$151.99

$

Usually ships in 3-6 days

0

9

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

Note: (Optional).

$1.99

$

In Stock, only 1 left!

0

10

Honda 92101-05010-4J

SEE PART DETAILS - PRI; BOLT, HEX. (5X10)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0
