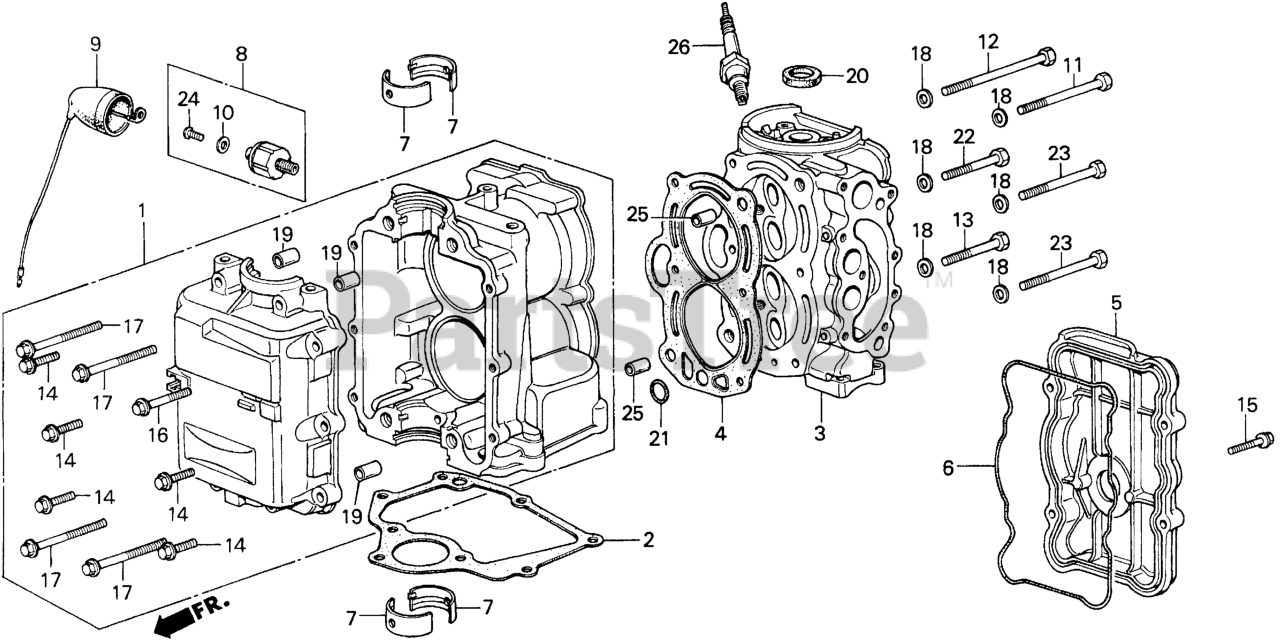

BF100 E LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1600001 - B100L-1700000) CYLINDER Parts Diagram

Marine Engine, Made in Japan

CYLINDER Parts Diagram

  • Title

1

Honda 11000-881-030KA

SEE PART DETAILS - PRI; CYLINDER ASSY.

$

$

Currently unavailable

2

Honda 11210-881-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11210-881-850)

$16.99

$

Usually ships in 3-6 days

0

2

Honda 11210-881-850

SEE PART DETAILS - PRI; GASKET, OIL PAN

$16.99

$

Usually ships in 3-6 days

0

3

Honda 12200-882-601KA

CYLINDER HEAD (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 12251-881-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-881-003)

$77.99

$

Usually ships in 3-6 days

0

4

Honda 12251-881-850

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12251-881-003)

$77.99

$

Usually ships in 3-6 days

0

5

Honda 12301-881-000ZA

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD *NH8* (DARK GRAY)

$171.99

$

Usually ships in 3-6 days

0

6

Honda 12391-881-000

GASKET, CYLINDER COVER

$9.49

$

Usually ships in 3-6 days

0

7

Honda 13315-881-000

BEARING, CRANKSHAFT

$

$

Not available

8

Honda 37200-935-004

SWITCH, OIL PRESSURE

$43.99

$

Usually ships in 3-6 days

0

9

Honda 37201-881-000

WIRE, OIL PRESSURE SWITCH

$12.99

$

In Stock, only 1 left!

0

10

Honda 37202-935-004

WASHER (4MM)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90017-935-000

BOLT, HEAD (8X70) (Honda Code 0327650).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90018-935-000

BOLT, HEAD (8X94)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90019-881-000

BOLT, HEX. (8X55) (Honda Code 0648105).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90122-881-000

BOLT, FLANGE (6X25)

$

$

Not available

15

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

16

Honda 90124-881-000

BOLT, FLANGE (6X35)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90126-881-000

SEE PART DETAILS - SUP; BOLT, FLANGE (8X45)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90701-360-000

PIN, DOWEL (10X12)

$

$

Not available

20

Honda 91206-921-000

OIL SEAL (16X28X6) (Honda Code 0285429).

$9.49

$

Usually ships in 3-6 days

0

21

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).

$3.99

$

Usually ships in 3-6 days

0

22

Honda 92200-08050-0A

BOLT, HEX. (8X50) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 92200-08065-0A

BOLT, HEX. (8X65) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 93500-04006-3J

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

26

Honda 98066-54716

SPARK PLUG (DR-4HS) (NGK)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

26

Honda 98066-55716

SEE PART DETAILS - PRI; SPARK PLUG (DR5HS) (NGK)

$5.49

$

In Stock, Qty 18

0

26

Honda 98066-55726

SPARK PLUG (X16FSR-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0
