BF100 E LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1600001 - B100L-1700000) CAM PULLEY Parts Diagram

Marine Engine, Made in Japan

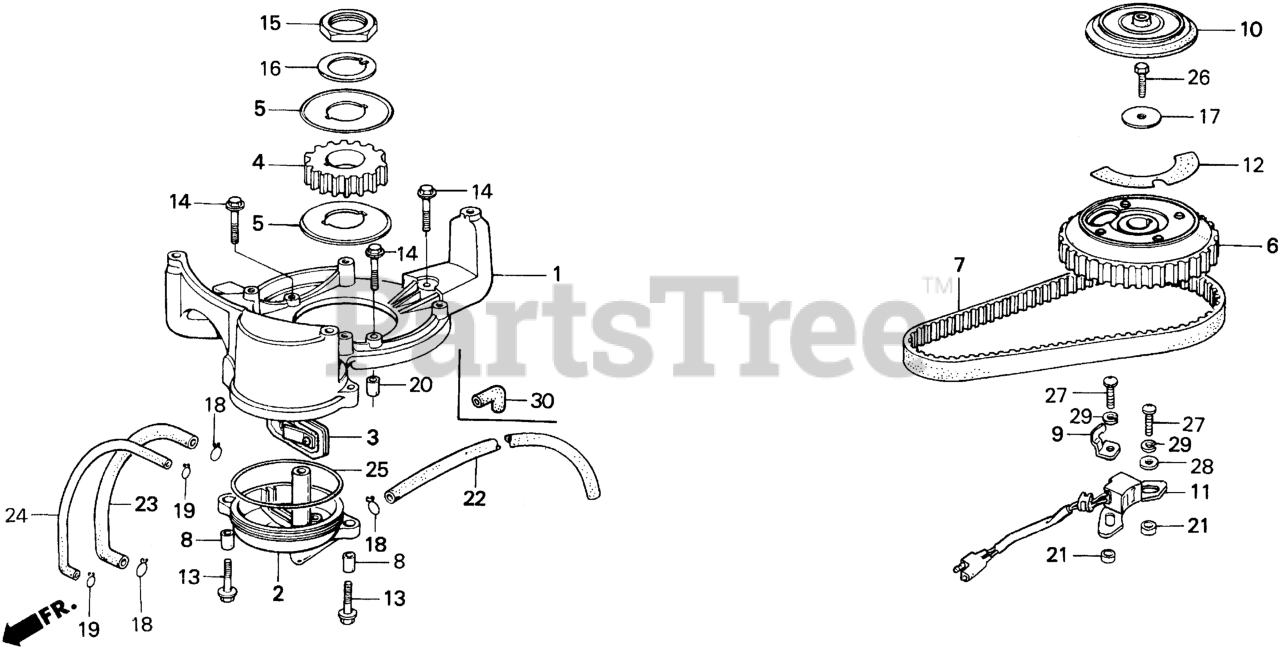

CAM PULLEY Parts Diagram

  • Title

1

Honda 11301-881-020ZA

SEE PART DETAILS - PRI; CASE, STARTER *NH8* (DARK GRAY)

$250.99

$

Usually ships in 3-6 days

0

2

Honda 12311-881-000

COVER, BREATHER

$40.99

$

Usually ships in 3-6 days

0

3

Honda 12370-881-000

BODY, VALVE

$

$

Not available

4

Honda 14311-881-000

PULLEY, TIMING

$

$

Not available

5

Honda 14312-881-000

FLANGE, TIMING PULLEY

$11.99

$

Usually ships in 3-6 days

0

6

Honda 14320-882-600

PULLEY, CAMSHAFT

$

$

Not available

7

Honda 14400-921-024

SEE PART DETAILS - PRI; BELT, TIMING

$70.99

$

In Stock, only 1 left!

0

8

Honda 15623-881-000

SEE PART DETAILS - SUP; COLLAR A, DISTANCE

$

$

Currently unavailable

9

Honda 30207-882-600

PLATE, WIRE CLAMP

$6.49

$

Usually ships in 3-6 days

0

10

Honda 30210-881-000

COVER, POINT

$

$

Not available

11

Honda 30400-882-601

COIL ASSY., PULSER (NOT AVAILABLE)

$

$

Not available

12

Honda 87581-921-600

MARK, POINT

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90121-881-000

BOLT, FLANGE (6X22)

$

$

Not available

14

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

15

Honda 90202-881-000

NUT, LOCK (24MM)

$10.99

$

Usually ships in 3-6 days

0

16

Honda 90451-881-000

WASHER, LOCK (24MM)

$

$

Not available

17

Honda 90563-706-000

WASHER, WHEEL (6MM)

$

$

Not available

18

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90605-921-000

CLIP B7, TUBE

$1.99

$

In Stock, only 2 left!

0

20

Honda 90702-881-000

PIN, DOWEL (8X10) Use up to Engine SN 2056819.

$

$

Not available

21

Honda 90705-882-600

PIN, DOWEL (7X4.5)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90803-881-000

TUBE B, BREATHER (NOT AVAILABLE)

$

$

Not available

23

Honda 90804-881-010

TUBE C, BREATHER

$

$

Not available

24

Honda 90805-881-000

TUBE, OIL RETURN

$

$

Not available

25

Honda 91311-881-003

SEE PART DETAILS - PRI; O-RING (62X2.5)

$

$

Not available

26

Honda 92101-06022-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X22)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 93500-05014-0B

SCREW, PAN (5X14)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94101-05200

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0
