BF100 D LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1500001 - B100L-1600000) PISTON + CRANKSHAFT Parts Diagram

Marine Engine, Made in Japan

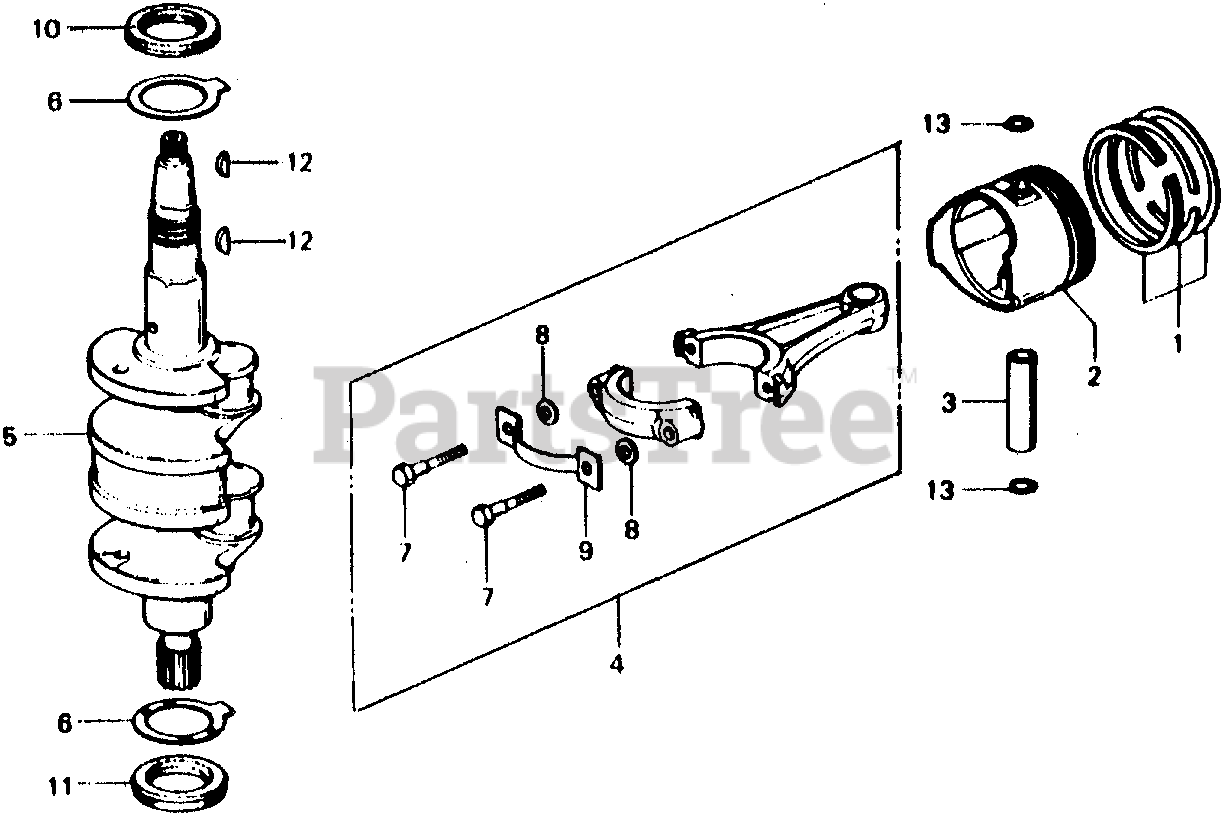

PISTON + CRANKSHAFT Parts Diagram

  • Title
1

Honda 13010-881-000

RING SET, PISTON (2SET) (STD)

$

$

Not available

$

$

Not available

3

Honda 13111-881-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-881-000

ROD ASSY., CONNECTING

$123.99

$

Usually ships in 3-6 days

0

5

Honda 13311-881-000

CRANKSHAFT

$

$

Not available

6

Honda 13316-881-000

BEARING, CRANKSHAFT THRUST

$

$

Not available

7

Honda 90011-881-000

BOLT, CONNECTING ROD

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90402-921-000

WASHER (6MM)

$

$

Not available

9

Honda 90452-881-000

WASHER, LOCK

$

$

Not available

10

Honda 91201-881-003

OIL SEAL A (30X42X7)

$

$

Not available

11

Honda 91202-881-003

OIL SEAL B (30X42X7)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, Qty 7

0

13

Honda 94601-14000

CLIP, PISTON PIN (14MM)

$0.99

$

In Stock, only 2 left!

0
