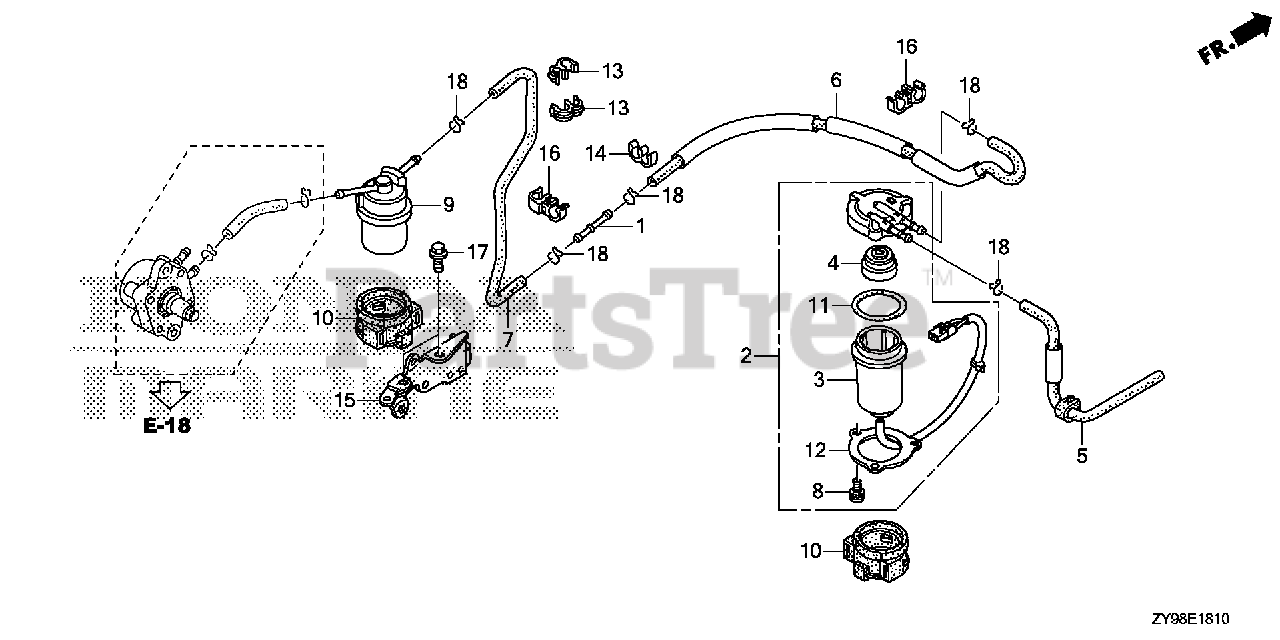

BF100 AK1 XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1100001 - BBMJ-9999999) WATER SEPARATOR Parts Diagram

Marine Engine, Made in Japan

WATER SEPARATOR Parts Diagram

  • Title

1

Honda 16723-RMA-E00

JOINT, FUEL FEED HOSE

$9.49

$

Usually ships in 3-6 days

0

2

Honda 16800-ZY9-003

SEPARATOR ASSY., WATER

$326.99

$

Usually ships in 3-6 days

0

3

Honda 16805-ZY9-003

CUP, WATER SEPARATOR

$232.99

$

Usually ships in 3-6 days

0

4

Honda 16807-ZY3-003

BUFFER, PLATE

$62.99

$

Usually ships in 3-6 days

0

5

Honda 16850-ZY9-E01

TUBE A, FUEL

$26.99

$

Usually ships in 3-6 days

0

6

Honda 16860-ZY9-F00

TUBE B, FUEL

$56.99

$

Usually ships in 3-6 days

0

7

Honda 16871-ZY9-F00

TUBE C, FUEL

$40.99

$

Usually ships in 3-6 days

0

8

Honda 16904-ZY3-003

SCREW, PAN (5X12)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16910-ZY9-004

FILTER, FUEL

$25.99

$

Usually ships in 3-6 days

0

10

Honda 16915-ZY3-010

SEE PART DETAILS - PRI; SUSPENSION, STRAINER

$17.99

$

Usually ships in 3-6 days

0

11

Honda 16918-ZY3-003

O-RING

$9.49

$

Usually ships in 3-6 days

0

12

Honda 16919-ZY3-003

PLATE

$16.99

$

Usually ships in 3-6 days

0

13

Honda 17439-PY3-A01

CLAMP, TUBE (7.5-11.5) (BLACK)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 19526-PN4-000

CLAMP, TUBE

$

$

Not available

15

Honda 32112-ZY9-000

BRACKET B, HARNESS CLIP

$26.99

$

Usually ships in 3-6 days

0

16

Honda 53740-SE0-953

CLIP, SENSOR HOSE

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90011-ZZ5-M00

BOLT, FLANGE (6X14) (CT200)
(Superseded to 90011-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90604-ZV0-000

CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0
