BF100 AK1 XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1100001 - BBMJ-9999999) TROLLING CONTROL SWITCH Parts Diagram

Marine Engine, Made in Japan

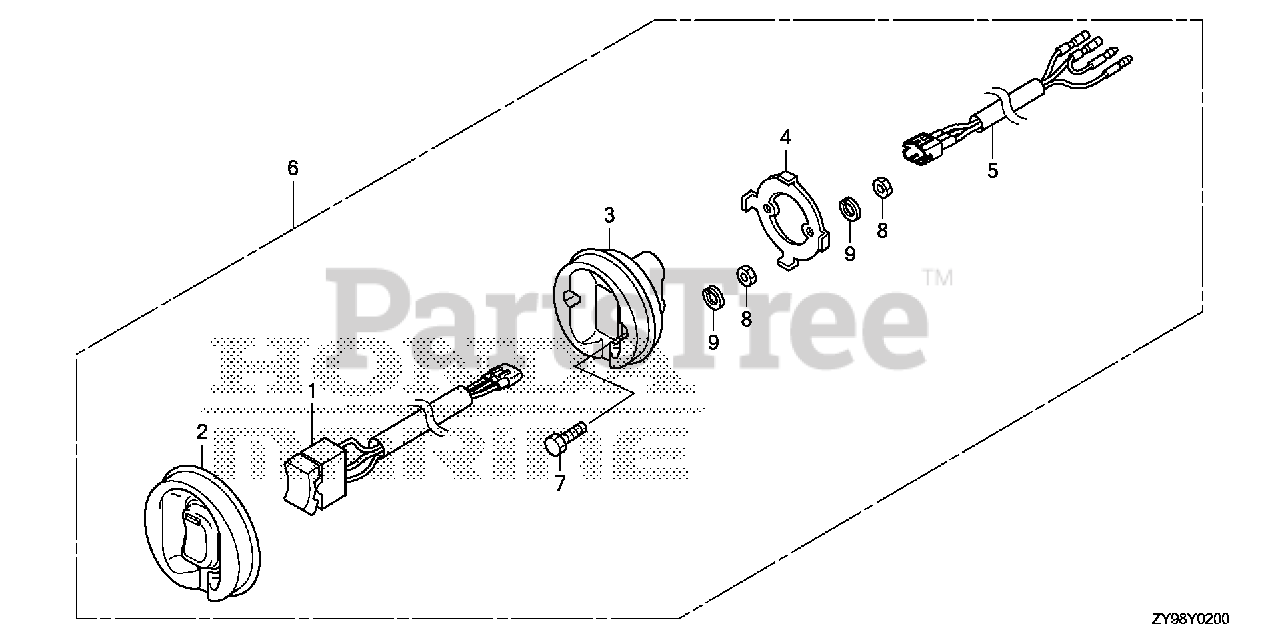

TROLLING CONTROL SWITCH Parts Diagram

  • Title

1

Honda 35340-ZZ3-741

SWITCH ASSY., TROLLING CONTROL

Note: (Optional).

$66.99

$

Usually ships in 3-6 days

0

2

Honda 35341-ZZ3-740

RUBBER, TROLLING CONTROL SWITCH PANEL

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

3

Honda 35342-ZZ3-740

BODY, TROLLING CONTROL SWITCH PANEL

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

4

Honda 35343-ZZ3-740

BRACKET, TROLLING CONTROL SWITCH PANEL

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

5

Honda 35344-ZZ3-740

HARNESS, TROLLING CONTROL SWITCH PANEL

Note: (Optional).

$32.99

$

Usually ships in 3-6 days

0

6

Honda 35345-ZZ3-741

PANEL ASSY., TROLLING CONTROL

Note: (Optional).

$111.99

$

Usually ships in 3-6 days

0

7

Honda 92101-04020-4J

BOLT, HEX. (4X20)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94001-04490-0S

NUT, HEX. (4MM) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

9

Honda 94111-04500

WASHER, SPRING (4MM)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0
