BF100 AK1 XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1100001 - BBMJ-9999999) OIL CASE Parts Diagram

Marine Engine, Made in Japan

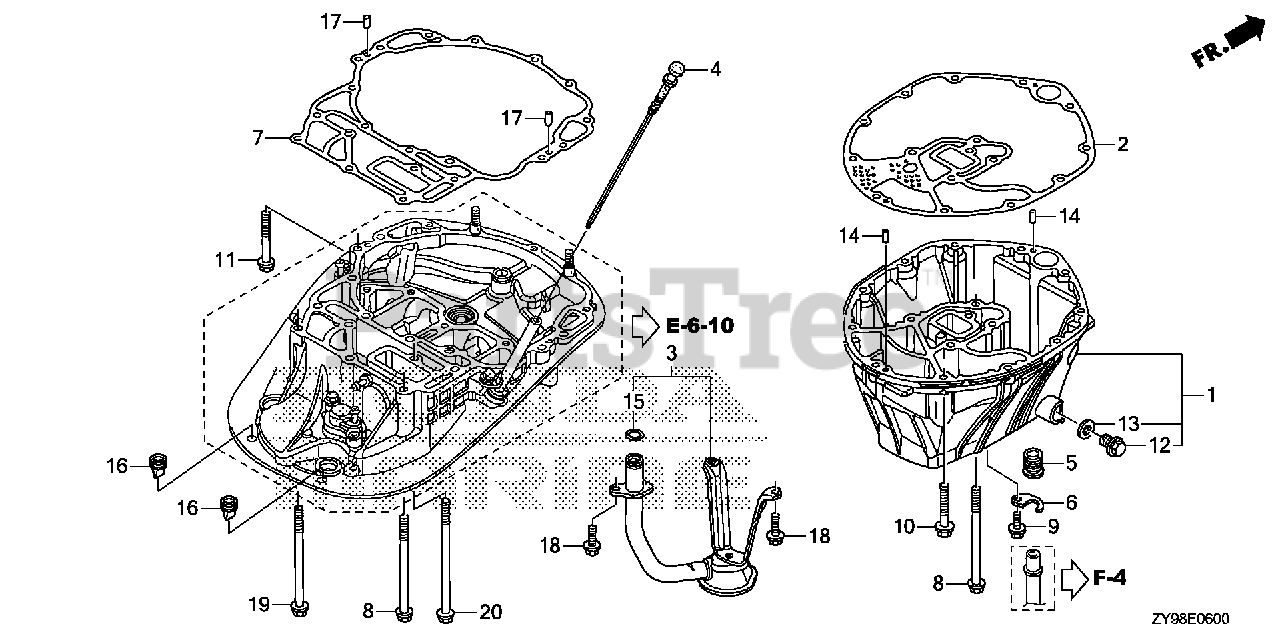

OIL CASE Parts Diagram

  • Title

1

Honda 11320-ZY9-010ZA

CASE ASSY., OIL *TGRAY* (GRAY)

$392.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZY9-003

GASKET, OIL PAN

$88.99

$

Usually ships in 3-6 days

0

3

Honda 15220-ZY9-000

STRAINER, OIL

$119.99

$

Usually ships in 3-6 days

0

4

Honda 15655-ZY9-M00

DIPSTICK, OIL

$19.99

$

Usually ships in 3-6 days

0

5

Honda 19252-ZW1-000

GROMMET, WATER TUBE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 19254-ZY9-000

PLATE, WATER TUBE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 23172-ZY9-003

GASKET, MOUNT CASE

$138.99

$

Usually ships in 3-6 days

0

8

Honda 90046-ZY3-000

BOLT, FLANGE (8X100)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90102-ZW9-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90114-HW1-671

BOLT, FLANGE (8X35)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90120-HW1-671

BOLT, FLANGE (8X45)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 91310-PC6-004

O-RING (15.5X2.7)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 91601-ZZ0-M00

GROMMET (1WAY)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96300-06016-09

BOLT, FLANGE (6X16)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 96300-08100-09

BOLT, FLANGE (8X100)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 96300-08120-09

BOLT, FLANGE (8X120)

$4.49

$

Usually ships in 3-6 days

0
