BF100 AK1 XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1100001 - BBMJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

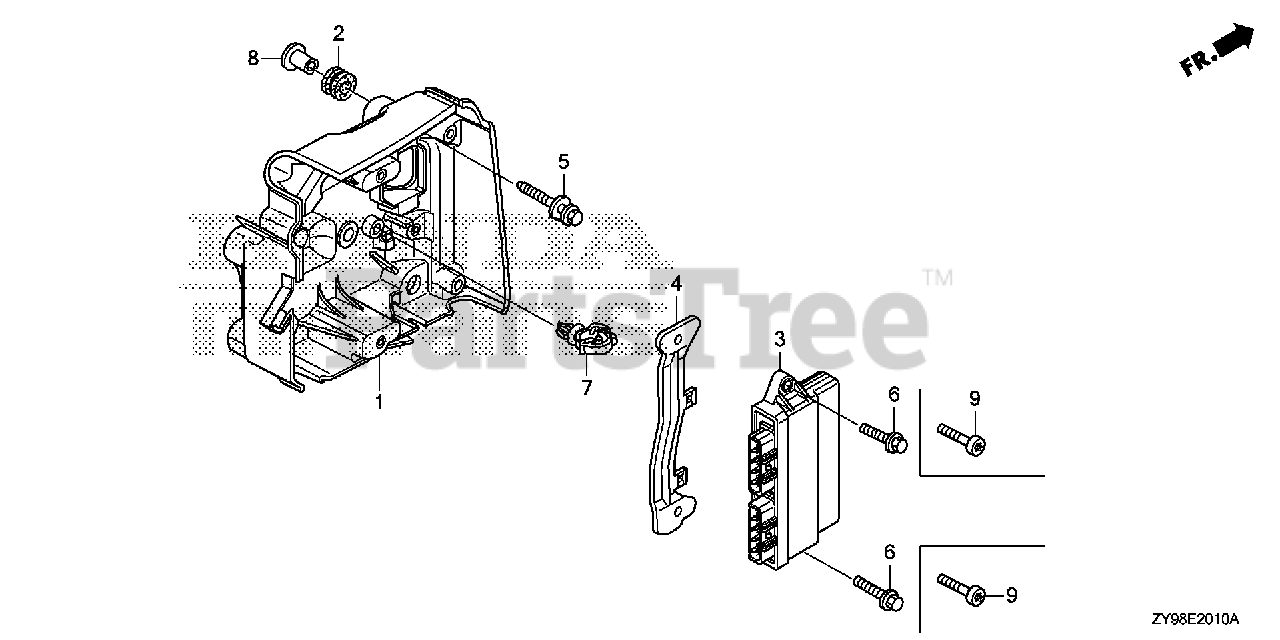

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title

1

Honda 30416-ZZ0-M00

CASE, ELECTRONIC PARTS

$38.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 34750-ZZ0-M41

CONTROL UNIT, ELECTRONIC
(Superseded to 34750-ZZ0-M42)

$1322.99

$

Usually ships in 3-6 days

0

4

Honda 34754-ZY9-H00

BRACKET, ELECTRONIC CONTROL UNIT

$11.99

$

Usually ships in 3-6 days

0

5

Honda 90003-ZZ5-M00

BOLT-WASHER (6X27) (CT200)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 90018-ZZ5-M00

BOLT, FLANGE (6X20)
(Superseded to 90018-ZZ5-M01)

Note: Use up to Engine SN 1100938.

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

8

Honda 91503-ZY9-M00

COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90102-ZZ0-M00

BOLT, TORX (M6X20)

Note: Use from Engine SN 1100939.

$5.99

$

Usually ships in 3-6 days

0
