BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) TRIM METER + TACHOMETER Parts Diagram

Marine Engine, Made in Japan

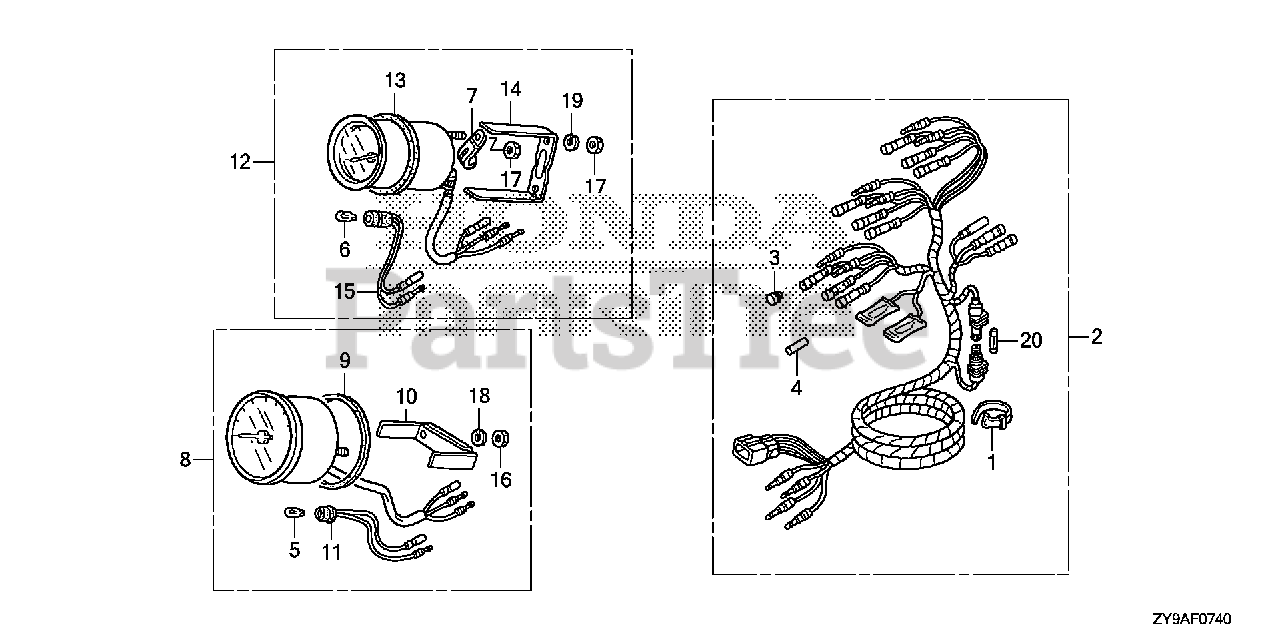

TRIM METER + TACHOMETER Parts Diagram

  • Title
1

Honda 32161-404-000

BAND B1, WIRE

Note: (Optional).

$3.49

$

In Stock, only 4 left!

0

2

Honda 32540-ZZ3-000

HARNESS ASSY., METER (A)
(Superseded to 32540-ZZ3-010)

Note: (Optional).

$136.99

$

Usually ships in 3-6 days

0

3

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

4

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 34908-MG9-951

BULB, WEDGE BASE (12V 1.7W)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 37215-KM1-670

CLAMP

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 37250-ZV7-913

TACHOMETER ASSY.

Note: (Optional).

$351.99

$

Usually ships in 3-6 days

0

9

Honda 37253-ZV5-821

GASKET

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

10

Honda 37256-ZV5-821

BRACKET

Note: (Optional).

$32.99

$

Usually ships in 3-6 days

0

11

Honda 37258-ZV5-821

SOCKET

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

12

Honda 37260-ZV5-822

METER ASSY., TRIM

Note: (Optional).

$330.99

$

Usually ships in 3-6 days

0

13

Honda 37263-ZV5-821

GASKET

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 37266-ZV5-821

BRACKET

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

15

Honda 37268-ZV5-821

SOCKET

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

16

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 98200-11000

FUSE A (10A)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0
