BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) SHIFT SHAFT Parts Diagram

Marine Engine, Made in Japan

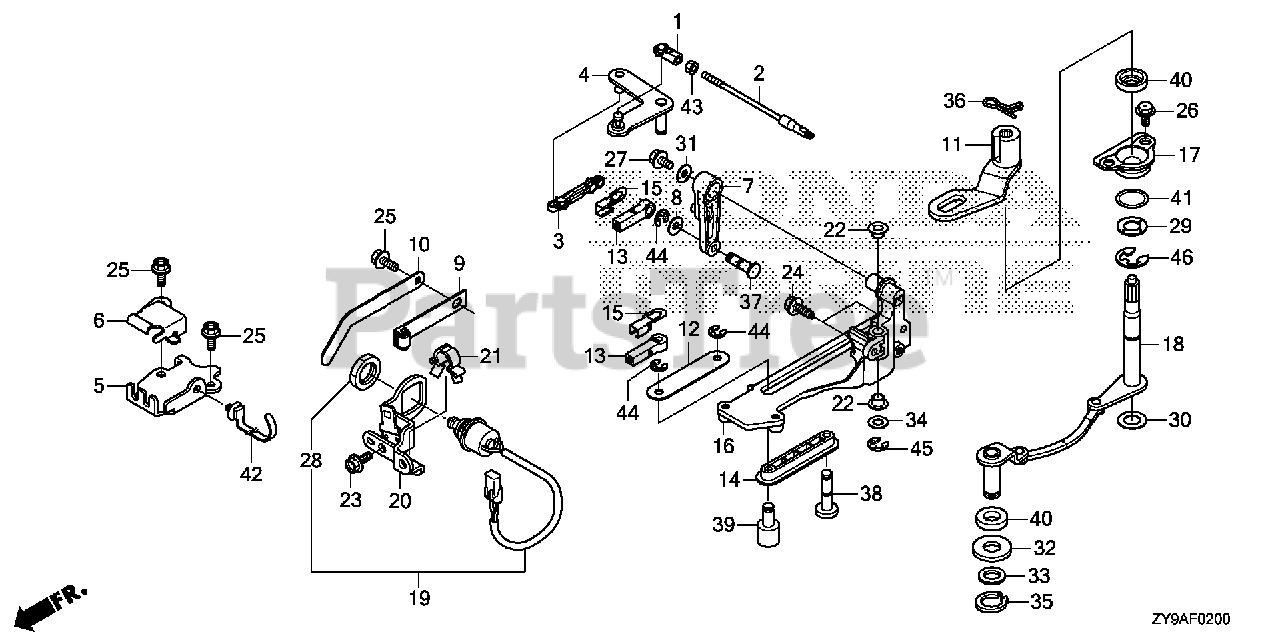

SHIFT SHAFT Parts Diagram

  • Title
1

Honda 17838-ZV5-000

LINKAGE, PIVOT

$10.99

$

Usually ships in 3-6 days

0

2

Honda 17840-ZY9-000

ROD, THROTTLE

$46.99

$

Usually ships in 3-6 days

0

3

Honda 17845-ZY6-000

LINK, THROTTLE

$21.99

$

Usually ships in 3-6 days

0

4

Honda 17860-ZY9-000

PLATE, THROTTLE

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17877-ZY9-000

PLATE, REMOTE CONTROL CABLE

$27.99

$

Usually ships in 3-6 days

0

6

Honda 17878-ZY9-000

COVER, REMOTE CONTROL CABLE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 17931-ZY6-000

ARM, THROTTLE

$21.99

$

Usually ships in 3-6 days

0

8

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

9

Honda 24210-ZW1-010

SEE PART DETAILS - PRI; SPRING, CLICK

$13.99

$

Usually ships in 3-6 days

0

10

Honda 24221-ZY9-000

SPRING, CLICK ASSIST

$18.99

$

Usually ships in 3-6 days

0

11

Honda 24612-ZY9-000

ARM, SHIFT

$226.99

$

Usually ships in 3-6 days

0

12

Honda 24614-ZY9-000

PLATE, SHIFT PIVOT

$5.99

$

Usually ships in 3-6 days

0

13

Honda 24618-ZY3-000

PIVOT, SHIFT

$7.99

$

Usually ships in 3-6 days

0

14

Honda 24618-ZY9-000

PIVOT, SHIFT SLIDE

$14.99

$

Usually ships in 3-6 days

0

15

Honda 24619-ZY3-000

PLATE, LOCK

$7.99

$

Usually ships in 3-6 days

0

16

Honda 24628-ZY9-000

BRACKET, SHIFT LINK

$126.99

$

Usually ships in 3-6 days

0

17

Honda 24629-ZW1-000

HOLDER, SEAL

$28.99

$

Usually ships in 3-6 days

0

18

Honda 24630-ZY9-000

SHAFT, SHIFT

$285.99

$

Usually ships in 3-6 days

0

19

Honda 35470-ZY9-023

SEE PART DETAILS - PRI; SWITCH ASSY., NEUTRAL

$61.99

$

Usually ships in 3-6 days

0

20

Honda 35475-ZY9-010

BRACKET, NEUTRAL SWITCH

$15.99

$

Usually ships in 3-6 days

0

21

Honda 46391-VM0-003

CLIP, BRAKE PIPE (A)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 63205-ZY3-000

BUSH A, COVER LOCK

$5.99

$

Usually ships in 3-6 days

0

23

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

24

Honda 90017-ZV0-C10

BOLT, FLANGE (6X18) (CT200)
(Superseded to 90104-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

26

Honda 90023-ZW5-000

BOLT, FLANGE (6X11)
(Superseded to 90101-ZZ0-M01)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 90429-GET-000

WASHER, SIDE (14MM)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90501-ZW5-000

WASHER, SHIFT SHAFT

$9.99

$

Usually ships in 3-6 days

0

31

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90508-ZY9-000

WASHER (14MM)

$5.49

$

Usually ships in 3-6 days

0

33

Honda 90509-ZY9-000

WASHER (13MM)

$5.49

$

Usually ships in 3-6 days

0

34

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

35

Honda 90651-ZY9-000

CIRCLIP (OUTER) (12)

$3.49

$

Usually ships in 3-6 days

0

36

Honda 90705-SD2-931

PIN, SNAP (6MM)

$5.49

$

Usually ships in 3-6 days

0

37

$16.99

$

Usually ships in 3-6 days

0

38

Honda 90752-ZY6-000

PIN, SHIFT LINK

$5.99

$

Usually ships in 3-6 days

0

39

$6.99

$

Usually ships in 3-6 days

0

40

Honda 91255-ZV4-651

SEAL, WATER (14X26X6)

$7.99

$

Usually ships in 3-6 days

0

41

Honda 91305-KF0-003

O-RING (27X2) (ARAI)

$3.99

$

Usually ships in 3-6 days

0

42

Honda 91540-STK-003

CLIP, HARNESS BAND (155.3MM) (BLACK)

$6.49

$

Usually ships in 3-6 days

0

43

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 3 left!

0

45

Honda 94540-06029

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 94540-12029

E-RING (12MM)

$10.99

$

Usually ships in 3-6 days

0
