BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) OIL PUMP Parts Diagram

Marine Engine, Made in Japan

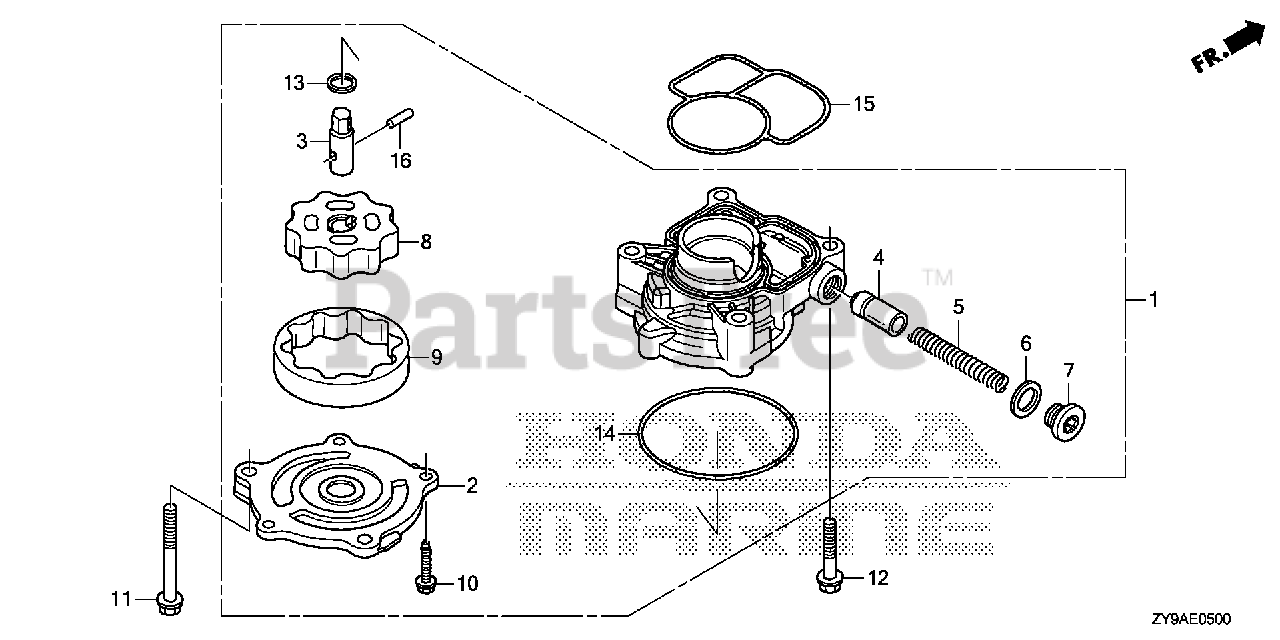

OIL PUMP Parts Diagram

  • Title

1

Honda 15100-ZY9-000

PUMP ASSY., OIL
(Superseded to 15100-ZY9-M00)

$363.99

$

Usually ships in 3-6 days

0

2

Honda 15121-ZY9-000

COVER, OIL PUMP

$55.99

$

Usually ships in 3-6 days

0

3

Honda 15136-ZY9-000

SHAFT, OIL PUMP

$19.99

$

Usually ships in 3-6 days

0

4

Honda 15231-PE0-000

VALVE, RELIEF

$19.99

$

Usually ships in 3-6 days

0

5

Honda 15232-PG6-000

SPRING, RELIEF VALVE

$8.49

$

Usually ships in 3-6 days

0

6

Honda 15234-PC6-000

WASHER, SEALING (18MM)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 15236-ZW1-010

BOLT, SEALING (18MM)
(Superseded to 15236-ZY9-M00)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 15331-ZW1-000

ROTOR (INNER)

$60.99

$

Usually ships in 3-6 days

0

9

Honda 15341-ZW1-000

ROTOR (OUTER)

$67.99

$

Usually ships in 3-6 days

0

10

Honda 90017-ZV0-C10

BOLT, FLANGE (6X18) (CT200)
(Superseded to 90104-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90127-ZV1-010

BOLT, FLANGE (8X60)
(Superseded to 90027-ZY9-M01)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90155-ZW4-000

BOLT, FLANGE (8X40)
(Superseded to 90055-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90456-MC7-000

WASHER, THRUST (13MM)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 91302-ZW1-000

O-RING, PUMP COVER

$11.99

$

Usually ships in 3-6 days

0

15

Honda 91304-ZY9-000

O-RING, OIL PUMP

$14.99

$

Usually ships in 3-6 days

0

16

Honda 96220-50178

ROLLER (5X17.8)

$1.49

$

In Stock, only 1 left!

0
