BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) MAIN WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

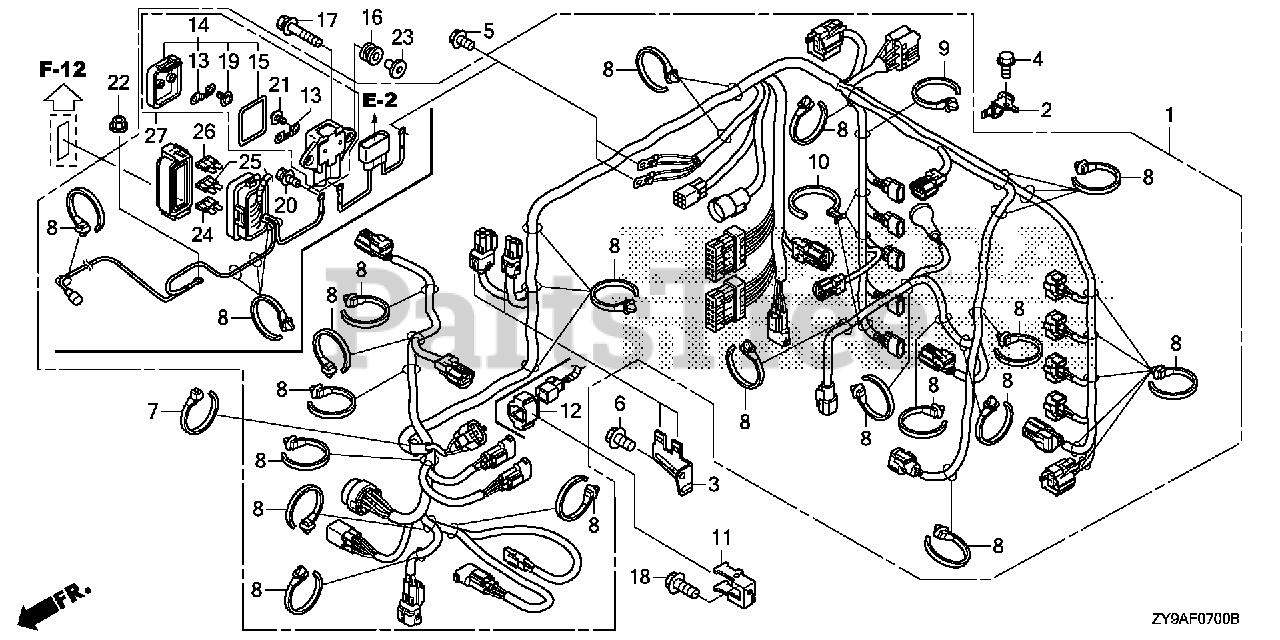

MAIN WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZZ0-H00

WIRE HARNESS ASSY., MAIN

$903.99

$

Usually ships in 3-6 days

0

2

Honda 32101-ZY9-000

BRACKET A, CONNECTOR

$17.99

$

Usually ships in 3-6 days

0

3

Honda 32103-ZY9-000

BRACKET C, CONNECTOR

$7.99

$

Usually ships in 3-6 days

0

4

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

5

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90652-ZY9-003

BAND, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

8

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

9

Honda 91551-SW5-003

CLIP, HARNESS BAND (151MM) (BROWN)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 91558-SJ6-003

STRAP, HARNESS (30) (107.5MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 32104-ZY9-H00

BRACKET, CONNECTOR

$8.99

$

Usually ships in 3-6 days

0

12

Honda 32127-ZZ3-000

SUSPENSION, CONNECTOR

$5.99

$

Usually ships in 3-6 days

0

13

Honda 38201-ZY9-003

FUSE (70A)

$9.99

$

Usually ships in 3-6 days

0

14

Honda 38216-ZY9-003

COVER ASSY., FUSE (70A)

$49.99

$

Usually ships in 3-6 days

0

15

Honda 38233-ZY9-000

GASKET, FUSE BOX COVER

$7.49

$

Usually ships in 3-6 days

0

16

Honda 38551-ZW1-000

GROMMET, RELAY

$9.49

$

Usually ships in 3-6 days

0

17

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

19

Honda 90105-ZW5-003

SCREW-WASHER (3X7)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90106-ZW5-000

BOLT-WASHER (5X9)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90153-SB2-003

SCREW-WASHER (5X10)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 98200-41000

FUSE, MINI (10A)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, Qty 8

0

27

Honda 38210-ZY9-003

BOX ASSY., FUSE (70A)

$86.99

$

Usually ships in 3-6 days

0
